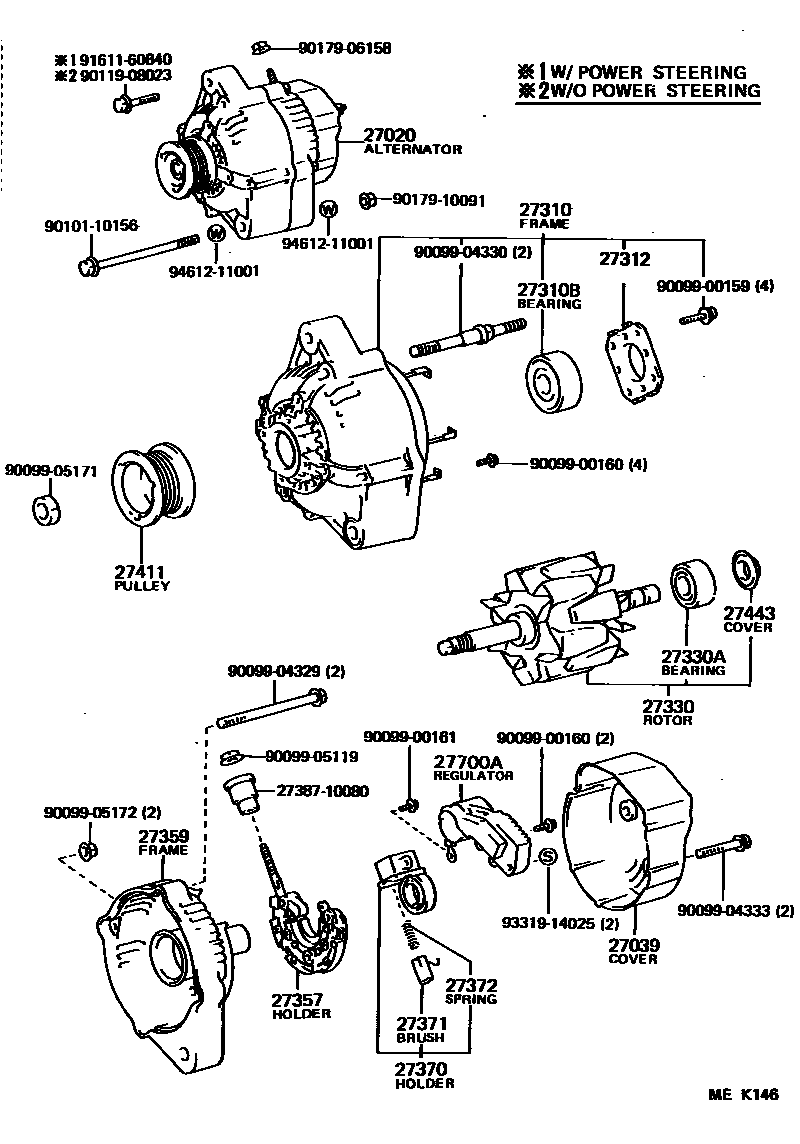

ALTERNATOR

0001 112V 45A 0002 112V 55A,70A 0004 112V 55A 0005 112V 60A 0007 112V 80A

27020ALTERNATOR ASSY

main27020-54160i2L..LH5#,6#,71..(CD,DX,GL)..(03S,05S,06S)198708-198908

main27020-54320i2L..LH66..SGL;2L..LH71..09S,10S,15S;2L..LH6#..DX..(08S,10S,15S);2L..LH51..(CTM,DX,SGL)..(05S,09S);2L..LH61..V4D..(4FC,5H)..(05S,09S)198708-198908

main27020-54330i2L..LH61,71..10S; 2LT..LH51;2L..LH51..08S198708-198908

main27060-72101i3YU..YH51,57,61198708-198710

main27060-72111i2Y..YH50..5H198708-198908

main27060-72150i2Y..YH50..V4D..06S; 2Y..YH50..V5D..06S198708-198804

main27060-72170i3YU..YH51,57,61198710-198808

main27060-72171i3YU..YH51,57,61198808-198908

27039COVER, ALTERNATOR REAR END

main27039-72010i3YU..YH51,57,61198708-198908

main27039-72110i2Y..YH50..V4D..06S; 2Y..YH50..V5D..06S198708-198804

main27039-72150i2Y..YH50..5H198708-198908

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43051i3YU..YH51,57,61198708-198908

main27310-54130i2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..03S,05S,06S,09S,10S,15S198708-198908

main27310-54300i2L..LH61,71..10S; 2LT..LH51;2L..LH51..08S198708-198908

main27310-72150i2Y..YH50..5H198708-198908

main27310-72180i2Y..YH50..V4D..06S; 2Y..YH50..V5D..06S198708-198804

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10120i2L..LH61,71..10S; 2LT..LH51;2L..LH51..08S198708-198908

main90099-10137i2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..03S,05S,06S,09S,10S,15S198708-198908

main90099-10159i2Y..YH50..V4D..06S; 2Y..YH50..V5D..06S198708-198804

main90099-10170i2Y..YH50..5H198708-198908

27312PLATE, RETAINER

main27312-56070i2L..LH61,71..10S; 2LT..LH51;2L..LH51..08S198708-198908

main27312-57060i2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..03S,05S,06S,09S,10S,15S198708-198908

main27312-72100i2Y..YH50..V4D..06S; 2Y..YH50..V5D..06S198708-198804

main27312-72120i2Y..YH50..5H198708-198908

27330ROTOR ASSY, ALTERNATOR

main27330-10021i2Y..YH50..V4D..06S; 2Y..YH50..V5D..06S198708-198804

main27330-54330i2L..LH61,71..10S; 2LT..LH51;2L..LH51..08S198708-198908

main27330-64010i2L..LH5#,6#,71..(CD,DX,GL)..(03S,05S,06S)198708-198908

main27330-64170i2L..LH66..SGL;2L..LH71..09S,10S,15S;2L..LH6#..DX..(08S,10S,15S);2L..LH51..(CTM,DX,SGL)..(05S,09S);2L..LH61..V4D..(4FC,5H)..(05S,09S)198708-198908

main27330-72101i3YU..YH51,57,61198708-198908

main27330-72150i2Y..YH50..5H198708-198908

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2Y..YH50..V4D..06S; 2Y..YH50..V5D..06S198708-198804

main90099-10154i2Y..YH50..5H198708-198908

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i3YU..YH51,57,61198708-198908

main27357-63040i3Y,3YJ..YH52,6#,71;2Y,3Y,3YJ..YH50,51,71..05S,15S198708-198908

main27357-64060i2L..LH5#,6#,71..(CD,DX,GL)..(03S,05S,06S)198708-198908

main27357-72150i2Y..YH50..5H198708-198908

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16011i3YU..YH51,57,61198708-198908

main27359-16081i2Y..YH50..V4D..06S; 2Y..YH50..V5D..06S198708-198804

main27359-72150i2Y..YH50..5H198708-198908

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-54250i2L..LH5#,6#,71..(CD,DX,GL)..(03S,05S,06S)198708-198908

main27370-63021i2Y,3Y#..YH5#,6#,71198708-198908

27371BRUSH, ALTERNATOR

main27371-56070×2i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main27371-63020×2i2Y,3Y#..YH5#,6#,71198708-198908

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main27372-72100×2i2Y,3Y#..YH5#,6#,71198708-198908

27411PULLEY, ALTERNATOR

main27411-16180i3YU..YH51,57,61198708-198808

main27411-16211i3YU..YH51,57,61198808-198908

main27411-54170i2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..03S,05S,06S,09S,10S,15S198708-198908

main27411-54300i2L..LH61,71..10S; 2LT..LH51;2L..LH51..08S198708-198908

main27411-72110i2Y..YH50..V4D..06S; 2Y..YH50..V5D..06S198708-198804

main27411-72120i2Y..YH50..5H198708-198908

27443COVER, ALTERNATOR BEARING

main27443-63020i2Y,3Y#..YH5#,6#,71198708-198908

27700AREGULATOR ASSY, GENERATOR

main27700-10050i2Y..YH50..5H198708-198812

main27700-10080i2Y..YH50..5H198812-198908

main27700-13040i2L..LH5#,6#,71..(CD,DX,GL)..(03S,05S,06S)198708-198908

main27700-63021i2Y..YH50..V4D..06S198804-198812

main27700-64040i2L..LH66..SGL;2L..LH71..09S,10S,15S;2L..LH6#..DX..(08S,10S,15S);2L..LH61..V4D..(4FC,5H)..(05S,09S);2L#..LH51..(CTM,DX,SCL,SCM,SGL)..(05S,07S,08S,09S)198708-198908

main27700-70030i3YU..YH51,57,61198710-198812

2738710080INSULATOR, TERMINAL

main27387-10080

9009900159

main90099-00159

9009900160

main90099-00160

9009900161

main90099-00161

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110156

main90101-10156

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9161160840

main91611-60840

9331914025

main93319-14025

9461211001

main94612-11001

32 parts on this diagram · 5 diagrams in section
