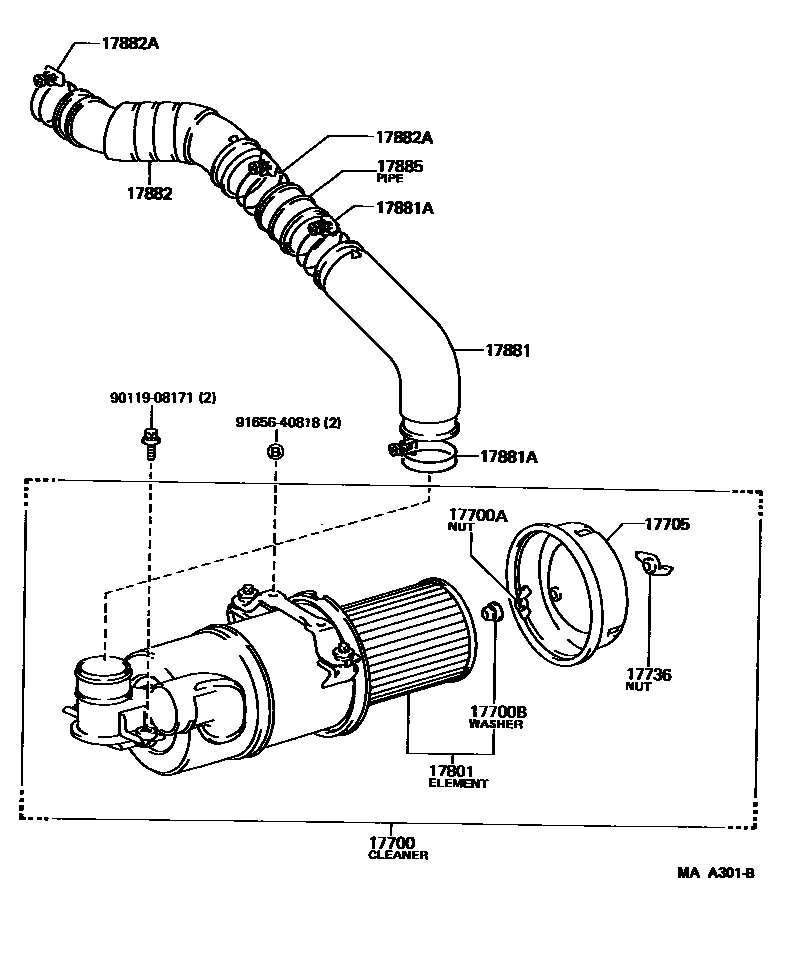

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-54220i2L#..LH51,61,71..WG; 2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S)..ST198708-198908

main17700-54240i2L..LH61..WT198708-198908

main17700-54460i2L#..LH51,61,71..WG198708-198908

main17700-72020i2Y..YH50..06S;3Y..YH61..SRF..V4D..DX..ST198708-198808

main17700-72030i2Y,3Y#..YH5#,6#,71..ST198708-198908

main17700-73030i3Y..YH61..WT198708-198908

17700ANUT, WING(FOR AIR CLEANER)

main94271-00800i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S; 2Y,3Y#..YH5#,6#,71198708-198908

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08024i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S; 2Y,3Y#..YH5#,6#,71198708-198908

17705CAP SUB-ASSY, AIR CLEANER

main17705-54290i2L#..LH51,61,71..WG; 2L..LH61..WT; 2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S)..ST198708-198908

main17705-72020i2L#..LH51,61,71..WG; 2Y,3Y#..YH5#,6#,71198708-198908

17736NUT, AIR CLEANER CASE

main90175-06003i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S; 2Y,3Y#..YH5#,6#,71198708-198908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64030i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main17801-72010i2Y,3Y#..YH5#,6#,71198708-198908

17881HOSE, AIR CLEANER, NO.1

main17349-54030i2LT..LH51198708-198908

main17881-54170i2L..LH66..05S;2L..LH5#,61,71..ST;2L..LH66..(DX,SGL)..08S; 2LT..LH51198708-198908

main17881-54180i2L..LH61..WT198708-198908

main17881-72010i2Y,3Y#..YH5#,6#,71..ST198708-198908

main17881-73010i3Y..YH61..WT198708-198908

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-65004i2LT..LH51198708-198908

PIPE SIDE

main90460-70001i2LT..LH51198708-198908

FLANGE SIDE

main96111-10780×2i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S; 2Y,3Y#..YH5#,6#,71198708-198908

17882HOSE, AIR CLEANER, NO.2

main17881-74040i2Y,3Y#..YH50,51,52,6#,71198708-198710

main17882-54120i2L..LH51..4HC..09S;2L..LH51,61,71..COM,V198708-198908

main17882-54190i2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S198708-198908

main17882-54210i2L..LH51,61,71..WG..MTM198708-198908

main17882-54230i2LT..LH51198708-198908

main17882-72040i2Y,3Y#..YH50,51,52,6#,71198710-198908

main17882-73010i3YU..YH57198708-198710

main17882-73011i3YU..YH57198710-198908

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-47036×2i2Y,3Y#..YH5#,6#,71198708-198908

main90460-75001i2LT..LH51198708-198908

CONNECTOR SIDE

main96111-10690i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

INTAKE MANIFOLD SIDE

main96111-10780i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

PIPE SIDE

17885PIPE, AIR CLEANER

main17885-54080i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

9011908171

main90119-08171

9165640818

main91656-40818

13 parts on this diagram · 4 diagrams in section
