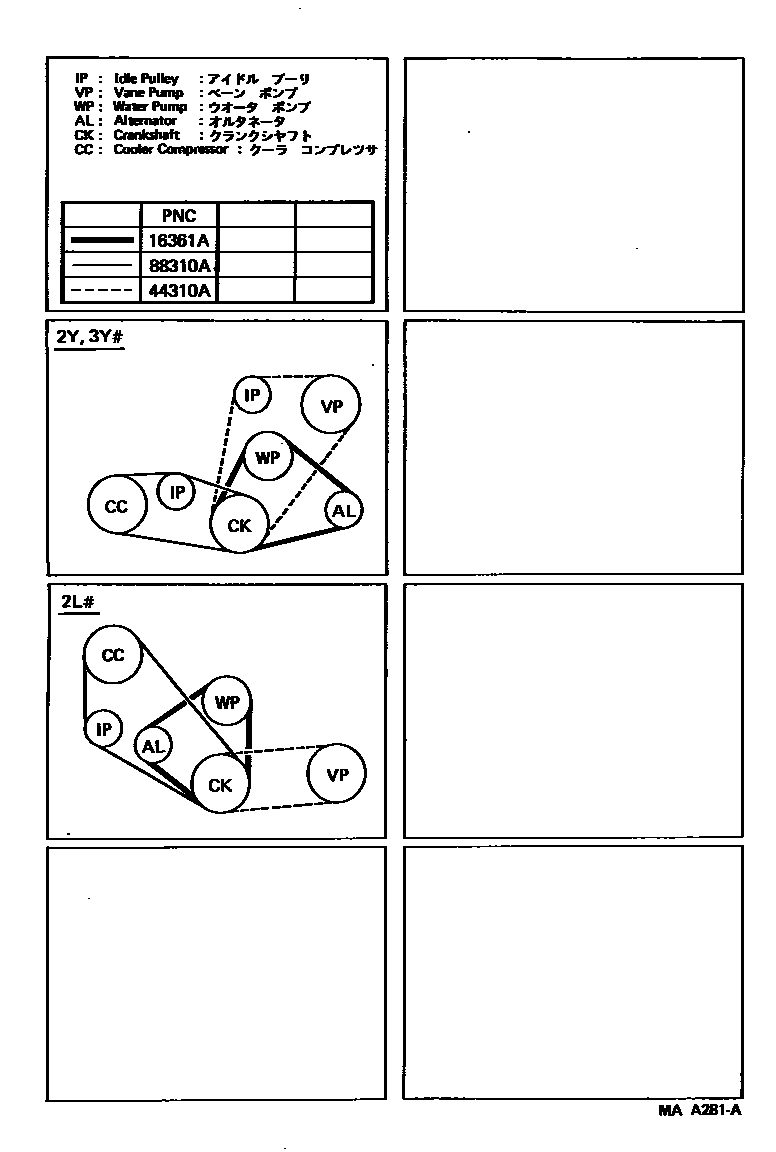

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02119i2LT..LH51;2L..LH51..08S198708-198908

main90916-02132i2L..LH51,61,71..CD,CTM,DX,GL,SGL198708-198908

main90916-02162i2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S198708-198908

main99365-50820i2Y,3Y#..YH5#,6#,71198708-198908

44310ABELT, V(FOR VANE PUMP)

main99332-00830iLH51,61,71..CTM,DX,GL,SCL,SCM,SGL; LH51,61..03S198708-198908

main99332-00885iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main99332-01040iYH50..03S; YH50..05S,06S198708-198908

main99332-01055iYH51,57,61,71..CTM,DX,GL,SCL,SCM; YH52,6#..03S198708-198908

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00905iYH50..06S;YH61..SRF..V4D..DX..ST; YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST198708-198908

main99322-00930iYH51..07S; YH51..MRF..08S; YH61..10S;YH61..GL..09S;YH51,57,71..(HRF,SRF)..(08S,09S,15S); YH61..DX..09S198708-198908

main99322-01250iLH51,61,71..(CD,DX,GL)..(03S,05S,06S); LH51..07S; LH51..MRF..08S198708-198908

main99332-01240iLH66..DX..08S; LH66..SGL198708-198804

3 parts on this diagram · 1 diagram in section
