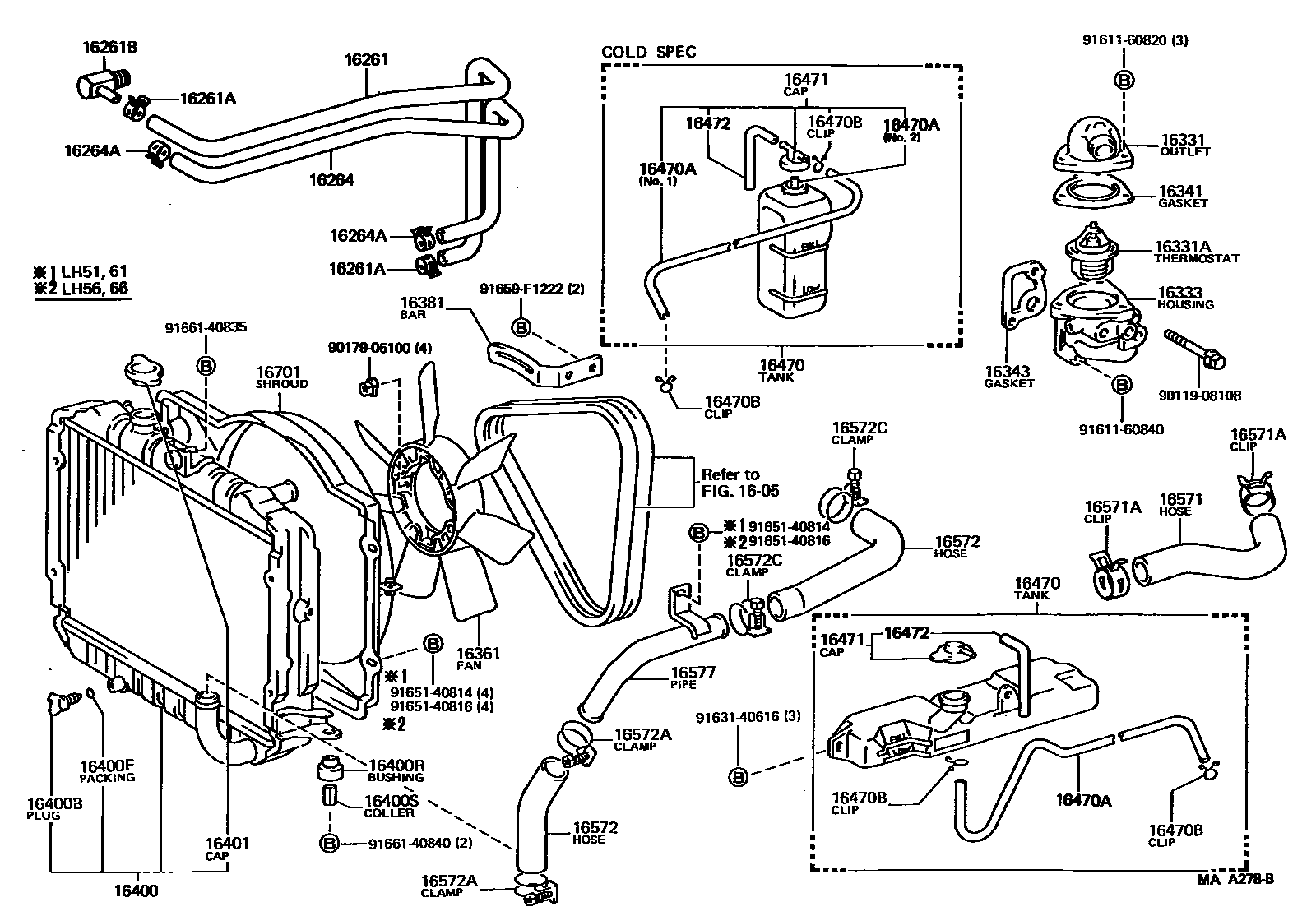

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

16261HOSE, WATER BY-PASS

main16261-54060i2LT..LH51198708-198908

main16261-54070i2L..LH51,61,71..WG..MTM198708-198908

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15004i2LT..LH51;2L..LH51,61,71..WG..MTM198708-198908

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-52015i2LT..LH51;2L..LH51,61,71..WG..MTM198708-198908

16264HOSE, WATER BY-PASS, NO.2

main16264-54040i2LT..LH51198708-198908

main16264-54060i2L..LH51,61,71..WG..MTM198708-198908

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15004i2LT..LH51;2L..LH51,61,71..WG..MTM198708-198908

16331OUTLET, WATER

main16331-54030i2L..LH66..05S;2L..LH5#,61,71;2L#..LH51,66..5F..(DX,SCM,SGL)..08S198708-198908

main16331-54040i2L..LH51,6#..SGL;2L..LH66..DX..08S198708-198908

main16331-54040i2L..LH51,6#..SGL;2L..LH66..DX..08S198708-198908

main16331-71010i2Y,3Y#..YH5#,6#,71198708-198908

16331ATHERMOSTAT

main90916-03062i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198805

main90916-03069i2Y,3Y#..YH5#,6#,71198708-198908

main90916-03072i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198805-198908

16333HOUSING, WATER OUTLET

main16333-54050i2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S);2L..LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)198708-198908

main16333-54070i2L..LH61,71..10S;2L#..LH51..WG..MTM198708-198908

main16333-54090i2LT..LH51..ATM198708-198908

16341GASKET, WATER OUTLET

main16341-54011i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

main16341-54030i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908

main16341-71010i2Y,3Y#..YH5#,6#,71198708-198908

16343GASKET, WATER OUTLET HOUSING

main16343-54011i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

16361FAN

main16361-38010i2Y,3Y#..YH5#,6#,71198708-198908

main16361-54020i2L..LH66..05S;2L..LH66..(DX,SGL)..08S;2L#..LH5#,61,71..CD,CTM,DX,GL,SCL,SCM198708-198908

NO.1

main16361-54030i2LT..LH51..ATM198708-198908

NO.2

16381BAR, FAN BELT ADJUSTING

main16381-54011i2L..LH51,61,71..CD,CTM,DX,GL198708-198908

main16381-54030i2LT..LH51;2L..LH51..08S198708-198908

main16381-54040i2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S198708-198908

main16381-54050i2L..LH66..V4D..DX..05S198708-198908

main16381-73011i2Y,3Y#..YH5#,6#,71198708-198908

16400RADIATOR ASSY

main16400-54220i2L..LH51..4HC..09S198708-198808

main16400-54280i2L#..LH51,61,71..MTM198708-198908

main16400-54370i2L..LH51,61..VSG..ATM198708-198908

main16400-54520i2LT..LH51..4FC198708-198808

main16400-54521i2LT..LH51..ATM198808-198908

main16400-54550i2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S198708-198908

main16400-72040i2Y..YH50198708-198908

main16400-72050i2Y..YH50..06S198708-198808

main16400-72050i3Y,3YJ..YH52,6#,71..MTM198708-198908

main16400-72060i3Y..YH51,61..ATM198708-198908

main16400-73020i3YU..YH51,61..MTM198708-198908

main16400-73030i3YU..YH51..ATM198708-198908

main16400-73340i3YU..YH57198708-198908

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i3Y,3YJ..YH52,6#,71..MTM198708-198908

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

16400RBUSHING(FOR RADIATOR)

main90540-10019i2Y,3Y#..YH5#,6#,71198708-198908

16400SCOLLAR(FOR RADIATOR)

main90440-11042i2Y,3Y#..YH5#,6#,71198708-198908

16401CAP SUB-ASSY, RADIATOR

main16401-71010i2Y,3Y#..YH5#,6#,71198708-198908

16470TANK ASSY, RADIATOR RESERVE

main16470-54030i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main16470-54040i2Y,3Y#..YH5#,6#,71198708-198908

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i2Y,3Y#..YH5#,6#,71198708-198908

main90099-33534i2Y,3Y#..YH5#,6#,71198708-198908

main90099-33534i2Y,3Y#..YH5#,6#,71198708-198908

main90445-12078i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

16471CAP SUB-ASSY, RESERVE TANK

main16405-54040i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main16405-54050i2Y,3Y#..YH5#,6#,71198708-198908

16472HOSE, BREATHER

main85338-30010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main90445-12078i2Y,3Y#..YH5#,6#,71198708-198908

16571HOSE, RADIATOR, INLET

main16571-54120i2LT..LH51..5F;2L..LH51,61,71198708-198908

main16571-54160i2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S198708-198908

main16571-54230i2LT..LH51..ATM198708-198908

main16571-72020i2Y,3Y#..YH50,51,52,6#,71198708-198908

main16571-73070i3YU..YH57198708-198908

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i2Y,3Y#..YH5#,6#,71198708-198908

16572HOSE, RADIATOR, OUTLET

main16572-54090i2L#..LH51,61,71198708-198908

WATER PUMP SIDE

main16572-54140i2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S198708-198908

WATER PUMP SIDE

main16572-72020i2Y,3Y#..YH50,51,52,6#,71198708-198908

WATER PUMP SIDE

main16572-73060i3YU..YH57198708-198908

WATER PUMP SIDE

main16573-54030i2L#..LH51,61,71198708-198908

main16573-54050i3YU..YH57198708-198908

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i2Y,3Y#..YH5#,6#,71198708-198908

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90460-47036i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

PIPE SIDE

main96111-10440i2Y,3Y#..YH5#,6#,71198708-198908

main96111-10500i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

WATER PUMP SIDE

16577PIPE, RADIATOR, NO.7

main16577-54060i2L..LH66..05S;2L..LH5#,61,71;2L#..LH51,66..5F..(DX,SCM,SGL)..08S198708-198908

main16577-54070i2LT..LH51..ATM198708-198908

main16577-72010i2Y,3Y#..YH5#,6#,71198708-198908

16701SHROUD SUB-ASSY, FAN

main16701-54100i2L#..LH51,61,71198708-198908

main16701-54140i2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S198708-198908

main16701-72010i2Y,3Y#..YH50,51,52,6#,71198708-198908

main16701-73040i3YU..YH57198708-198908

9011908108

main90119-08108

9017906100

main90179-06100

9161160820

main91611-60820

9161160840

main91611-60840

9163140616

main91631-40616

9165140814

main91651-40814

9165140816

main91651-40816

91659F1222

main91659-F1222

9166140835

main91661-40835

9166140840

main91661-40840

41 parts on this diagram · 4 diagrams in section
