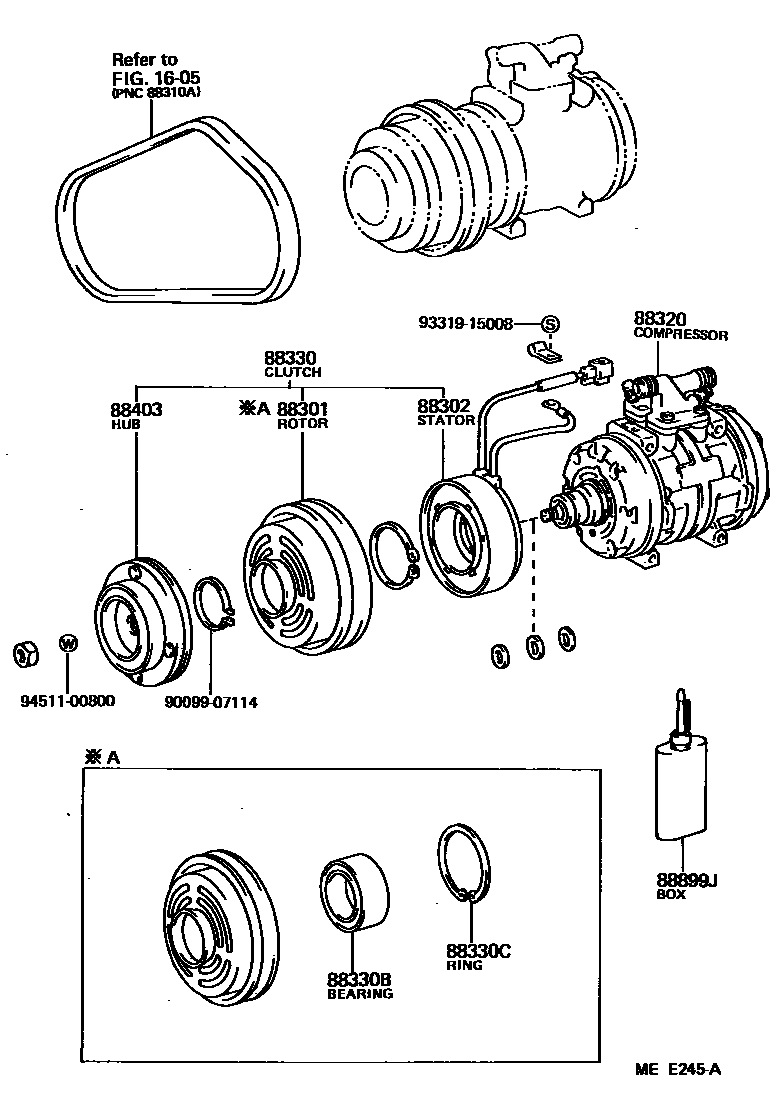

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iLH50,51,60,61,7#; YH5#,6#,71..V198212-198708

W/SINGLE AIR CONDITIONER

main88412-26020iYH51,61,71..07S,08S,09S,10S,15S198212-198708

W/*ODAC

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLH50,51,60,61,7#198212-198708

main88411-30370iYH51,61,71..07S,08S,09S,10S,15S198212-198708

W/*ODAC

main88411-30380iYH5#,6#,71..V198212-198708

W/SINGLE AIR CONDITIONER

88320COMPRESSOR ASSY, COOLER

main88320-26120iLH50,51,60,61,7#..DSL198212-198708

main88320-26140iYH51,61,71..08S,09S,10S,15S198212-198310

W/*ODAC

main88320-26141iYH51,61,71..07S,08S,09S,10S,15S198310-198708

W/*ODAC

main88320-26160iYH50,61,71..V198212-198310

W/SINGLE AIR CONDITIONER

main88320-26161iYH5#,6#,71..V198310-198708

W/SINGLE AIR CONDITIONER

main88320-26200iLH51..TD198508-198708

main88320-26270iLH56198608-198708

88330CLUTCH ASSY, MAGNET

main88410-22080iLH50,51,60,61,7#198212-198708

main88410-26040iYH51,61,71..07S,08S,09S,10S,15S198212-198708

W/*ODAC

main88410-26050iLH56; LH66198608-198708

main88410-30380iYH5#,6#,71..V198212-198708

W/SINGLE AIR CONDITIONER

88330BBEARING, MAGNET CLUTCH

main90099-10133iLH50,51,60,61,7#,YH5#,6#,71198212-198708

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iLH50,51,60,61,7#,YH5#,6#,71198212-198708

W/*ODAC

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iLH50,51,60,61,7#; YH5#,6#,71..V198212-198708

W/SINGLE AIR CONDITIONER

main88403-30280iYH51,61,71..07S,08S,09S,10S,15S198212-198708

W/*ODAC

88899JCASE, OIL

main88899-87011iLH5#,YH51..08S198306-198508

W/COOL BOX

9009907114

main90099-07114

9331915008

main93319-15008

9451100800

main94511-00800

12 parts on this diagram · 2 diagrams in section
