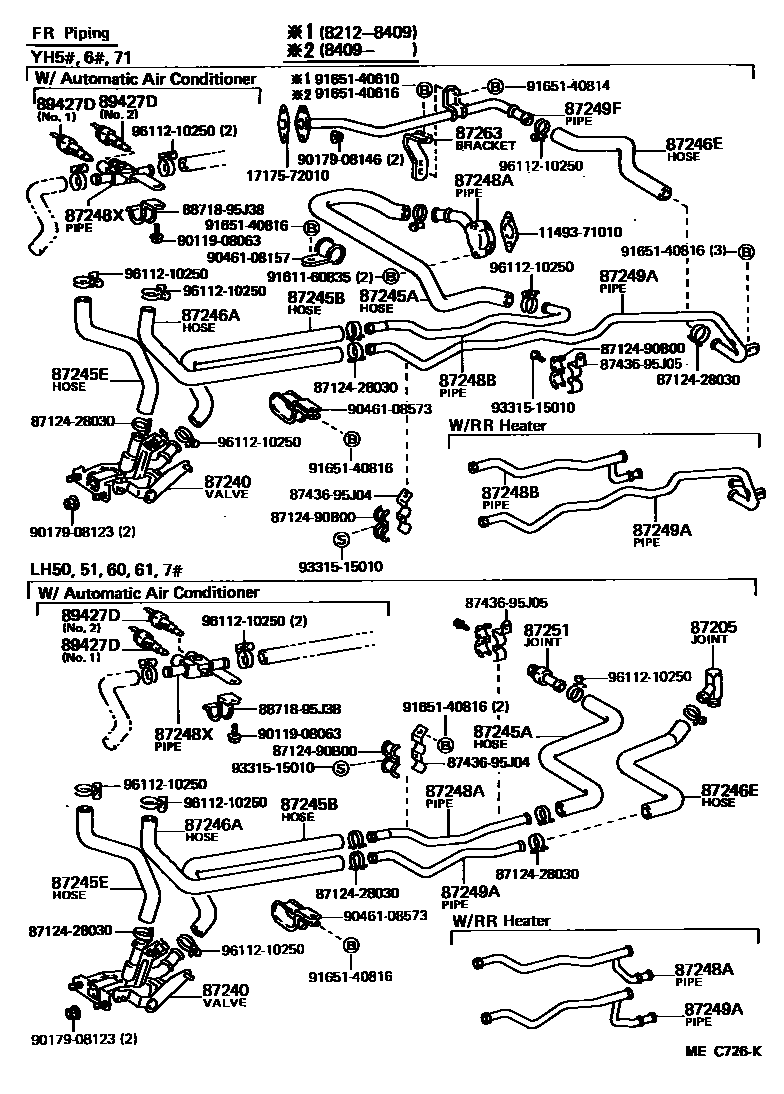

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30200iLH51..TD198508-198708

main87251-30230iLH5#,6#,7#..DSL198212-198708

87240VALVE ASSY, HEATER WATER

main87240-95J02iLH5#,6#,7#,YH5#,6#,71198212-198708

87245HOSE, HEATER WATER, INLET

main99552-30300iLH50,60,70..(COM,WG)..MTM198212-198401

*H,L=240,*CH

87245AHOSE, HEATER WATER, INLET A

main87245-95J10iYH5#,6#,71198212-198708

main87245-95J11iLH50,51,60,61,7#198212-198708

main87245-95J14iLH50,60,70..(COM,WG)..MTM198212-198401

*CH

main87245-95J31iLH56,66198608-198708

87245BHOSE, HEATER WATER, INLET B

main87245-95J08iLH5#,6#,7#,YH5#,6#,71198212-198512

main87245-95J27iLH51,61,71,YH5#,6#,71198512-198708

main87245-95J29iLH56,66198608-198708

main99552-30200iLH50,60,70..(COM,WG)..MTM198212-198401

L=200,*CH

87245EHOSE, HEATER WATER, INLET E

main87245-95J04iLH5#,6#,7#,YH5#,6#,71198212-198707

main87245-95J42iLH51,6#,71,YH51,61,71198707

87246AHOSE, HEATER WATER, OUTLET A

main87245-95J06iLH5#,6#,7#,YH5#,6#,71198212-198512

main87245-95J26iLH51,61,71,YH5#,6#,71198512-198708

main87245-95J28iLH56,66198608-198708

87246EHOSE, HEATER WATER, OUTLET E

main87245-95J12iYH5#,6#,71198212-198708

main87245-95J13iLH50,51,60,61,7#198212-198708

main87245-95J32iLH56,66198608-198708

87248APIPE, HEATER WATER INLET, A

main87208-28010iYH5#,6#,71198212-198708

main87248-95J14iLH7#..DLX;LH5#,6#..CTD,DLX,GL198212-198512

main87248-95J15iLH61..V5D..06S198401-198508

W/RR HEATER

main87248-95J24iLH50,60,70..(COM,WG)..MTM198212-198401

*CH

main87248-95J58iLH51,61,71..COM,WG; LH51..V4D..(05S,06S); LH61,71..VSG..(DLX,GL)198512-198708

W/RR HEATER

main87248-95J62iLH71..DLX;LH51,61..CTD,DLX,GL198512-198708

87248BPIPE, HEATER WATER INLET, B

main87208-95J09iLH50,60,70..(COM,WG)..MTM198212-198401

*CH

main87248-95J12iYH5#,6#,71..CTD,DLX,GL,STD198212-198512

main87248-95J13iYH50..V4D..(05S,06S); YH61,71..VSG..(DLX,GL); YH62198508-198512

W/RR HEATER

main87248-95J20iLH5#,6#,7#..COM,WG; LH5#,6#,7#..V4D..(06S,09S)198212-198508

main87248-95J39iLH61..06S..WT198401-198708

main87248-95J53iLH51,61,71..COM,WG; LH51,61,71..V4D..(DLX,GL)..ST; LH61..V5D..(05S,06S)..ST198508-198601

main87248-95J56iYH50..V4D..(05S,06S); YH51,61,71..COM,WG; YH61,71..VSG..(DLX,GL); YH62198512-198708

W/RR HEATER

main87248-95J60iYH5#,6#,71..CTD,DLX,GL198512-198708

main87248-95J66iLH51,61,71..COM,WG; LH51,61,71..V4D..(DLX,GL)..ST; LH61..V5D..(05S,06S)..ST198601-198708

87248XPIPE, HEATER WATER

main87248-95J54iLH51,YH51..07S198508-198708

W/*AAC

87249APIPE, HEATER WATER OUTLET, A

main87248-95J08iYH5#,6#,71..CTD,DLX,GL,STD198212-198512

main87248-95J09iYH52,62; YH61..V5D..06S198401-198508

W/RR HEATER

main87248-95J10iLH7#..DLX;LH5#,6#..CTD,DLX,GL198212-198512

main87248-95J11iLH5#,6#,7#..COM,WG; LH5#,6#,7#..V4D..(06S,09S)198212-198508

W/RR HEATER

main87248-95J50iYH50,61,71..V4D..(DLX,GL); YH51,61,71..COM,WG; YH61..V5D..(05S,06S); YH62198508-198512

W/RR HEATER

main87248-95J51iLH51,61,71..COM,WG; LH51..V4D..(05S,06S); LH61,71..VSG..(DLX,GL)198508-198512

W/RR HEATER

main87248-95J55iYH50,61,71..V4D..(DLX,GL); YH51,61,71..COM,WG; YH61..V5D..(05S,06S); YH62198512-198708

W/RR HEATER

main87248-95J57iLH51,61,71..COM,WG; LH51..V4D..(05S,06S); LH61,71..VSG..(DLX,GL)198512-198708

W/RR HEATER

main87248-95J59iYH5#,6#,71..CTD,DLX,GL198512-198708

main87248-95J61iLH71..DLX;LH51,61..CTD,DLX,GL198512-198708

87249FPIPE, HEATER WATER OUTLET, F

main87208-28020iYH5#,6#,71198212-198502

main87208-28021iYH5#,6#,71198502-198708

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30200iLH5#,6#,7#..DSL198212-198708

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-28010iYH5#,6#,71198212-198409

main87263-28011iYH5#,6#,71198409-198708

89427DSWITCH, TEMPERATURE

main83430-30010iLH51,YH51..07S198508-198708

W/*AAC,NO.1

main83430-30020iLH51,YH51..07S198508-198708

W/*AAC,NO.2

main89427-12051iYH51,61,71..COM,WG; YH52,62,71..VSG;YH50,61..V4D..(05S,06S,09S)198212-198708

COLD SPEC

1149371010GASKET, WATER SEAL PLATE

main11493-71010

1717572010GASKET, INTAKE MANIFOLD INLET

main17175-72010

8712428030CLAMP, HEATER

main87124-28030

8712490B00CLAMP, HEATER

main87124-90B00

8743695J04

main87436-95J04

8743695J05

main87436-95J05

8871895J38PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95J38

9011908063

main90119-08063

9017908123

main90179-08123

9017908146

main90179-08146

9046108157

main90461-08157

9046108573

main90461-08573

9161160835

main91611-60835

9165140610

main91651-40610

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9331515010

main93315-15010

9611210250

main96112-10250

35 parts on this diagram · 20 diagrams in section
