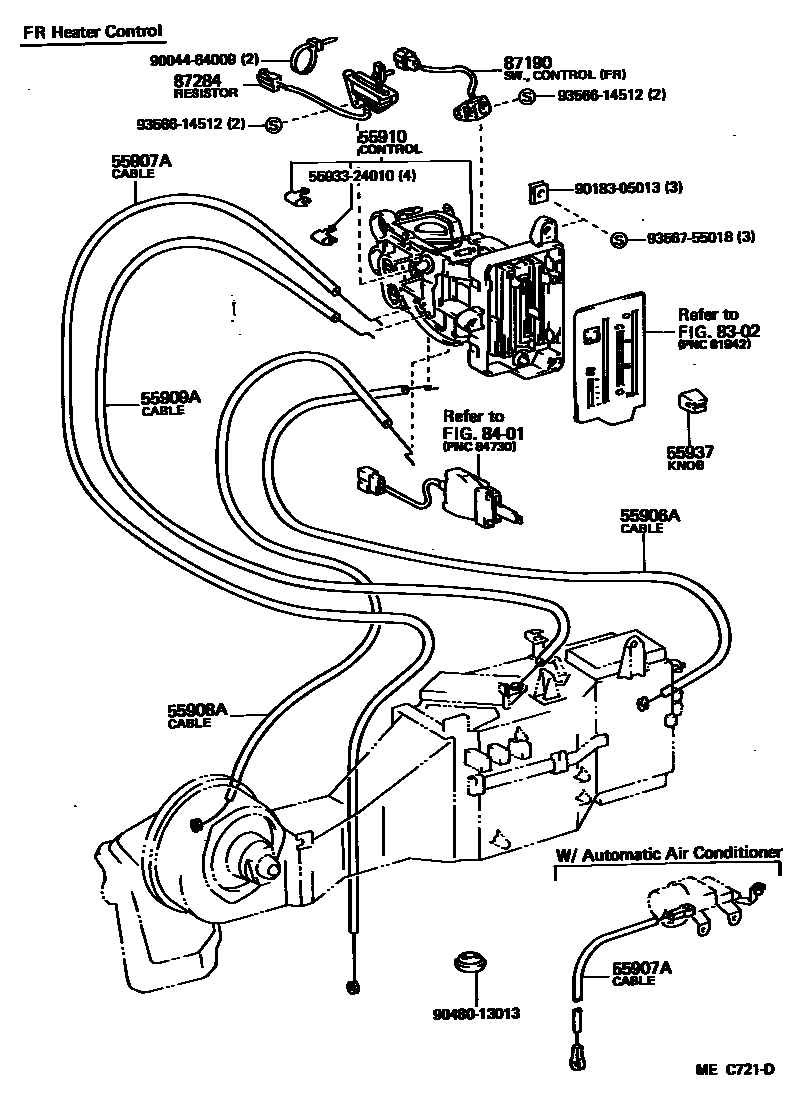

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD198212-198708

main55906-95J01iLH51,YH51..07S198508-198708

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

FR HEATER

main55907-95J03iLH51,YH51..07S198508-198708

FR HEATER,W/*AAC

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD198212-198708

FR HEATER

main55910-95J04iLH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST; LH50,51,60,61,7#,YH51,61,71..(COM,WG)..(09S,10S,15S)198212-198708

RR HEATER

main55910-95J05iLH50,51,YH51..07S,08S198212-198708

RR HEATER

main55910-95J06iLH50,60,70..(COM,WG)..MTM198212-198401

FR HEATER,W/*CH

main55910-95J15iLH51,YH51..07S198508-198708

FR HEATER

55937KNOB, HEATER CONTROL LEVER

main55905-12070×3iLH5#,6#,71,YH5#,6#,71; LH6#,YH61..V5D..(05S,06S)..ST198401-198708

FR,DEF-VENT,WARM-COOL,HI-OFF; RR HEATER,NO.2

main55905-95703iLH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST; LH50,51,60,61,7#,YH51,61,71..(COM,WG)..(09S,10S,15S)198212-198708

RR HEATER,NO.1

main55905-95J00iLH50,51,YH51..07S,08S198212-198708

RR HEATER

main55905-95J01iLH5#,6#,71,YH5#,6#,71198401-198708

FR HEATER,FRESH-RECIRC

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87190SWITCH ASSY, TEMPERATURE CONTROL

main84660-95J03iLH51,YH51..07S198508-198708

FR,W/*AAC

main84660-95J05iLH51,YH51..07S198508-198708

RR,W/*AAC

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95J01iLH51,YH51..07S198508-198708

W/*AAC

5593324010GUIDE, LEVER, NO.2

main55933-24010

9004464009

main90044-64009

9018305013

main90183-05013

9048013013

main90480-13013

9356614512

main93566-14512

9356755018

main93567-55018

16 parts on this diagram · 10 diagrams in section
