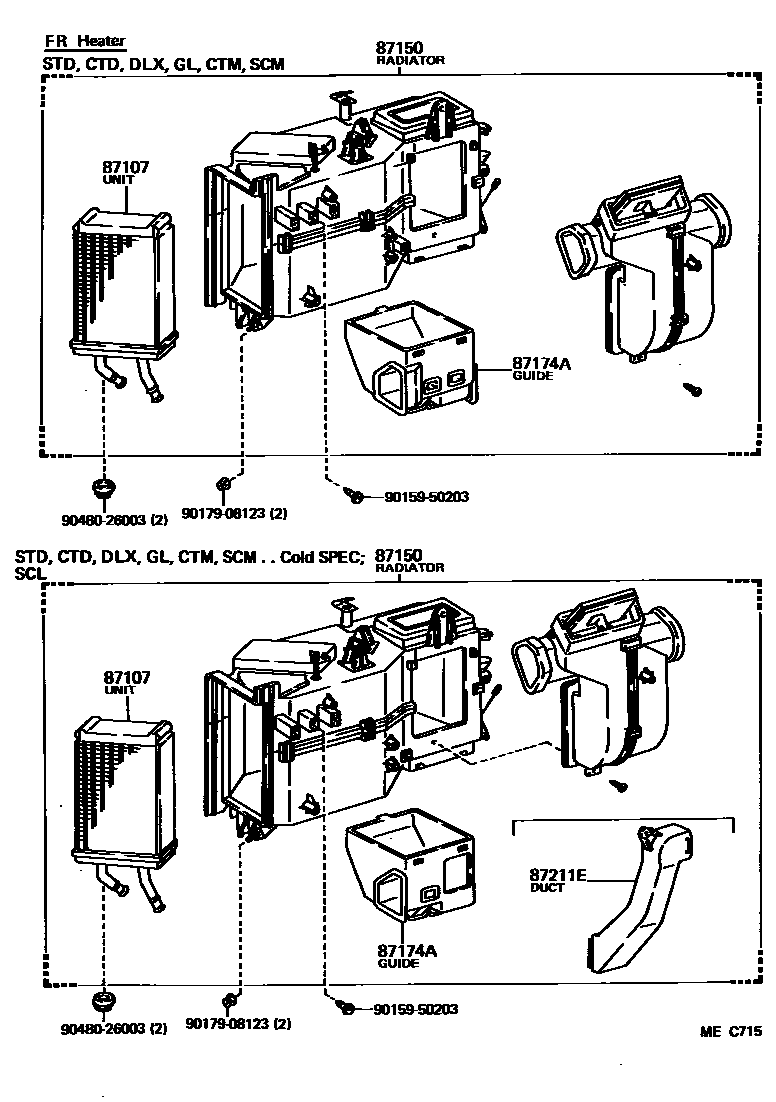

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD198212-198708

main87107-95J01iLH50,60,70,YH5#,61,71198212-198309

COLD SPEC

main87107-95J06iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD198309-198708

COLD SPEC

87150RADIATOR ASSY, HEATER

main87150-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD198212-198708

main87150-95J01iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD198212-198708

COLD SPEC

87174AGUIDE, AIR HEATER

main87174-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD198212-198708

main87174-95J01iLH51,YH51..07S198508-198708

87211EDUCT, AIR

main87211-95J02iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD198212-198706

COLD SPEC

main87211-95J11iLH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,SCM198706-198708

COLD SPEC

9015950203

main90159-50203

9017908123

main90179-08123

9048026003

main90480-26003

7 parts on this diagram · 10 diagrams in section
