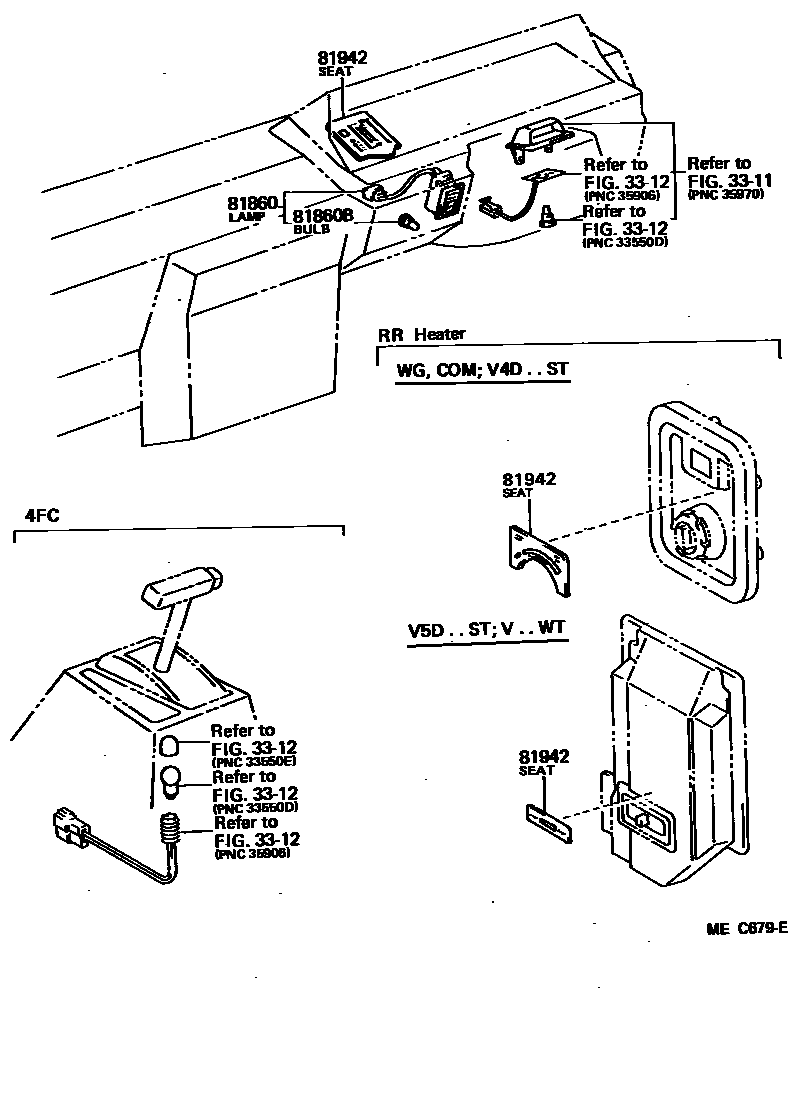

INDICATOR

3311CONTROL SHAFT & CROSSSHAFT

→ Go to FIG 33-11

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-20040iLH51,61,YH51,61..ATM198401-198708

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110×2iLH51,61,YH51,61..ATM198401-198708

81942SHEET, HEATER CONTROL NAME

main55519-95J00iLH50,60,70,YH5#,61,71198212-198401

FR HEATER

main55519-95J04iLH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST; LH50,51,60,61,7#,YH51,61,71..COM,WG198212-198708

RR HEATER

main55519-95J05iLH6#,YH61..V5D..(05S,06S)..ST; LH61,YH61..06S..WT198401-198708

RR HEATER

main55519-95J06iLH5#,61,71,YH5#,6#,71198401-198508

FR HEATER

main55519-95J10iLH5#,6#,71,YH5#,6#,71198508-198708

FR HEATER

main55519-95J14iLH51,YH51..07S198508-198708

FR HEATER,W/*AAC

main55519-95J15iLH51,YH51..07S198508-198708

RR HEATER,W/*AAC

5 parts on this diagram · 1 diagram in section
