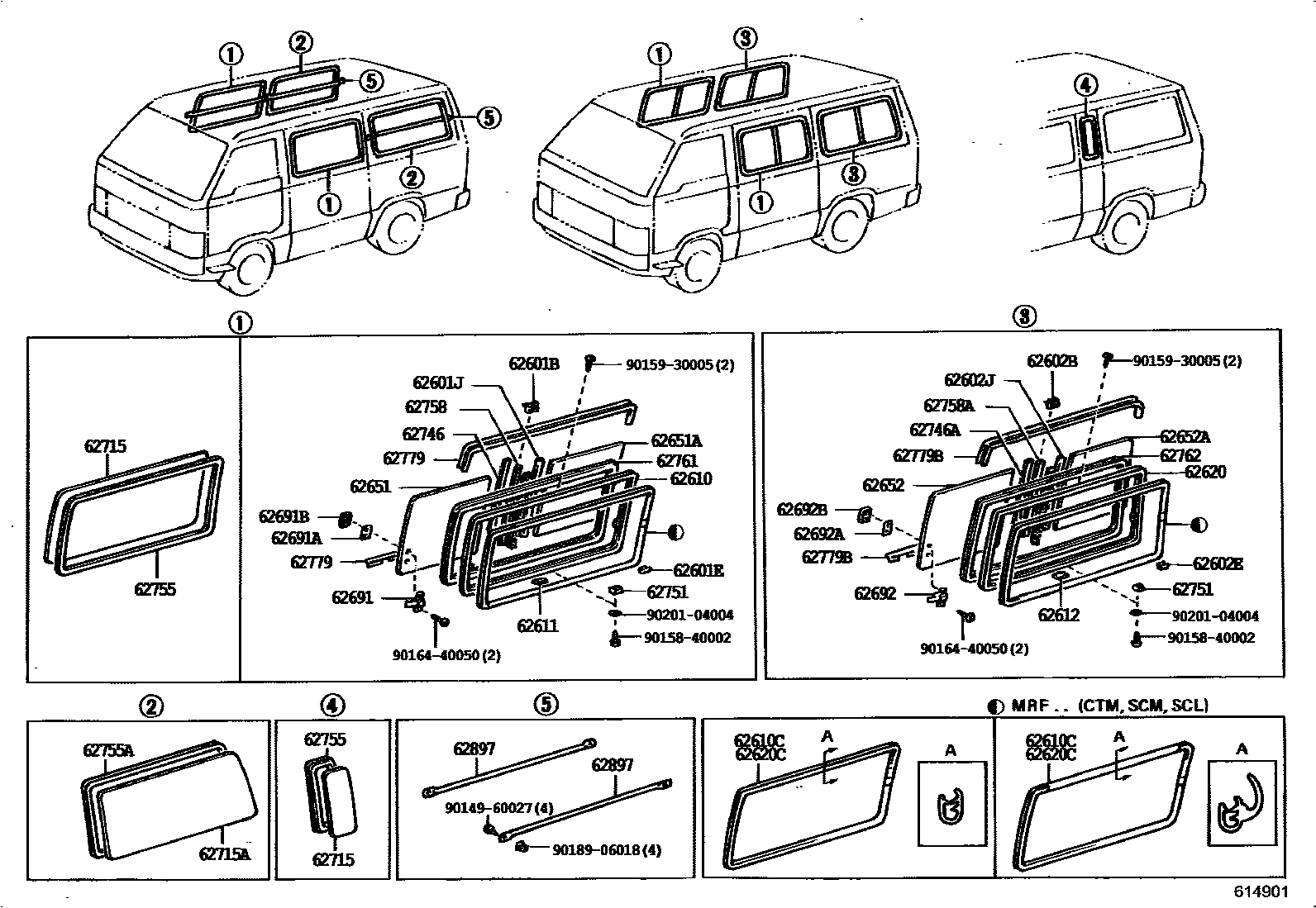

SIDE WINDOW

62601BGUIDE, SIDE WINDOW INNER SASH, NO.1

main62729-95J00×2iLH50,51,60,61,7#,YH50,51,61,71..05S,06S; LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198708

62601EPIECE, SIDE WINDSHIELD, NO.1

main62229-95J00×4iLH50,51,60,61,7#,YH50,51,61,71..05S,06S; LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198708

62601JWEATHERSTRIP, SIDE WINDOW CENTER, NO.1

main62254-95J00iLH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S); LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198701

RH

main62344-95J00×2iLH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S); LH5#,6#,YH50,51,61..V5D..(05S,06S); LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198701

LH

62602BGUIDE, SIDE WINDOW INNER SASH, NO.2

main62729-95J00×2iLH50,51,60,61,7#,YH51,61,71..COM,WG198212-198708

62602EPIECE, SIDE WINDSHIELD, NO.2

main62229-95J00×4iLH50,51,60,61,7#,YH51,61,71..COM,WG198212-198708

62602JWEATHERSTRIP, SIDE WINDOW CENTER, NO.2

main62254-95J00×2iLH50,51,60,61,7#,YH51,61,71..COM,WG198212-198708

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62015-90C00iLH7#,YH71..09S,15S198212-198708

RH

main62015-90C01iLH7#,YH71..06S198212-198708

RH

main62701-95J00iYH61..DLX..10S198303-198410

RH,LIGHT DUTY

main62701-95J01iLH50,51,6#,YH51,61..07S,08S,09S,10S,15S198212-198708

RH

main62702-95J00iYH61..DLX..10S198303-198410

LH,LIGHT DUTY

main62702-95J01iLH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S198212-198708

LH

main62705-95J00iLH50,51,60,61,YH50,51,61..V5D..(05S,06S)198212-198708

RH

62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)

main62375-90C00iLH70,YH71198212-198308

RH

main62375-90C01iLH7#,YH71198308-198708

RH

main62375-95J00-01iYH61..DLX..10S198308-198401

RH,LIGHT DUTY,BLACK,BLACK

main62375-95J00-04iLH5#,YH51..SRF..(CTM,SCM)198212-198508

RH,BLUE GRAY,BLUE

main62375-95J00-06iLH5#,YH51..SRF..(CTM,SCM)198212-198508

RH,BROWN,BROWN

main62375-95J00-14iLH51,YH51..SRF..(CTM,SCM)198508-198708

RH,BLUE,BLUE

main62375-95J00-16iLH51,YH51..SRF..08S198508-198708

RH,BROWN,BROWN

main62375-95J01-04iLH5#,YH51..MRF198212-198508

RH,BLUE GRAY,BLUE

main62375-95J01-06iLH5#,YH51..MRF198212-198508

RH,BROWN,BROWN

main62375-95J01-14iLH51,YH51..MRF..08S198508-198708

RH,BLUE,BLUE

main62375-95J01-16iLH51,YH51..MRF..08S198508-198708

RH,BROWN,BROWN

main62375-95J02iLH50,60,YH50,61..V4D..VSG; LH60..15S198212-198308

RH

main62375-95J05-04iLH51,YH51..MRF..08S198508-198708

RH,W/*PC,BLUE,BLUE

main62375-95J05-06iLH51,YH51..MRF198508-198708

RH,W/*PC,BROWN,BROWN

main62377-95J00-01iYH52,62;LH5#,6#,7#,YH50,51,61,71..(COM,V)..(05S,06S,08S,09S,15S)198308-198708

LH,BLACK,BLACK

main62377-95J00-04iLH5#,YH51..CTM,SCM198212-198508

LH,BLUE GRAY,BLUE

main62377-95J00-06iLH5#,YH51..CTM,SCM198212-198508

LH,BROWN,BROWN

main62377-95J00-14iLH51,YH51..CTM,SCM198508-198708

LH,BLUE,BLUE

main62377-95J00-16iLH51,YH51..07S,08S198508-198708

LH,BROWN,BROWN

main62377-95J03iLH50,60,70,YH50,61,71..(COM,V)..(06S,09S,15S); LH50,60,YH50,61..V5D..06S198212-198308

LH; RH

main62378-95J00-01iLH5#,6#,YH50,51,61..V5D..(05S,06S)198308-198708

RH,BLACK,BLACK

62611SPACER, SIDE WINDOW SUPPORT, NO.1

main62279-95J00×4iLH51,61,71,YH50,51,61,71..05S,06S; LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S; LH51,61,YH50,61..V4D..(05S,06S); YH52,62198503-198708

LWR,RH; UPR,SIDE

main62279-95J02×2iLH51,56,6#,YH50,51,61..V5D..(05S,06S); LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S; LH51,61,YH50,61..V4D..(05S,06S); YH52,62198503-198708

LWR; LWR,LH

main62779-95700×8iYH61..VSG;YH61..10S;LH70,YH5#,71;LH50,60..VSG..03S;LH50,60..06S,08S,09S,10S,15S198212-198311

62612SPACER, SIDE WINDOW SUPPORT, NO.2

main62279-95J00×2iLH50,60,70,YH51,61,71..COM,WG198212-198311

UPR

main62779-95700×8iLH50,60,70,YH51,61,71..COM,WG198212-198311

62620SASH ASSY, SIDE WINDOW OUTER, NO.2 (FOR SLIDE TYPE)

main62703-95J01iLH50,51,YH51..WG198212-198708

RH

main62703-95J03iLH60,61,7#,YH61,71..10S,15S198212-198708

RH

main62704-95J00iLH50,51,YH51..WG198212-198708

LH

main62704-95J02iLH60,61,YH61..10S,15S198212-198708

LH

main62706-90C00iLH7#,YH71..15S198212-198708

LH

62620CCLIP, SIDE WINDOW OUTER SASH, NO.2 (FOR SLIDE TYPE)

main62377-95J00-01iLH50,51,YH51..DLX198212-198708

RH,BLACK,BLACK

main62377-95J00-04iLH5#,YH51..SRF..(CTM,SCM)198212-198508

RH,BLUE GRAY,BLUE

main62377-95J00-06iLH5#,YH51..SRF..(CTM,SCM)198212-198508

RH,BROWN,BROWN

main62377-95J00-14iLH51,YH51..SRF..(CTM,SCM)198508-198708

RH,BLUE,BLUE

main62377-95J00-16iLH51,YH51..SRF..08S198508-198708

RH,BROWN,BROWN

main62377-95J01-04iLH5#,YH51..MRF198212-198508

RH,BLUE GRAY,BLUE

main62377-95J01-06iLH5#,YH51..MRF198212-198508

RH,BROWN,BROWN

main62377-95J01-14iLH51,YH51..MRF..08S198508-198708

RH,BLUE,BLUE

main62377-95J01-16iLH51,YH51..MRF..08S198508-198708

RH,BROWN,BROWN

main62377-95J02iLH60,61,7#,YH71..15S198308-198708

RH

main62377-95J04×2iLH60..15S;LH70,YH71198212-198308

main62377-95J05-04iLH51,YH51..MRF..08S198508-198708

RH,W/*PC,BLUE,BLUE

main62377-95J05-06iLH51,YH51..MRF198508-198708

RH,W/*PC,BROWN,BROWN

main62378-95J00-01iLH50,51,YH51..DLX198212-198708

LH,BLACK,BLACK

main62378-95J00-04iLH5#,YH51..SRF..(CTM,SCM)198212-198508

LH,BLUE GRAY,BLUE

main62378-95J00-06iLH5#,YH51..SRF..(CTM,SCM)198212-198508

LH,BROWN,BROWN

main62378-95J00-14iLH51,YH51..SRF..(CTM,SCM)198508-198708

LH,BLUE,BLUE

main62378-95J00-16iLH51,YH51..SRF..08S198508-198708

LH,BROWN,BROWN

main62378-95J01-04iLH5#,YH51..MRF198212-198508

LH,BLUE GRAY,BLUE

main62378-95J01-06iLH5#,YH51..MRF198212-198508

LH,BROWN,BROWN

main62378-95J01-14iLH51,YH51..MRF..08S198508-198708

LH,BLUE,BLUE

main62378-95J01-16iLH51,YH51..MRF..08S198508-198708

LH,BROWN,BROWN

main62378-95J02iLH60,61,7#,YH71..15S198308-198708

LH

main62378-95J03-04iLH51,YH51..MRF..08S198508-198708

LH,W/*PC,BLUE,BLUE

main62378-95J03-06iLH51,YH51..MRF198508-198708

LH,W/*PC,BROWN,BROWN

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62211-90C00iLH7#,YH71..DLX198212-198708

main62211-90C01iLH7#..GL198212-198708

main62711-95J02iLH66..V4D..GL198609-198708

WHITE SPECIAL,RH

main62712-95J00iLH50,51,YH51..CTM,SCM;LH5#,6#,YH50,61..V4D..GL198212-198708

main62712-95J01iLH50,51,60,61,YH51,61..(COM,WG)..(DLX,STD); LH56,60,66,YH52,62..V4D..VSG;LH50,51,61,YH50,61..V4D..(05S,06S,09S)198212-198708

main62712-95J02iLH61..10S198502-198708

main62712-95J04iLH51,YH51..08S198405-198406

main62722-95J00iLH5#,6#,7#,YH50,51,61..CTM,GL,SCM198212-198708

main62722-95J01iLH50,51,60,61,7#,YH51,61,71..(DLX,STD)..(09S,10S,15S); LH7#,YH52,62,71..03S,06S;LH50,51,60,61,YH50,61..DLX..06S198212-198708

main62722-95J02iLH50,51,YH51..07S,08S198212-198708

main62722-95J04iLH51,YH51..08S198405-198406

LIVING SALOON EX,LH,*TEM,T=4.0

main62733-95J10iLH66..V4D..GL198609-198708

WHITE SPECIAL,LH

main62752-95J00iLH5#,6#,YH50,51,61..V5D..GL198212-198708

main62752-95J01iLH5#,6#,YH50,61..V5D..DLX..(05S,06S)198212-198708

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62213-90C00iLH7#,YH71..DLX..(09S,15S)198212-198708

main62213-90C01iLH7#..GL198212-198708

main62213-90C02iLH7#,YH71..06S198212-198708

main62713-95J00iLH50,51,60,61,YH50,61..V4D..GL198212-198708

main62713-95J01iYH61..DLX..10S198303-198401

main62713-95J05iLH66..DLX..08S198608-198708

main62713-95J07iLH66..GL..08S198608-198708

main62713-95J08iLH50,51,YH51..07S,08S198212-198708

main62713-95J10iLH51,YH51..08S198405-198406

LIVING SALOON EX,RH,*TEM,T=4.0

main62713-95J12iLH66..V4D..GL..05S198609-198708

WHITE SPECIAL,RH

main62713-95J13iLH66..GL..08S198609-198708

WHITE SPECIAL,RH

main62723-95J00iLH56,66..GL..05S198608-198708

main62723-95J01iLH7#,YH52,62,71..03S,06S;LH50,51,60,61,YH50,61..DLX..06S198212-198708

main62723-95J02iLH50,51,6#,7#,YH51,61..(CTM,GL,SCM)..(08S,09S,15S)198212-198708

main62723-95J03iLH50,51,6#,7#,YH51,61,71..(DLX,STD)..(08S,09S,10S,15S)198212-198708

main62723-95J04iLH50,51,YH51..07S,08S198212-198708

main62723-95J07iLH51,YH51..08S198405-198406

LIVING SALOON EX,LH,*TEM,T=4.0

main62736-95J03iLH66..V4D..GL..05S198609-198708

WHITE SPECIAL,LH

main62736-95J04iLH66..GL..08S198609-198708

WHITE SPECIAL,LH

main62753-95J00iLH5#,6#,YH50,51,61..V5D..GL198212-198708

main62753-95J01iLH5#,6#,YH50,61..V5D..DLX..(05S,06S)198212-198708

62652GLASS, SIDE WINDOW, NO.2, FRONT (FOR SLIDE TYPE)

main62712-95J00iLH50,51,YH51..CTM,SCM198212-198708

main62712-95J01iLH50,51,YH51..DLX..09S198212-198708

main62712-95J02iLH50,51,YH51..07S,08S198212-198708

main62712-95J04iLH51,YH51..08S198405-198406

main62732-95J04iLH7#..GL198212-198708

main62732-95J05iLH60,61,7#,YH61,71..(DLX,STD)..(10S,15S)198212-198708

main62732-95J07iLH61..10S198502-198708

main62742-95J00iLH50,51,YH51..CTM,SCM198212-198708

main62742-95J01iLH50,51,YH51..DLX..09S198212-198708

main62742-95J02iLH50,51,YH51..07S,08S198212-198708

main62742-95J03iLH7#..GL198212-198708

main62742-95J04iLH60,61,7#,YH61,71..(DLX,STD)..(10S,15S)198212-198708

main62742-95J08iLH51,YH51..08S198405-198406

LIVING SALOON EX,LH,*TEM,T=4.0

main62742-95J10iLH61..10S198502-198708

62652AGLASS, SIDE WINDOW, NO.2, REAR (FOR SLIDE TYPE)

main62733-95J00iLH50,51,YH51..CTM,SCM198212-198708

main62733-95J01iLH50,51,YH51..DLX..09S198212-198708

main62733-95J02iLH50,51,YH51..07S,08S198212-198708

main62733-95J03iLH7#..GL198212-198708

main62733-95J04iLH60,61,7#,YH61,71..(DLX,STD)..(10S,15S)198212-198708

main62733-95J08iLH51,YH51..08S198405-198406

LIVING SALOON EX,RH,*TEM,T=4.0

main62733-95J09iLH61..10S198502-198708

main62743-95J00iLH50,51,YH51..CTM,SCM198212-198708

main62743-95J01iLH50,51,YH51..DLX..09S198212-198708

main62743-95J02iLH50,51,YH51..07S,08S198212-198708

main62743-95J03iLH7#..GL198212-198708

main62743-95J04iLH60,61,7#,YH61,71..(DLX,STD)..(10S,15S)198212-198708

main62743-95J08iLH51,YH51..08S198405-198406

LIVING SALOON EX,LH,*TEM,T=4.0

main62743-95J09iLH61..10S198502-198708

62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)

main62910-95702×2iLH50,51,60,61,7#,YH50,51,61,71..05S,06S; LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198708

62691APACKING, SIDE WINDOW LOCK, NO.1

main62792-95A00×2iLH50,51,60,61,7#,YH50,51,61,71..05S,06S; LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198708

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62793-95704×2iLH56,66198608-198708

main62793-95J00×4iLH5#,6#,7#,YH50,51,61,71..05S,06S; LH5#,6#,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198510

62692LOCK, SIDE WINDOW, NO.2 GLASS (FOR SLIDE TYPE)

main62910-95702×3iLH50,51,60,61,7#,YH51,61,71..COM,WG198212-198708

62692APACKING, SIDE WINDOW LOCK, NO.2

main62792-95A00×3iLH50,51,60,61,7#,YH51,61,71..COM,WG198212-198708

62692BRETAINER, SIDE WINDOW LOCK, NO.2

main62793-95J00×3iLH50,51,60,61,7#,YH51,61,71..COM,WG198212-198708

62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62221-90C00iLH7#,YH71..DLX198212-198708

main62221-90C01iLH7#..GL198212-198708

main62716-95J00iLH50,51,61,YH50,61..V4D..VSG..03S198212-198708

main62736-95J00×2iLH50,51,60,61,YH50,61..V5D..03S198212-198708

62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62715-95J02iLH66..V4D..GL198609-198708

WHITE SPECIAL,RH

main62716-95J03iLH66..V4D..GL198609-198708

WHITE SPECIAL,LH

main62725-95J01iLH5#,YH5#..VSG198212-198708

main62725-95J02iLH66..GL..08S198608-198708

main62725-95J03iYH61..DLX..10S198303-198401

main62726-95J00iLH5#,YH5#..VSG198212-198708

main62726-95J01iLH66..GL..08S198608-198708

main62726-95J02iLH61..DLX..09S;LH60,YH61..GL..(05S,06S);LH61,66..VSG..(03S,05S,06S);LH60,66,7#,YH6#,71..VSG..(CTD,DLX)..(03S,06S,08S,09S)198212-198708

62746WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1

main62253-95J00×2iLH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S); LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198708

RH,L=530.5

main62347-95J00×4iLH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S); LH5#,6#,YH50,51,61..V5D..(05S,06S); LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198708

L=521; LH,L=521

62746AWEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.2

main62253-95J00×4iLH50,51,60,61,7#,YH51,61,71..COM,WG198212-198708

L=530.5

62751STOP, SIDE WINDOW FIX GLASS

main62751-95661×5iLH61,YH61..VSG;LH7#,YH5#,62,71;LH61,YH61..10S,15S;LH50,51,60..VSG..03S;LH50,51,60..05S,06S,07S,08S,09S,10S,15S198212-198708

62755WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62262-90C00iLH7#,YH71198212-198708

main62771-95J00iLH50,51,61,YH50,61..V4D..VSG..03S198212-198708

RH

main62772-95J00×2iLH50,51,60,61,YH50,61..V5D..03S; LH50,51,61,YH50,61..V4D..VSG..03S198212-198708

LH

62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62772-95J00×2iLH5#,YH5#..VSG198212-198708

main62778-95J00×2iYH61..DLX..10S198303-198401

LIGHT DUTY

62758CHANNEL, SIDE WINDOW GLASS, NO.1

main62773-95J00iLH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S); LH5#,6#,YH50,51,61..V5D..(05S,06S); LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198708

L=526; LH,L=526

main62774-95J00iLH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S); LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S; YH52,62198212-198708

RH,L=535.5

62758ACHANNEL, SIDE WINDOW GLASS, NO.2

main62774-95J00×2iLH50,51,60,61,7#,YH51,61,71..COM,WG198212-198708

L=535.5

62761RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62471-90C02iLH7#,YH71..09S,15S198212-198708

RH

main62471-90C03iLH7#,YH71..06S198212-198708

RH

main62714-95J02iLH50,51,61,YH50,61..V4D..(05S,06S);LH56,60,66,YH52,62..V4D..VSG..(03S,05S,06S,08S)198212-198708

RH

main62714-95J03iLH50,60,YH51,61..08S,09S,10S,15S198212-198309

RH

main62714-95J04iLH50,51,6#,YH51,61..07S,08S,09S,10S,15S198309-198708

RH

main62724-95J02iYH61..DLX..10S198303-198401

LH,LIGHT DUTY

main62724-95J03iLH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S198212-198708

LH

main62754-95J02iLH5#,6#,YH50,51,61..V5D..(05S,06S)198212-198708

RH

62762RUN, SIDE WINDOW, NO.2(FOR SLIDE TYPE)

main62734-95J05iLH50,YH51..WG198212-198309

RH

main62734-95J07iLH60,61,7#,YH61,71..10S,15S198212-198708

RH

main62734-95J10iLH50,51,YH51..WG198309-198708

RH

main62744-95J04iLH50,YH51..WG198212-198309

LH

main62744-95J06iLH60,YH61..10S,15S198212-198309

LH

main62744-95J08iLH50,51,YH51..WG198309-198708

LH

main62744-95J09iLH60,61,YH61..10S,15S198309-198708

LH

main62756-90C01iLH7#,YH71..15S198212-198708

LH

62779PACKING, SIDE WINDOW GLASS, NO.1

main62259-90C00iLH7#,YH71..15S198212-198708

UPR

main62719-95J01iLH50,51,YH51..SRF..(CTM,SCM)198212-198708

UPR

main62755-95702×8iLH51,61,71,YH50,51,61,71..05S,06S; LH51,61,YH51,61..07S,08S,09S,10S,15S; LH71,YH71; YH52,62198401-198708

LWR; LWR,LH

main62755-95J01×5iLH60..VSG..03S;LH60..06S,09S,15S;LH50,YH50,61..VSG; LH70,YH71198212-198401

LWR; LWR,LH

62779BPACKING, SIDE WINDOW GLASS, NO.2

main62259-90C00×2iLH7#,YH71..15S198212-198708

UPR

main62719-95J01×2iLH50,51,YH51..SRF..(CTM,SCM)198212-198708

UPR

main62755-95702×10iLH51,61,71,YH51,61,71..COM,WG198401-198708

LWR

main62755-95J01×10iLH50,60,70,YH51,61,71..COM,WG198212-198401

LWR

62897TUBE, SIDE WINDOW GUARD

main62897-95J00×2iLH5#,YH50,51..V5D; LH5#,YH50..V4D..(05S,06S); LH50,51,YH50,52..V4D..VSG..03S198212-198708

L=1230; LH,L=1230

main62897-95J01iLH50,51,YH50,52..V4D..VSG..03S198212-198708

RH,L=2480

main62897-95J02×2iLH6#,YH61..V5D; LH60,61,7#,YH61,71..V4D..(06S,09S); LH61,YH6#..V4D..VSG..03S198212-198708

L=1530; LH,L=1530

main62897-95J03iLH61,YH6#..V4D..VSG..03S198212-198708

RH,L=2780

9014960027

main90149-60027

9015840002

main90158-40002

9015930005

main90159-30005

9016440050

main90164-40050

9018906018

main90189-06018

9020104004

main90201-04004

42 parts on this diagram · 1 diagram in section
