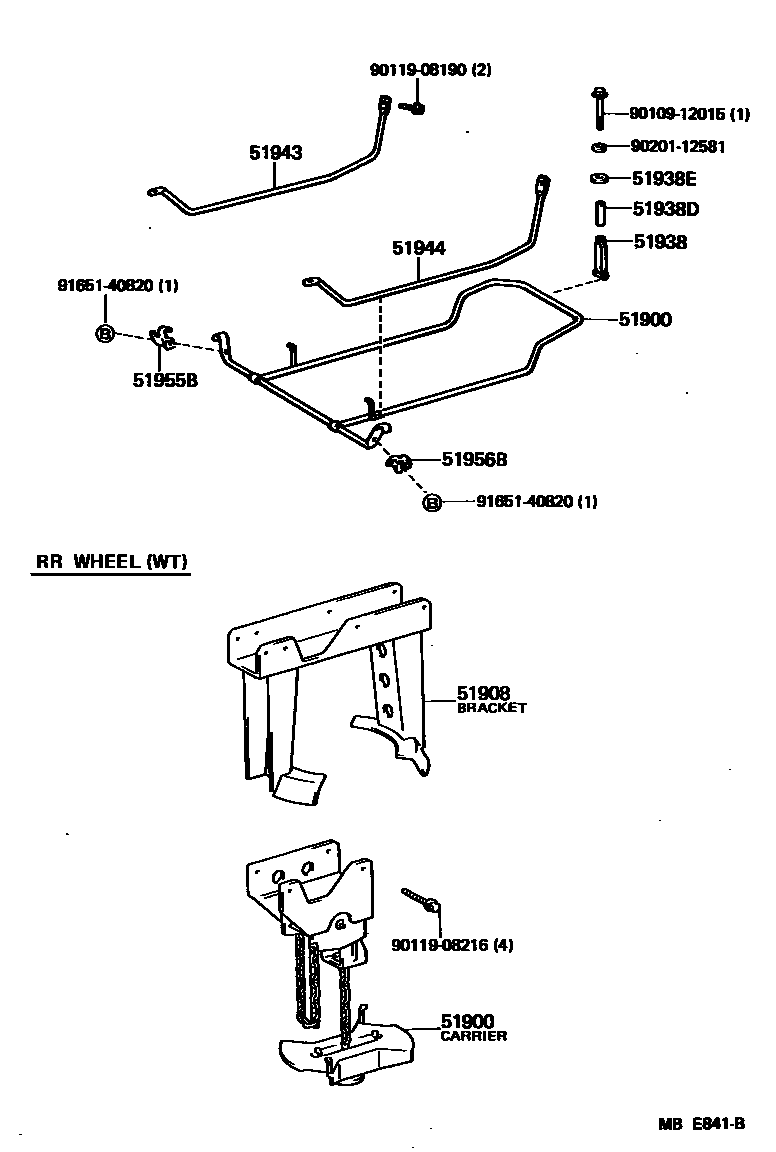

SPARE WHEEL CARRIER

0001 1 0002 1LPG PACKAGE

51900CARRIER ASSY, SPARE WHEEL

main51900-26040iLH60,61,YH61..V5D..WT198212-198708

RR WHEEL,155R12

main51900-26060iLH61,YH61..V4D..WT198508-198708

RR WHEEL,155R12

main51903-26090iLH50,YH50,52..03S198401-198508

6.50-14

main51903-26091iLH51,YH50..03S198508-198708

6.50-14

main51903-26100iLH50,51,YH5#..V198212-198708

185R14

main51903-26110iLH60,70,YH71..15S198212-198401

6.00-14

main51903-26120iLH61,YH6#..03S198401-198508

6.50-14

main51903-26121iLH61,YH6#..03S..ST198508-198708

6.50-14

main51903-26130iLH61,71,YH6#,71..(COM,V)..ST198401-198708

185R-14

main51903-26140iLH60,61,YH61..WT198212-198708

FR WHEEL,185R14

main51903-26170iLH50,51,YH51..08S,09S198212-198708

195SR14

main51903-26180iLH50..WG198212-198401

205-70HR

main51903-26190iLH60,61,YH61..10S198212-198708

195SR14

main51903-26270iLH56198608-198708

main51903-26280iLH66198608-198708

main51910-95J00iYH50,61..LPG198311-198708

LPG PACKAGE

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51904-26010iLH60,61,YH61..WT198212-198708

51938LOCK, SPARE WHEEL CARRIER

main51938-22020iLH51,61,71,YH5#,6#,71198508-198512

main51938-28020iLH5#,6#,7#,YH5#,6#,71198212-198508

main51938-28030iLH5#,6#,71,YH5#,6#,71198512-198708

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17005iLH5#,6#,7#,YH5#,6#,71198212-198708

51938EPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iLH5#,6#,7#,YH5#,6#,71198212-198708

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-26050iLH5#,YH5#..V198212-198708

main51943-26060iLH60,61,YH61..WT198212-198708

main51943-26070iLH6#,7#,YH6#,71..ST198212-198708

main51943-26090iLH50,51,YH51..WG198212-198708

51944BRACKET, SPARE WHEEL CARRIER, NO.2

main51944-26020iLH50,51,YH51..WG198212-198708

main51944-26040iLH5#,YH50,52..V198212-198507

main51944-26050iLH6#,7#,YH6#,71..ST198212-198507

main51944-26070iLH60,61,YH61..WT198212-198708

main51944-26080iLH51,56,YH5#..V198507-198708

main51944-26090iLH6#,71,YH61,71..ST198507-198708

51955BHINGE, SPARE WHEEL CARRIER, NO.1

main51955-26010iLH5#,6#,7#,YH5#,6#,71..V..ST198212-198708

main51955-26020iLH50,51,YH51..WG; LH60,61,YH61..WT198212-198708

51956BHINGE, SPARE WHEEL CARRIER, NO.2

main51956-26020iLH5#,6#,7#,YH5#,6#,71..V..ST198212-198708

main51956-26030iLH50,51,YH51..WG; LH60,61,YH61..WT198212-198708

9010912015

main90109-12015

9011908190

main90119-08190

9011908216

main90119-08216

9020112581

main90201-12581

9165140820

main91651-40820

14 parts on this diagram · 2 diagrams in section
