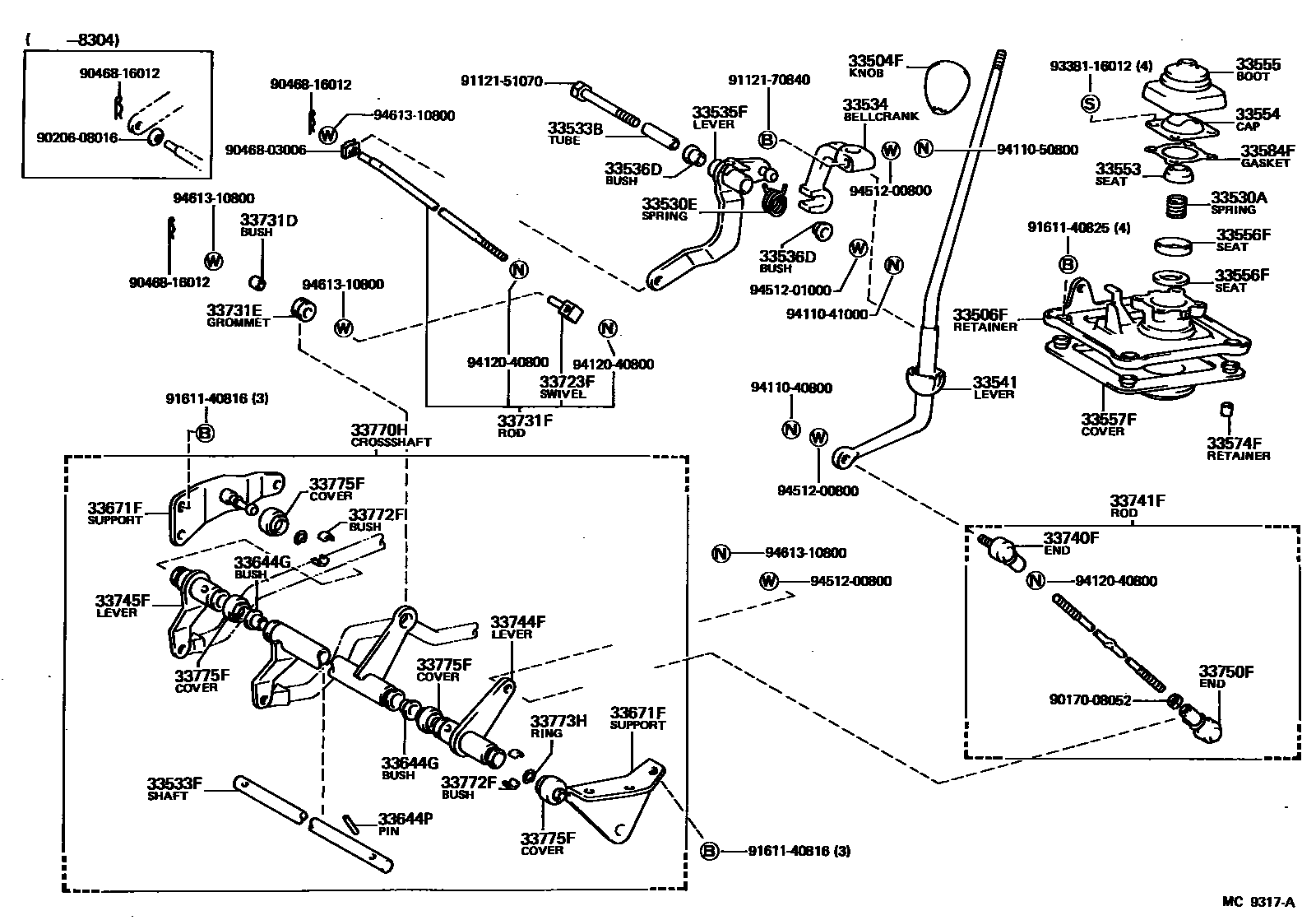

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-01iLH5#,61,66,YH50,51,61..5F198212-198708

BLACK,BLACK

main33542-30110-01iLH50,YH51..4FC198212-198401

BLACK

main33542-32010-14iLH51,YH51..4FC198401-198508

BLUE GRAY,BLUE

main33542-32010-26iLH51,YH51..4FC198401-198508

BROWN,BROWN

main33542-32040-14iLH51,61,YH51,61..4FC198508-198708

BLUE GRAY,BLUE

main33542-32040-16iLH51,61,YH51,61..4FC198508-198708

BROWN,BROWN

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-26010iLH50,YH51..5F198212-198401

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90501-24440iLH50,YH51..5F198212-198401

33530ESPRING, TENSION (FOR SELECT RETURN)

main90508-35016iLH5#,61,66,YH50,51,61..5F198212-198708

33533BTUBE (FOR BELLCRANK SHAFT)

main90387-10004iLH5#,61,66,YH50,51,61..5F198212-198708

33533FSHAFT, BELLCRANK (FOR FLOOR SHIFT)

main33533-26050iLH5#,YH51..5F198212-198506

33534BELLCRANK, SELECTING

main33534-28010iLH50,YH51..5F198212-198401

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-26050iLH50,YH51..5F198212-198401

main33535-26051iLH51,56,6#,YH50,51,61..5F198401-198708

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-13192×2iLH5#,61,66,YH50,51,61..5F198212-198708

33541LEVER, SHIFT

main33541-26070iLH50,YH51..5F198212-198401

33553SEAT, SHIFT LEVER SPRING

main33553-28010iLH5#,61,66,YH50,51,61..5F198212-198708

33554CAP, SHIFT LEVER

main33554-28010iLH5#,61,66,YH50,51,61..5F198212-198708

33555BOOT, SHIFT LEVER

main33555-14030iLH50,51,61,YH51,61..4FC..(05S,07S,08S)198212-198708

main33555-31011iLH50,YH51..5F198212-198401

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20010iLH50,YH51..5F198212-198401

T=3.0

main33556-22010iLH50,YH51..5F198212-198401

T=6.5

main33556-27010iLH51,56,6#,YH50,51,61..5F198401-198708

T=6.5

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-28010iLH5#,61,66,YH50,51,61..5F198212-198708

33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)

main33574-28010×4iLH5#,61,66,YH50,51,61..5F198212-198708

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-31020iLH50,YH51..5F198212-198401

33644GBUSH (FOR GEAR SELECTING SHAFT)

main90386-15110×2iLH5#,61,66,YH50,51,61..5F198212-198708

33644PPIN (FOR GEAR SELECTING SHAFT)

main90256-08001×2iLH5#,6#,YH5#,61..5F198604-198708

main90256-08002×2iLH5#,61,YH50,51,61..5F198212-198604

33671FSUPPORT, CONTROL ROD, NO.1

main33671-26090iLH50,51,61,YH50,51,61..5F198212-198708

INNER

main33671-26130iLH56,66198608-198708

INNER

main33673-26080iLH5#,61,66,YH50,51,61..5F198212-198708

OUTER

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-10020iLH5#,61,66,YH50,51,61..5F198212-198708

33731DBUSH (FOR GEAR SELECTING ROD)

main90389-08005×2iLH5#,61,66,YH50,51,61..5F198212-198708

33731EGROMMET (FOR GEAR SELECTING ROD)

main90480-17177×2iLH5#,61,66,YH50,51,61..5F198212-198708

33731FROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)

main33720-26040iLH50,YH51..5F198212-198305

main33720-26041iLH50,YH51..5F198305-198401

main33720-26042iLH51,56,6#,YH50,51,61..5F198401-198708

33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

main33740-26010iLH50..4FC198212-198401

main33740-35011iLH50,YH51..5F198212-198401

33741FROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33710-26120iLH50,51,61,YH51,61..4FC..(05S,07S,08S)198212-198708

main33710-26130iLH50,YH51..5F198212-198401

main33710-26131iLH51,56,6#,YH50,51,61..5F198401-198708

33744FLEVER, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33744-26120iLH50,51,61,YH50,51,61..5F198212-198708

main33744-26140iLH56,66198608-198708

33745FLEVER, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT)

main33745-26100iLH50,YH51..5F198212-198401

main33745-26101iLH51,YH51..5F198401-198508

main33745-26102iLH5#,6#,YH5#,61..5F198508-198708

33750FEND, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)

main33750-26010×2iLH51,56,6#,YH50,51,61..5F198401-198708

main33750-35011iLH50,YH51..5F198212-198401

33770HCROSS SHAFT ASSY (FOR FLOOR SHIFT)

main33770-26030iLH50,YH51..5F198212-198401

main33770-26031iLH51,YH51..5F198401-198508

main33770-26032iLH51,61,YH5#,61..5F198508-198708

main33770-26060iYH51,61..4FC198212-198708

main33770-26070iLH50,51,61..4FC..(05S,07S,08S)198212-198708

main33770-26090iLH56,66198608-198708

33772FBUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)

main33772-20010×2iLH5#,61,66,YH50,51,61..5F; LH50,51,61,YH51,61..4FC..(05S,07S,08S)198212-198708

INNER

main33772-35011iLH50,51,61,YH51,61..4FC..(05S,07S,08S)198212-198708

OUTER

33773HRING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)

main96151-01600×3iLH5#,61,66,YH51,61..05S,07S,08S198212-198708

33775FCOVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)

main33775-20020iLH50,51,61,YH51,61..4FC..(05S,07S,08S)198212-198708

INNER

main33775-26030iLH50,51,61,YH51,61..4FC..(05S,07S,08S)198212-198708

OUTER

main33775-28040×2iLH5#,61,66,YH50,51,61..5F198212-198708

OUTER

main33775-35010iLH50,51,61,YH51,61..4FC..(05S,07S,08S)198212-198708

CTR

main33789-36030×2iLH5#,61,66,YH50,51,61..5F198212-198708

INNER

9017008052

main90170-08052

9020608016

main90206-08016

9046803006

main90468-03006

9046816012

main90468-16012

9112151070

main91121-51070

9112170840

main91121-70840

9161140816

main91611-40816

9161140825

main91611-40825

9338116012

main93381-16012

9411040800

main94110-40800

9411041000

main94110-41000

9411050800

main94110-50800

9412040800

main94120-40800

9451200800

main94512-00800

9451201000

main94512-01000

9461310800

main94613-10800

49 parts on this diagram · 9 diagrams in section
