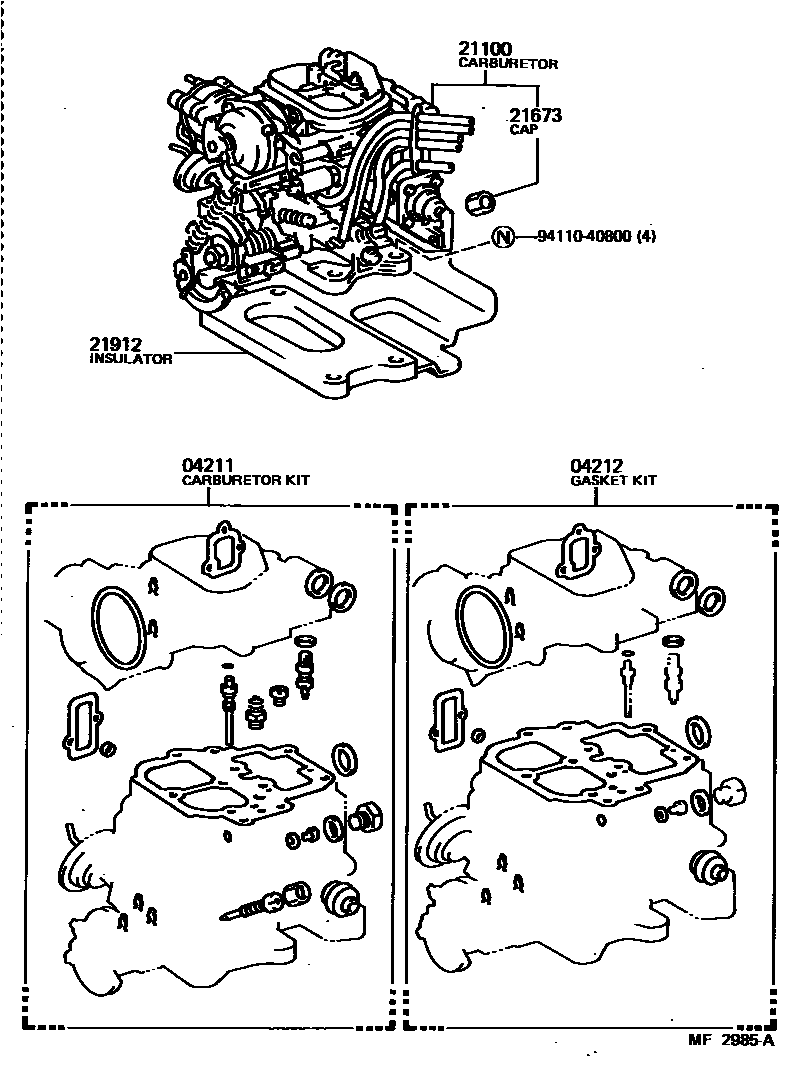

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-72050i2Y,3Y..YH50,61,71198212-198303

main04211-72070i2Y,3Y..YH50,51,61,71198303-198708

main04211-73010i3YU..YH51,61198212-198303

main04211-73011i3YU..YH51,61198303-198508

main04211-73020i3YJ..YH71198212-198303

main04211-73021i3YJ..YH52,62,71198303-198708

main04211-73070i3YU..YH51,61198508-198708

04212GASKET KIT, CARBURETOR

main04212-71010i2Y,3Y#..YH5#,61,71198212-198303

main04212-71020i2Y,3Y,3YJ..YH5#,6#,71198508-198708

main04212-73010i3YU..YH51,61198508-198708

21100CARBURETOR ASSY

main21100-72060i2Y..YH50198212-198708

main21100-73010i3YU..YH51,61198212-198508

main21100-73011i3YU..YH51,61198508-198708

main21100-73020i3YJ..YH52,62,71198212-198708

main21100-73030i3Y..YH51,61,71198212-198708

21673CAP, IDLE LIMIT

main21673-13280i2Y,3Y#..YH5#,6#,71198212-198708

21912INSULATOR, CARBURETOR HEAT

main21912-71010i2Y,3Y#..YH5#,6#,71198212-198508

main21912-72010i2Y,3Y#..YH5#,6#,71198508-198708

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section
