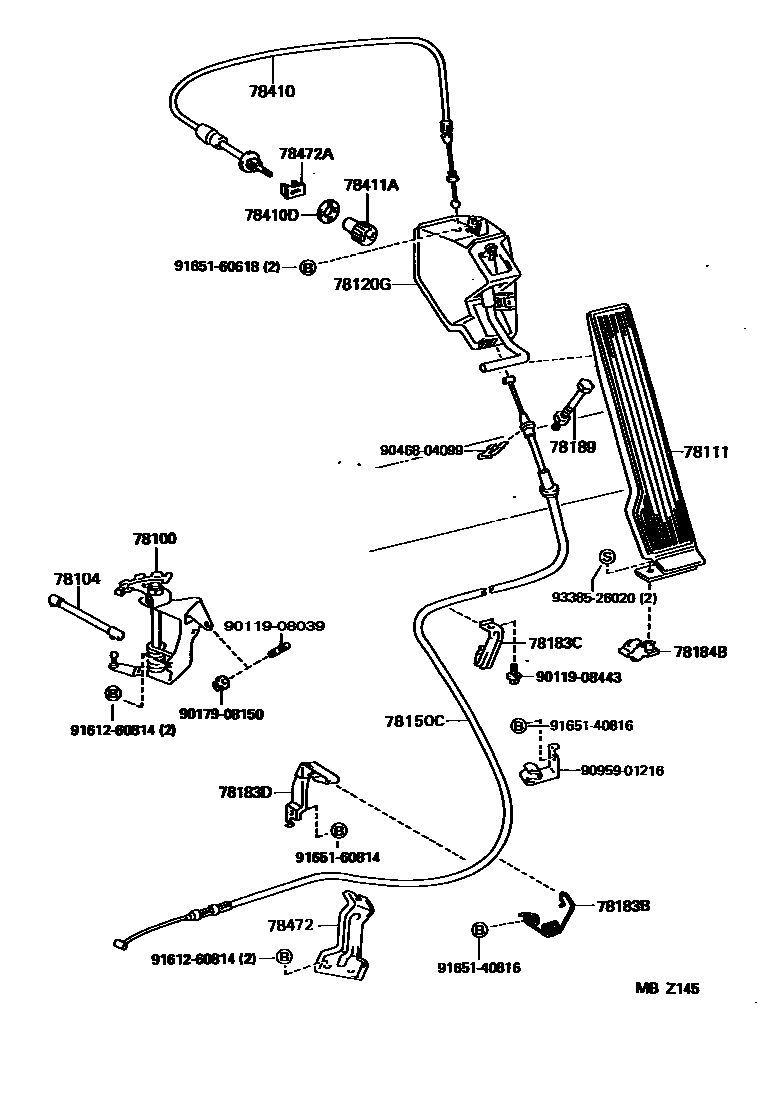

ACCELERATOR LINK

0001 1 0002 1 0003 1

78100LINK ASSY, ACCELERATOR

main78100-25011iLY101,111,151,161199505-199610

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140iLY101,111,151,161199505-199610

78111PEDAL, ACCELERATOR

main78110-95410iLY101,111,151,161,YY101199505-199610

78120GROD ASSY, ACCELERATOR PEDAL

main78202-95010iLY101,111,151,161,YY101199505-199610

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-25021iYY101199505-199610

main78150-25041iLY101,111199505-199610

main78150-25080iLY151,161199505-199610

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-25010iLY101,111,151,161,YY101199505-199610

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-25020iLY101,111,151,161,YY101199505-199610

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-95011iLY101,111199505-199610

main78183-95A10iYY101199505-199610

main78183-95A12iLY151,161199505-199610

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78183-95406iLY101,111,151,161,YY101199505-199610

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95404iLY101,111,151,161,YY101199505-199610

78410CABLE ASSY, THROTTLE CONTROL

main78404-37020iLY101,111,151,161199505-199610

78410DNUT, THROTTLE

main78314-95010iLY101,111,151,161199505-199610

78411AKNOB, THROTTLE CONTROL CABLE

main78411-22010iLY101,111,151,161199505-199610

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-25011iLY101,111,151,161199505-199610

78472ASUPPORT, THROTTLE CONTROL CABLE

main78472-95700-B0iLY101,111,151,161199505-199610

BLUISH GRAY,TRIM1#

9011908039

main90119-08039

9011908443

main90119-08443

9017908150

main90179-08150

9046804099

main90468-04099

9095901216

main90959-01216

9161260814

main91612-60814

9165140816

main91651-40816

9165160618

main91651-60618

9165160814

main91651-60814

9338526020

main93385-26020

25 parts on this diagram · 3 diagrams in section
