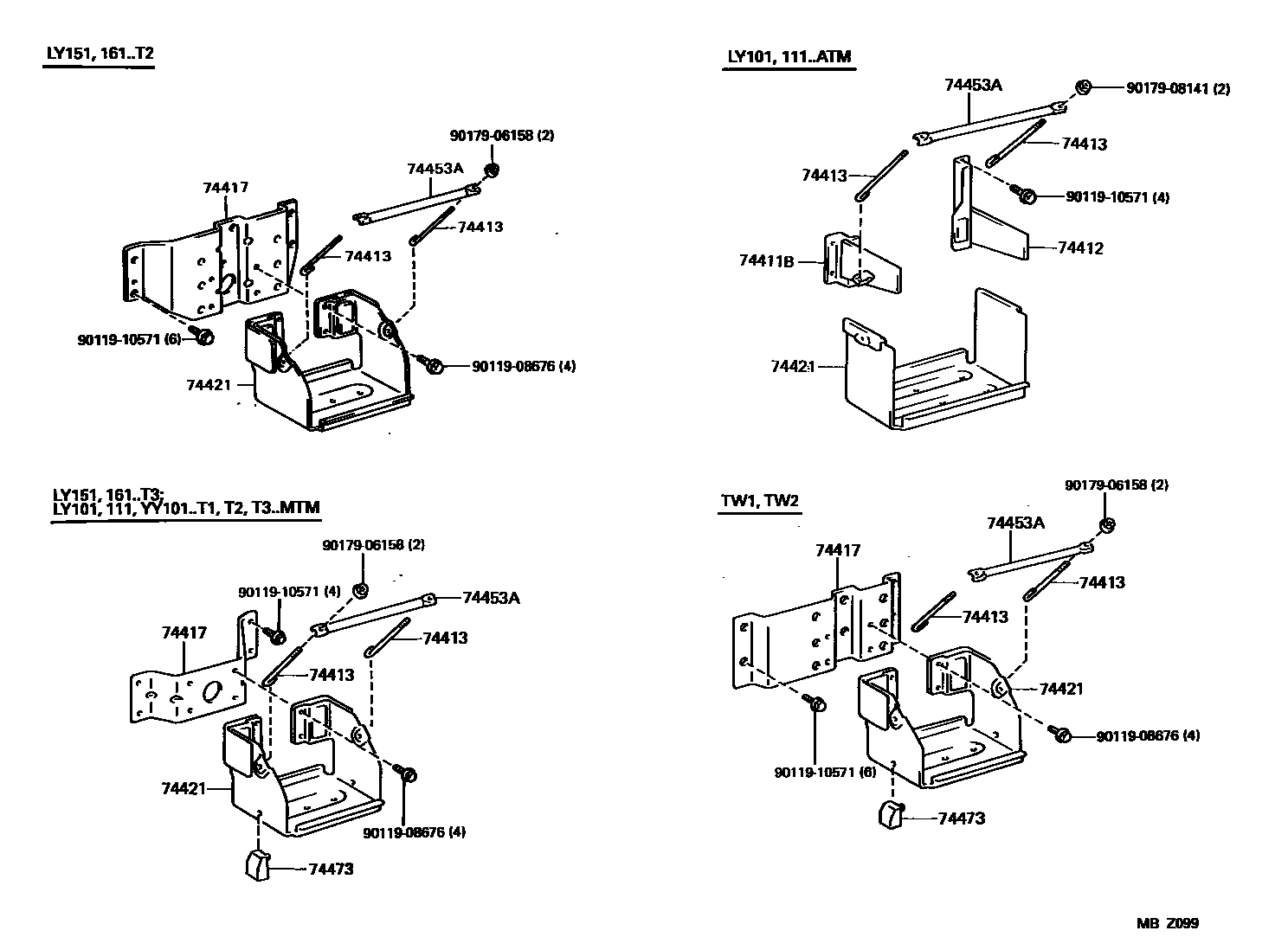

BATTERY CARRIER

0001 1 0002 1

74411BBRACKET, BATTERY, FRONT

main74401-26040iLY101,111..ATM199505-199610

74412BRACKET, BATTERY, REAR

main74402-26040iLY101,111..ATM199505-199610

74413BOLT, BATTERY CLAMP

main74451-25020×2iLY101,111,151,161,YY101..MTM199505-199610

main74451-36070×2iLY101,111,151,161..MTM; LY101,111..ATM199505-199610

74417BRACKET, BATTERY CARRIER

main74417-26050iLY151,161..T3;LY101,111,YY101..(T1,T2,T3)..MTM199505-199610

main74417-26080iLY151,161..T2199505-199610

main74417-26090iLY101,111..ATM; LY151,161..T3;LY101,111..(T1,T2,T3)..MTM199505-199610

main74417-26101iLY101,111,151,161,YY101..TW1,TW2199505-199610

74421HANGER, BATTERY

main74421-26020iLY101,111,151,161,YY101..MTM199505-199610

main74421-36091iLY101,111..ATM199505-199610

74453ABAR, BATTERY SET PLATE

main74453-25090iLY101,111,151,161,YY101..MTM199505-199610

main74453-25100iLY101,111..ATM199505-199610

main74453-36070iLY101,111,151,161199505-199610

74473SPACER, BATTERY

main74473-36050×2iYY101199505-199610

9011908676

main90119-08676

9011910571

main90119-10571

9017906158

main90179-06158

9017908141

main90179-08141

11 parts on this diagram · 2 diagrams in section
