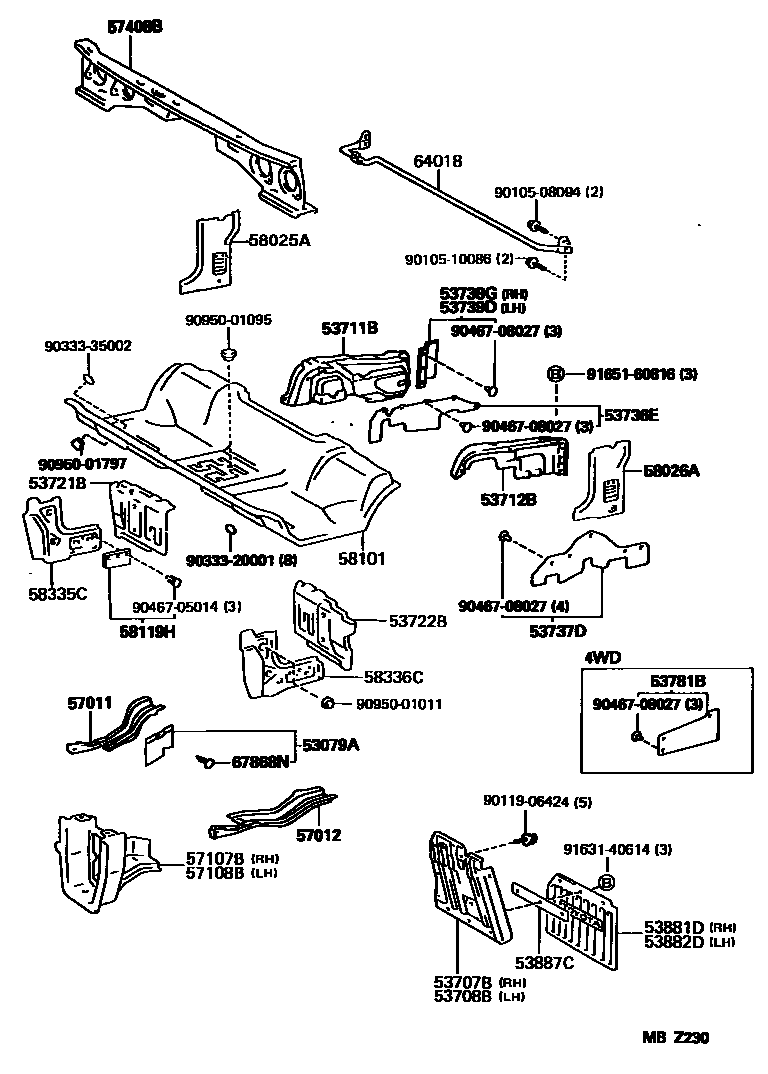

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

53079ASEAL SUB-ASSY, FRONT FENDER APRON, LOWER

main53079-25010×2iLY101,111,151,161,YY101199505-199610

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53715-95405iLY101,111,151,161,YY101..TW1,TW2199505-199610

main53715-95A01iLY101,111,151,161,YY101..T1,T2,T3199505-199610

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53716-25010iLY101,111,151,161,YY101..TW1,TW2199505-199610

main53716-95A02iLY101,111,151,161,YY101..T1,T2,T3199505-199610

53711BAPRON, FRONT FENDER, FRONT RH

main53711-25010iLY101,111,151,161,YY101199505-199610

53712BAPRON, FRONT FENDER, FRONT LH

main53712-25010iLY101,111,151,161,YY101199505-199610

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-37010iLY101,111,151,161,YY101199505-199610

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37020iLY101,111,151,161,YY101199505-199610

53736ESEAL, FRONT FENDER APRON, RH

main53736-25010iLY101,111,YY101199505-199508

main53736-25020iLY151,161199505-199610

main53736-25040iLY101,111,YY101199508-199610

53737DSEAL, FRONT FENDER APRON, LH

main53737-25010iLY101,111,YY101199505-199508

main53737-25020iLY151,161199505-199610

main53737-25050iLY101,111,YY101199508-199610

53738GSEAL, FRONT FENDER APRON, REAR RH

main53738-25010iYY101199505-199610

53739DSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-25010iLY101,111,151,161; YY101199505-199610

53781BSEAL, FRONT FENDER APRON, LOWER

main53781-25010iLY151,161199505-199610

53881DMUDGUARD, FRONT RH

main53881-25010iLY101,111,151,161,YY101..T1,T2,T3199505-199610

main53881-95401iLY101,111,151,161,YY101..TW1,TW2199505-199610

53882DMUDGUARD, FRONT LH

main53881-25010iLY101,111,151,161,YY101..T1,T2,T3199505-199610

main53881-95401iLY101,111,151,161,YY101..TW1,TW2199505-199610

53887CPLATE, FRONT MUDGUARD

main53887-95010×2iLY101,111,151,161,YY101..T1,T2,T3199505-199610

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-25010iLY101,111,151,161,YY101199505-199610

57012MENBER SUB-ASSY

main57012-25010iLY101,111,151,161,YY101199505-199610

57107BBRACKET SUB-ASSY, CAB FRONT MOUNTING, RH

main57107-25010iLY101,111,151,161,YY101199505-199610

57108BBRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main57108-25010iLY101,111,151,161,YY101199505-199610

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-25030iLY101,111,151,161,YY101199505-199610

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-37011iLY101,111,151,161,YY101..TW1,TW2199505-199610

main58271-37011iLY101,111,151,161,YY101..T1,T2,T3199505-199610

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-95401iLY101,111,151,161,YY101..TW1,TW2199505-199610

main58272-37010iLY101,111,151,161,YY101..T1,T2,T3199505-199610

58101PAN SUB-ASSY, FRONT FLOOR

main58101-25010iLY101,111,YY101..MTM199505-199610

main58101-25030iLY101,111..ATM199505-199610

main58101-25040iLY151,161199505-199610

58119HCOVER, FRONT FLOOR SIDE, FRONT

main58119-95400×2iLY101,111,151,161,YY101199505-199610

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37010iLY101,111,151,161,YY101199505-199610

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37010iLY101,111,151,161,YY101199505-199610

64018BAR SUB-ASSY, BODY

main64018-95413iLY101,111,151,161,YY101199505-199610

67868NCLIP, DOOR WEATHERSTRIP, RH

main67868-95401×8iLY101,111,151,161,YY101199505-199610

9010508094

main90105-08094

9010510086

main90105-10086

9011906424

main90119-06424

9033320001

main90333-20001

9033335002

main90333-35002

9046705014

main90467-05014

9046708027

main90467-08027

9095001011

main90950-01011

9095001095

main90950-01095

9095001797

main90950-01797

9163140614

main91631-40614

9165160816

main91651-60816

40 parts on this diagram · 3 diagrams in section
