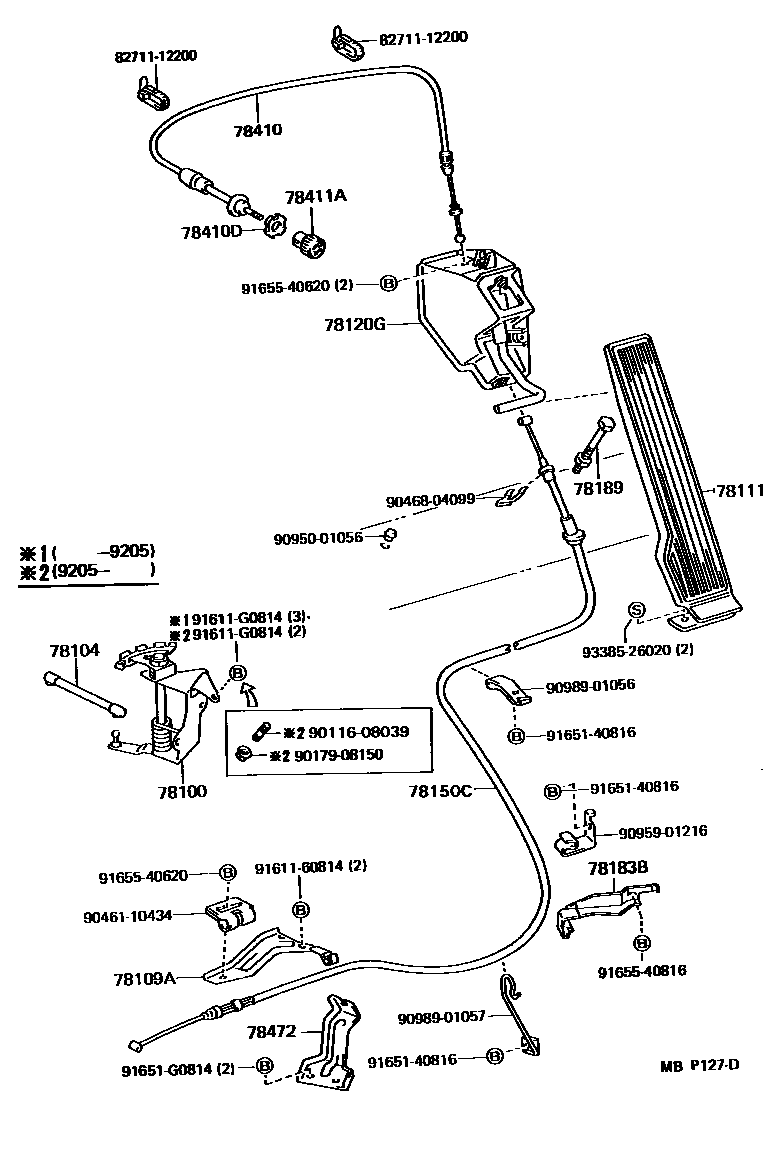

ACCELERATOR LINK

0001 1 0002 1 0003 1

78100LINK ASSY, ACCELERATOR

main78100-25010iLH80198808-198905

main78100-25011iLH80198905-198910

main78100-95A01iLH80..4FC198708-198808

main78100-95J06iLH8#..5F198708-198808

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140iLH8#,9#198910-199505

main78104-30120iLH85198808-198910

78109ABRACKET SUB-ASSY, ACCELERATOR WIRE CLAMP

main78109-95J00iLH80198708-198710

78111PEDAL, ACCELERATOR

main78110-95410iLH8#,9#,YH81198708-199505

78120GROD ASSY, ACCELERATOR PEDAL

main78202-95010iLH8#,9#,YH81198708-199505

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-25020iYH81199109-199505

main78150-25040iLH80,90199109-199505

main78150-26020iLH85,95199109-199505

main78150-95055iYH81198708-199109

main78150-95056iLH80198708-198808

main78150-95060iLH80198808-199109

main78150-95A14iLH85198710-198910

main78150-95A15iLH85198910-199109

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-95011iLH80,90198808-199505

main78183-95A10iYH81198708-199505

main78183-95A11iLH85,95198910-199505

main78183-95A12iLH85,95198910-199505

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95404iLH8#,9#,YH81198708-199505

78410CABLE ASSY, THROTTLE CONTROL

main78404-95010iLH8#,9#198708-199505

78410DNUT, THROTTLE

main78314-95010iLH8#,9#198708-199505

78411AKNOB, THROTTLE CONTROL CABLE

main78411-22010iLH8#,9#198708-199505

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-25010iLH80198808-198910

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011608039

main90116-08039

9017908150

main90179-08150

9046110434

main90461-10434

9046804099

main90468-04099

9095001056

main90950-01056

9095901216

main90959-01216

9098901056

main90989-01056

9098901057

main90989-01057

9161160814

main91611-60814

91611G0814

main91611-G0814

9165140816

main91651-40816

91651G0814

main91651-G0814

9165540620

main91655-40620

9165540816

main91655-40816

9338526020

main93385-26020

28 parts on this diagram · 3 diagrams in section
