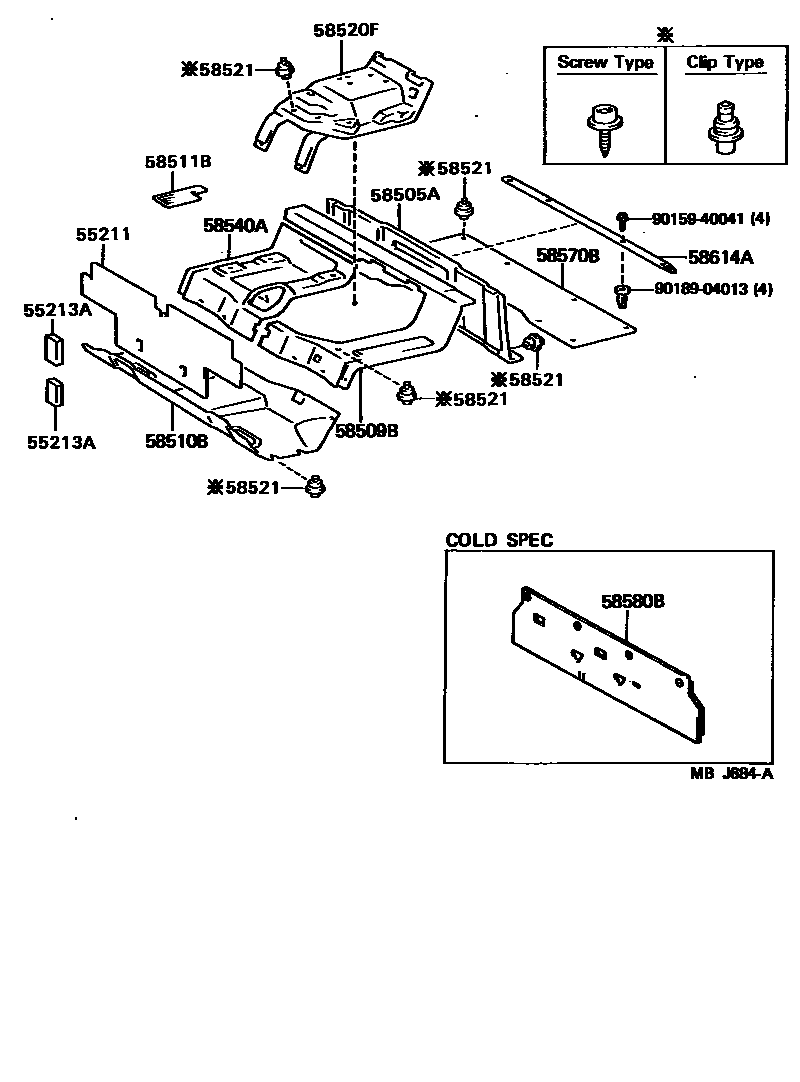

FLOOR MAT & SILENCER PAD

55211SILENCER, FRONT PANEL

main55211-95404iLH80,YH80198508-198708

55213APAD, DASH PANEL SILENCER

main55213-95400iLH80,YH80198508-198708

UPR

main55213-95401iLH80,YH80198508-198708

LWR

58505AMAT SUB-ASSY, HEADER

main58504-95021-04iLH80,YH80..TW198508-198708

BLUE,BLUE

58509BMAT SUB-ASSY, SEAT FLOOR

main58509-95015-04iLH80,YH80..T1,T2,T3198508-198708

BLUE,BLUE

main58509-95017-04iLH80..T1..IV; LH80..T2,T3198508-198608

W/SLIDE DOOR,BLUE,BLUE

main58509-95020-04iLH80,YH80..TW198508-198708

BLUE,BLUE

58510BMAT, FRONT FLOOR, FRONT

main58510-95034-04iYH80198508-198708

BLUE,BLUE

main58510-95042-04iLH80198508-198708

BLUE,BLUE

58511BMAT, FLOOR, FRONT SIDE

main58515-95403-04iLH80,YH80198508-198708

BLUE,BLUE

58520FMAT ASSY, ENGINE COVER

main58520-95012-04iLH80,YH80..TW198508-198708

BLUE,BLUE

main58520-95016-04iLH80,YH80..T1,T2,T3198508-198708

BLUE,BLUE

58521HOOK, MALE, NO.1

main90530-04007×2iLH80,YH80..TW198508-198708

SCREW TYPE

main90530-06001iLH80,YH80198508-198708

CLIP TYPE

58540AMAT ASSY, FRONT FLOOR, REAR NO.1

main58540-95010-04iLH80,YH80..TW198508-198708

BLUE,BLUE

main58540-95013-04iLH80,YH80..MTM..(T1,T2,T3)198508-198708

BLUE,BLUE

main58540-95A17-04iLH80..4FC198508-198708

BLUE,BLUE

58570BMAT ASSY, REAR FLOOR

main58581-95012-04iLH80,YH80..TW198508-198608

BLUE,BLUE

main58581-95013-04iLH80..TW198508-198608

COLD SPEC,BLUE,BLUE

main58581-95015-04iLH80,YH80..TW198608-198708

BLUE,BLUE

main58581-95016-04iLH80..TW198608-198708

COLD SPEC,BLUE,BLUE

main58581-95A54-04iYH80..TW198508-198708

COLD SPEC,BLUE,BLUE

58580BMAT ASSY, REAR FLOOR, REAR

main58582-95010-04iLH80,YH80..TW198508-198608

BLUE,BLUE

main58582-95011-04iLH80,YH80..TW198608-198708

BLUE,BLUE

58614APLATE, MAT SET, NO.4

main58614-95A01-04iLH80,YH80..TW198508-198708

BLUE,BLUE

9015940041

main90159-40041

9018904013

main90189-04013

14 parts on this diagram · 1 diagram in section
