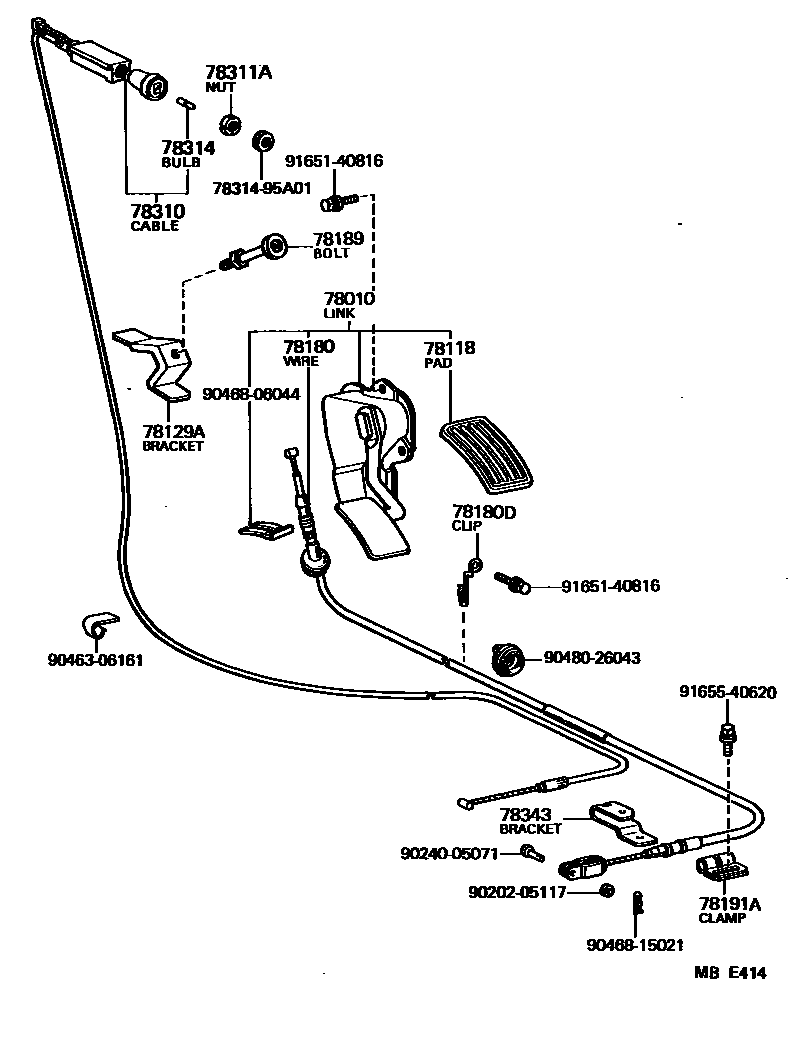

ACCELERATOR LINK

0001 1 0002 1

78010LINK, ACCELERATOR

main78180-95A08iRH24198211-198507

main78180-95A17iLH24198211-198507

78118PAD, ACCELERATOR PEDAL

main78119-95A02iLH24,RH24198211-198507

78129ABRACKET, ACCELERATOR PEDAL STOPPER

main78109-95A00iLH24,RH24198211-198507

78180WIRE ASSY, ACCELERATOR

main78150-95A00iRH24198211-198507

main78150-95A12iLH24198211-198507

78180DCLIP (FOR ACCELERATOR WIRE)

main78169-95A01iLH24,RH24198211-198507

78189BOLT, ACCELERATOR PEDAL STOPPER

main78107-95A00iLH24,RH24198211-198507

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78109-95A02iLH24..TB;LH24..T3,TW198211-198507

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main90461-10025iRH24..T3,TW198211-198507

main90461-10434iLH24..TB;LH24..T3,TW198211-198507

78310CABLE ASSY, CHOKE

main78301-95A04iRH24198211-198507

78311ANUT, CHOKE SHAFT SET

main78314-95A00iRH24198211-198507

78314BULB, CHOKE WARNING

main78314-95600iRH24198211-198507

78343BRACKET, CHOKE ROD

main78302-95602iRH24..T3,TW198211-198507

7831495A01BULB, CHOKE WARNING

main78314-95A01

9020205117

main90202-05117

9024005071

main90240-05071

9046306161

main90463-06161

9046806044

main90468-06044

9046815021

main90468-15021

9048026043

main90480-26043

9165140816

main91651-40816

9165540620

main91655-40620

21 parts on this diagram · 2 diagrams in section
