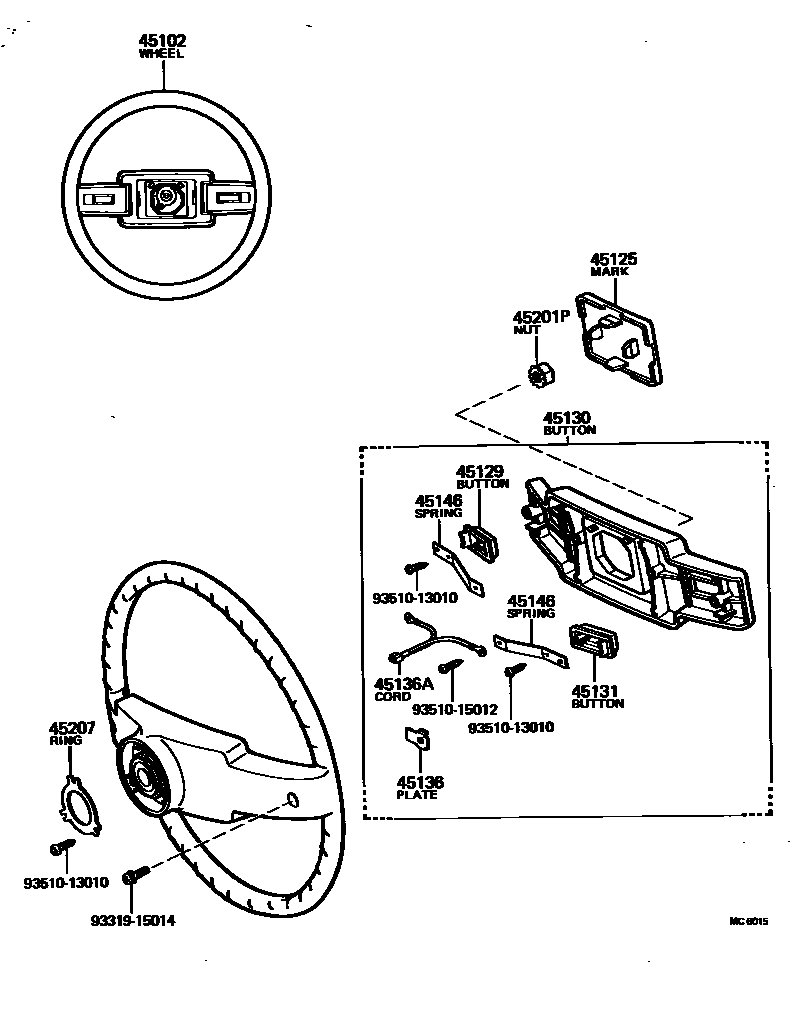

STEERING WHEEL

45102WHEEL SUB-ASSY, STEERING

main45100-35180iRK110197903-198108

BLACK

main45100-35181-01iRK11#198108-198603

BLACK,BLACK

45125MARK, STEERING WHEEL PAD

main45125-35060-01iRK11#197903-198603

BLACK,BLACK

45129BUTTON, HORN, NO.2

main45131-35090iRK110197903-198108

main45131-35091iRK11#198108-198603

45130BUTTON ASSY, HORN

main45130-35140iRK110197903-198108

main45130-35141-01iRK11#198108-198603

BLACK,BLACK

45131BUTTON, HORN, NO.1

main45131-35090iRK110197903-198108

main45131-35091iRK11#198108-198603

45136PLATE, HORN BUTTON CONTACT

main45136-26020×2iRK11#197903-198603

45136ACORD(FOR HORN CONTACT RING)

main90945-02040×2iRK11#197903-198603

45146SPRING, HORN BUTTON CONTACT

main45146-35050×2iRK11#197903-198603

45201PNUT, STEERING WHEEL SET

main90179-12086iRK11#197903-198603

45207RING, HORN CONTACT

main45176-20030iRK11#197903-198603

9331915014

main93319-15014

9351013010

main93510-13010

9351015012

main93510-15012

13 parts on this diagram · 1 diagram in section
