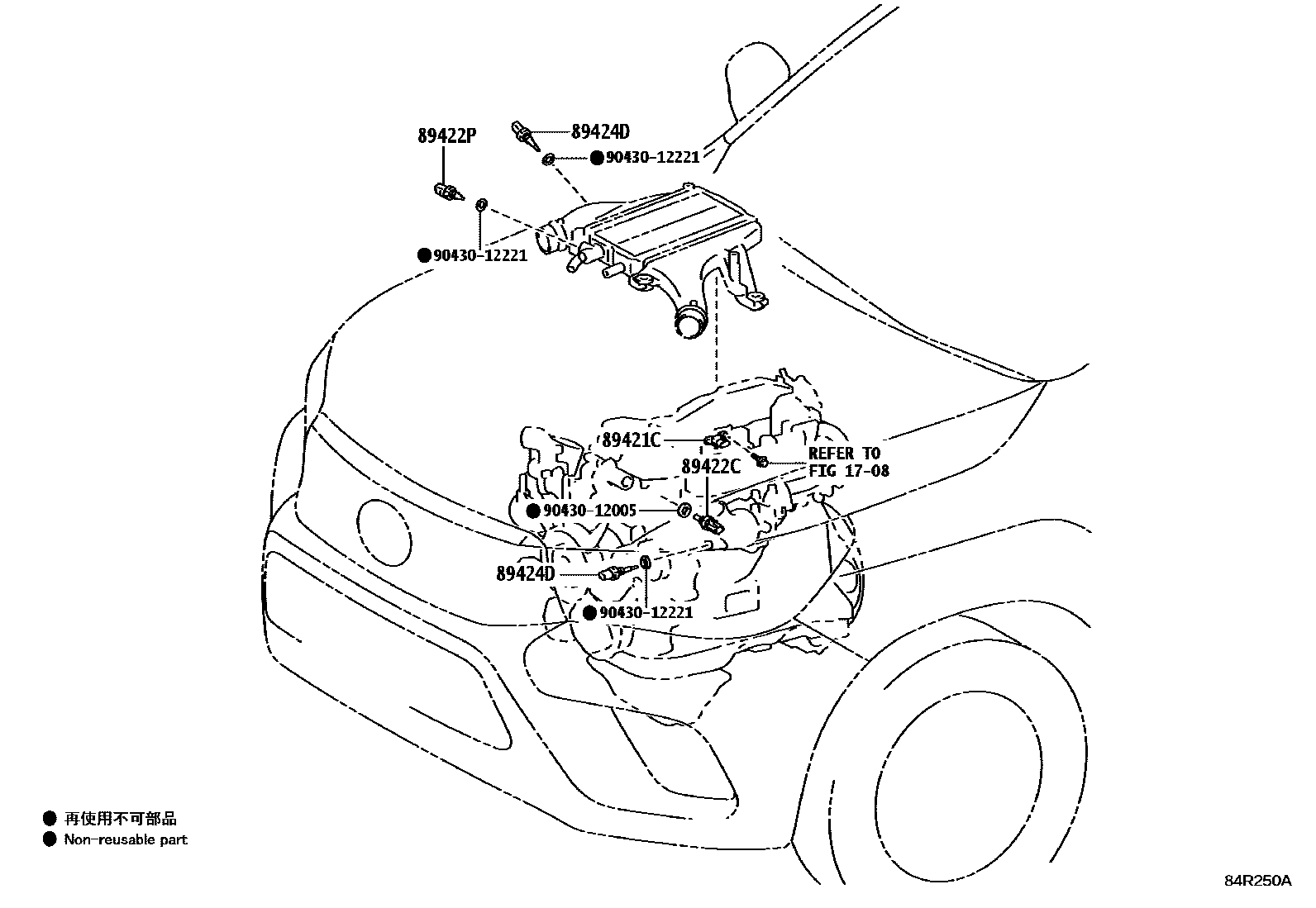

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1�������� 0002 1���

1708VACUUM PIPING

→ Go to FIG 17-08

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71030iGUN125202308-202407

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iGUN125202308-202407

89422PSENSOR, WATER TEMPERATURE

main89422-33030iGUN125202308-202407

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60020iGUN125202308-202407

9043012005

main90430-12005

9043012221

main90430-12221

7 parts on this diagram · 2 diagrams in section
