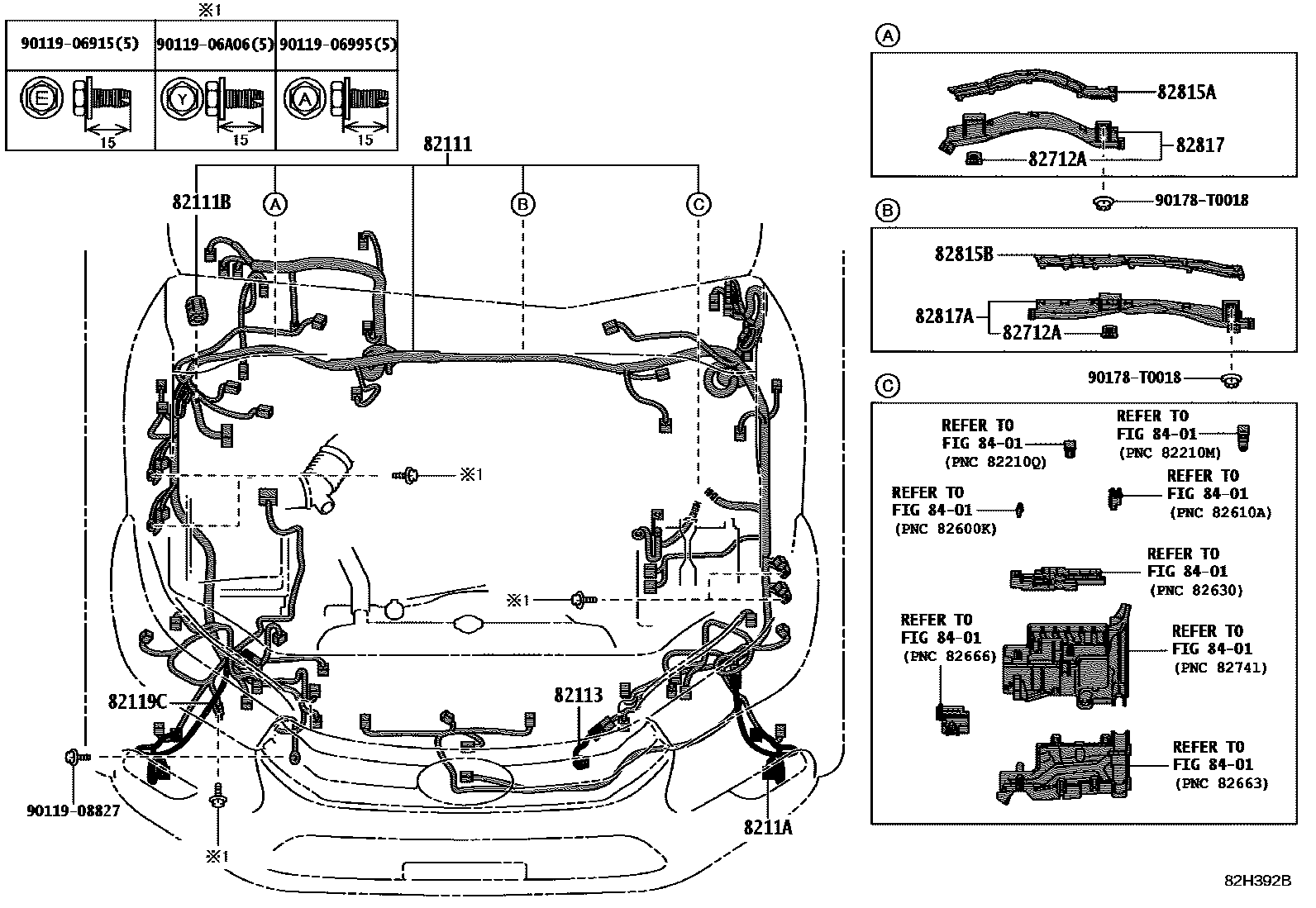

WIRING & CLAMP

0001 1�������� 0002 1����� 0003 1������������ 0004 1��� 0005 1��� & ��� 0006 1��� 0007 1����� & ������ 0008 1����� & ������

82111WIRE, ENGINE ROOM MAIN

main8211H-KKE70iGUN125202308-202407

82111BCONDENSER

main90980-04206iGUN125202308-202407

82113WIRE, ENGINE ROOM, NO.3

main82113-KK020iGUN125202308-202407

82119CWIRE, ENGINE ROOM, NO.5

main82119-KK360supersedes 82119-KK320iGUN125202308-202407

8211AWIRE, ENGINE ROOM, NO.6

main8211A-KK140supersedes 8211A-KK050iGUN125202308-202407

82712ASUPPORT, WIRING HARNESS

main82712-33190×2iGUN125202308-202407

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-0K560iGUN125202308-202407

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-0K550iGUN125202308-202407

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-0K560iGUN125202308-202407

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-0K550iGUN125202308-202407

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9011906995

main90119-06995

9011906A06

main90119-06A06

9011908827

main90119-08827

90178T0018

main90178-T0018

16 parts on this diagram · 8 diagrams in section
