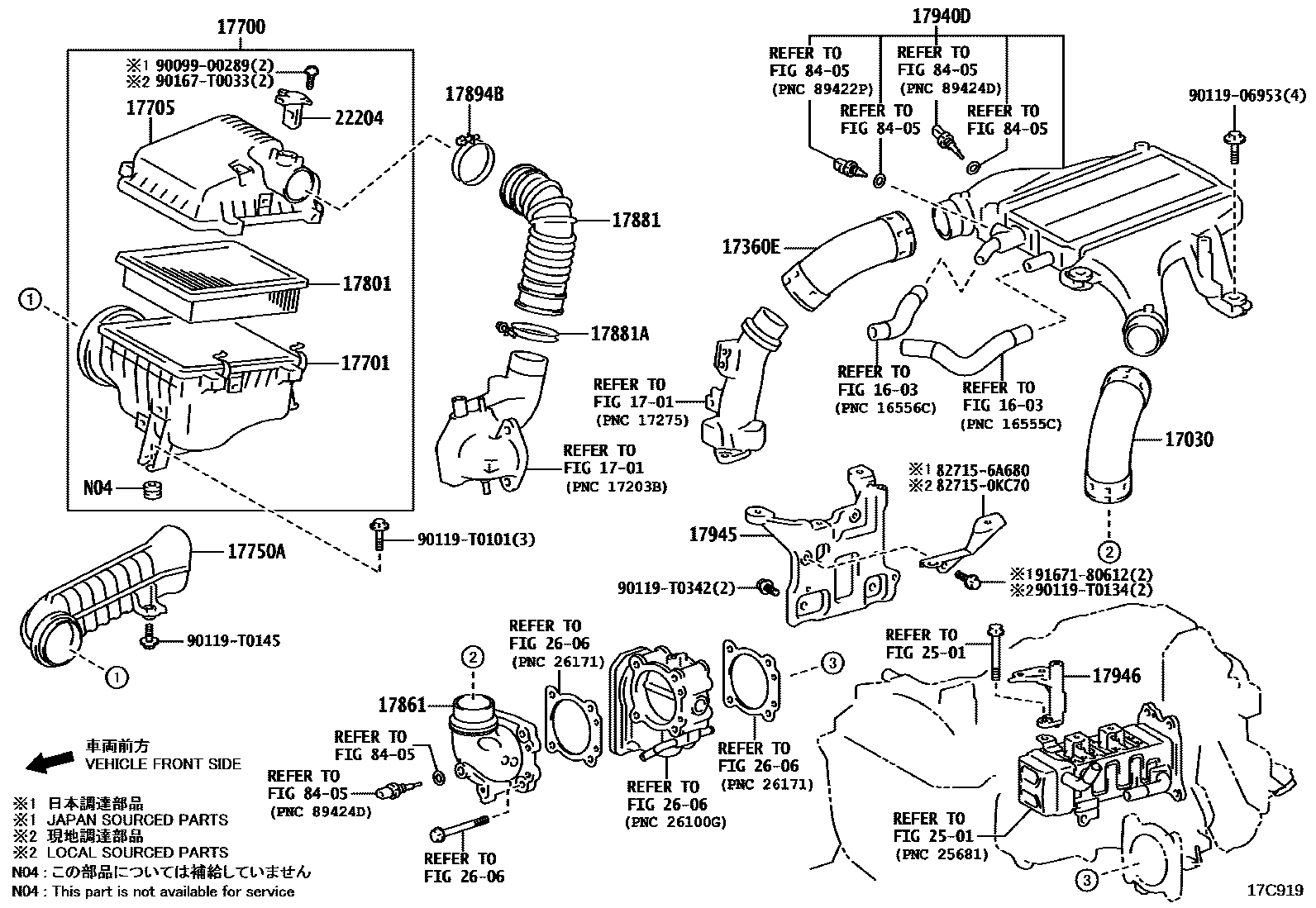

AIR CLEANER

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

17030HOSE ASSY, AIR

main17030-11040i2GDFTV..GUN125202308-202407

17360ETUBE ASSY, AIR, NO.1

main17360-11090i2GDFTV..GUN125202308-202407

17700CLEANER ASSY, AIR

main17700-0L350i2GDFTV..GUN125202308-202407

17701CASE SUB-ASSY, AIR CLEANER

main17701-0C170i2GDFTV..GUN125202308-202407

17705CAP SUB-ASSY, AIR CLEANER

main17705-0L290i2GDFTV..GUN125202308-202407

17750AINLET ASSY, AIR CLEANER

main17750-0E010i2GDFTV..GUN125202308-202407

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0L040i2GDFTV..GUN125202308-202407

17861CONNECTOR, INTAKE AIR

main17861-08010i2GDFTV..GUN125202308-202407

17881HOSE, AIR CLEANER, NO.1

main17881-0E021i2GDFTV..GUN125202308-202407

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0005i2GDFTV..GUN125202308-202407

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main90460-T0020i2GDFTV..GUN125202308-202407

17940DINTERCOOLER ASSY

main17940-11100i2GDFTV..GUN125202308-202407

17945BRACKET, INTERCOOLER SUPPORT

main17945-0E011i2GDFTV..GUN125202308-202407

main17945-11050i2GDFTV..GUN125202308-202407

17946BRACKET, INTERCOOLER SUPPORT, NO.2

main17946-0E010i2GDFTV..GUN125202308-202407

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-30030i2GDFTV..GUN125202308-202407

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

2606VENTURI

→ Go to FIG 26-06

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

827150KC70BRACKET,WIRING HARNESS CLAMP

main82715-0KC70

827156A680BRACKET,WIRING HARNESS CLAMP

main82715-6A680

9009900289

main90099-00289

9011906953

main90119-06953

90119T0101

main90119-T0101

90119T0134

main90119-T0134

90119T0145

main90119-T0145

90119T0342

main90119-T0342

90167T0033

main90167-T0033

9167180612

main91671-80612

30 parts on this diagram · 1 diagram in section
