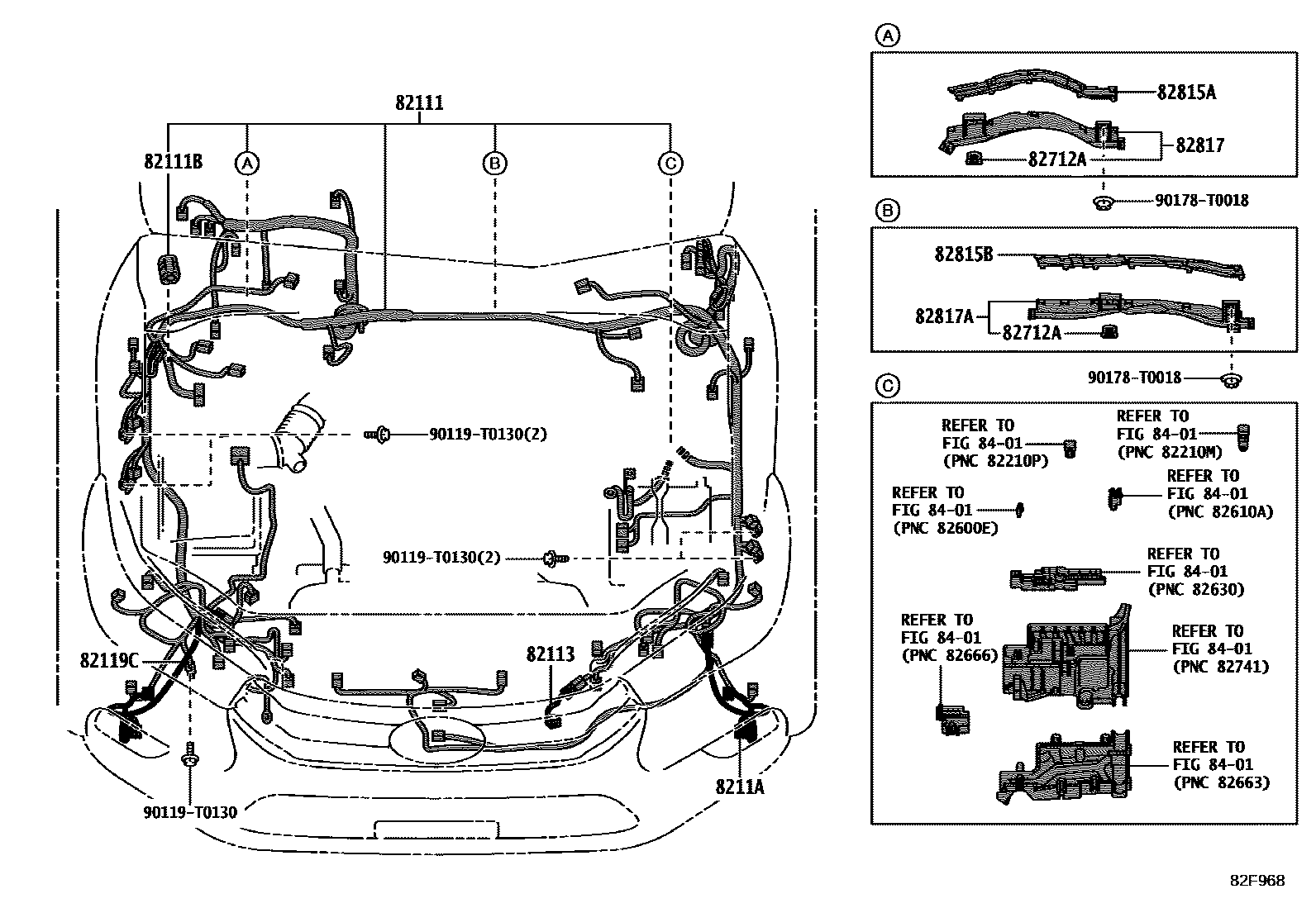

82111WIRE, ENGINE ROOM MAIN

main8211F-KKW90iGUN125..X202208-202307

main8211G-KK850supersedes 8211G-KK840iGUN125..Z202208-202307

82111BCONDENSER

main90980-04206iGUN125202208-202307

82113WIRE, ENGINE ROOM, NO.3

main82113-KK020iGUN125202208-202307

82119CWIRE, ENGINE ROOM, NO.5

main82119-KK060iGUN125..X202208-202307

main82119-KK130supersedes 82119-KK050iGUN125..Z202208-202307

8211AWIRE, ENGINE ROOM, NO.6

main8211A-KK060iGUN125..X202208-202307

main8211A-KK140supersedes 8211A-KK050iGUN125..Z202208-202307

82712ASUPPORT, WIRING HARNESS

main82712-33190×2iGUN125202208-202307

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-0K560iGUN125202208-202307

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-0K550iGUN125202208-202307

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-0K560iGUN125202208-202307

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-0K550iGUN125202208-202307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119T0130

main90119-T0130

90178T0018

main90178-T0018
