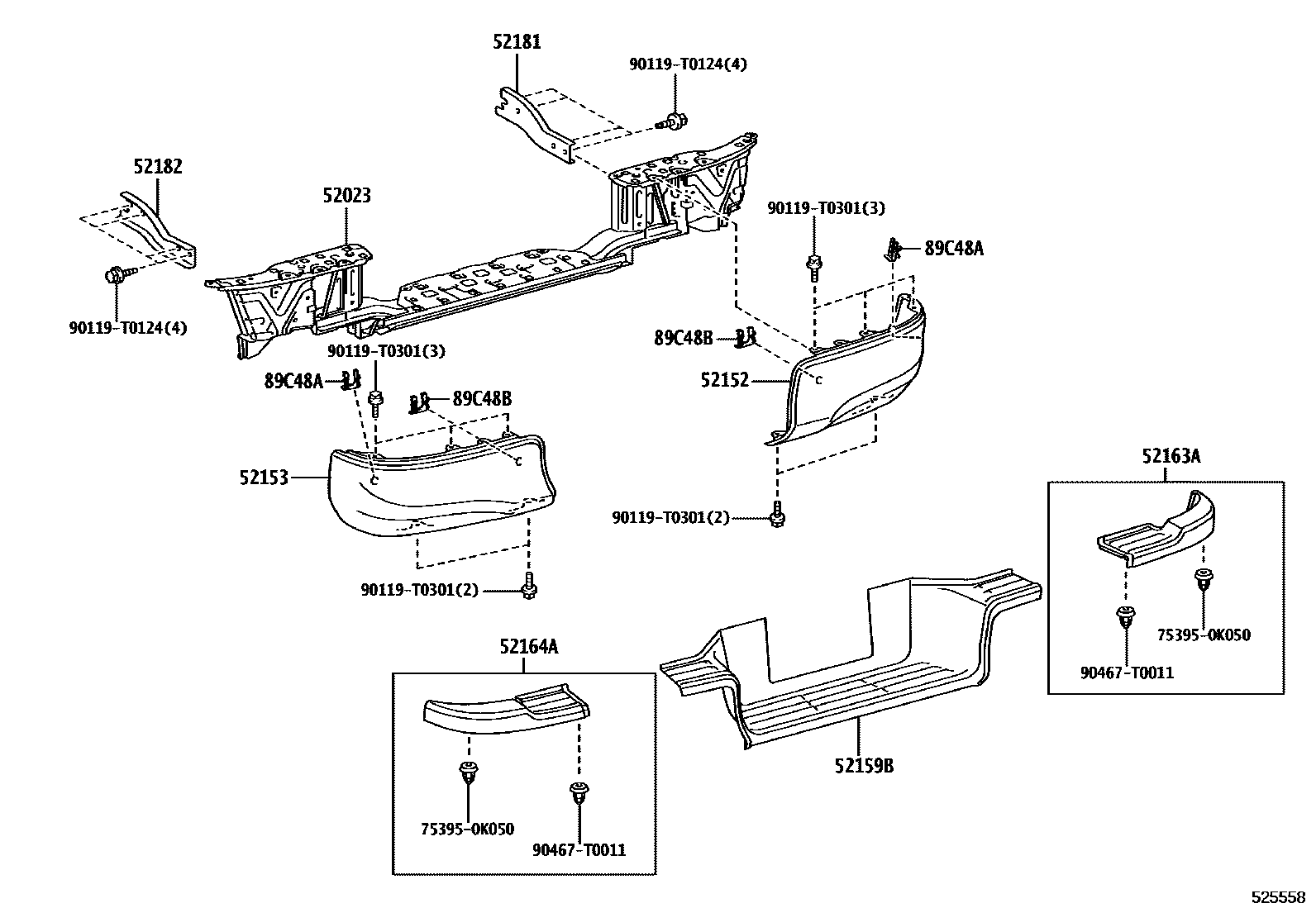

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0K101iGUN125202208-202307

52152BAR, REAR BUMPER, RH

main52151-0K060iGUN125..X202208-202307

main52151-YP010supersedes 52151-0K220iGUN125..Z202208-202307

52153BAR, REAR BUMPER, LH

main52152-0K060iGUN125..X202208-202307

main52152-YP030supersedes 52152-0K220iGUN125..Z202208-202307

52159BPLATE, REAR BUMPER

main52159-0K621iGUN125202208-202307

52163APLATE, REAR BUMPER, RH

main52163-0K030iGUN125202208-202307

52164APLATE, REAR BUMPER, LH

main52164-0K030iGUN125202208-202307

52181ARM, REAR BUMPER, RH

main52181-0K060iGUN125202208-202307

52182ARM, REAR BUMPER, LH

main52182-0K060iGUN125202208-202307

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-71020×2iGUN125..Z202208-202307

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-71030×2iGUN125..Z202208-202307

753950K050CLIP, BACK DOOR MOULDING, NO.1

main75395-0K050

90119T0124

main90119-T0124

90119T0301

main90119-T0301

90467T0011

main90467-T0011

14 parts on this diagram · 1 diagram in section
