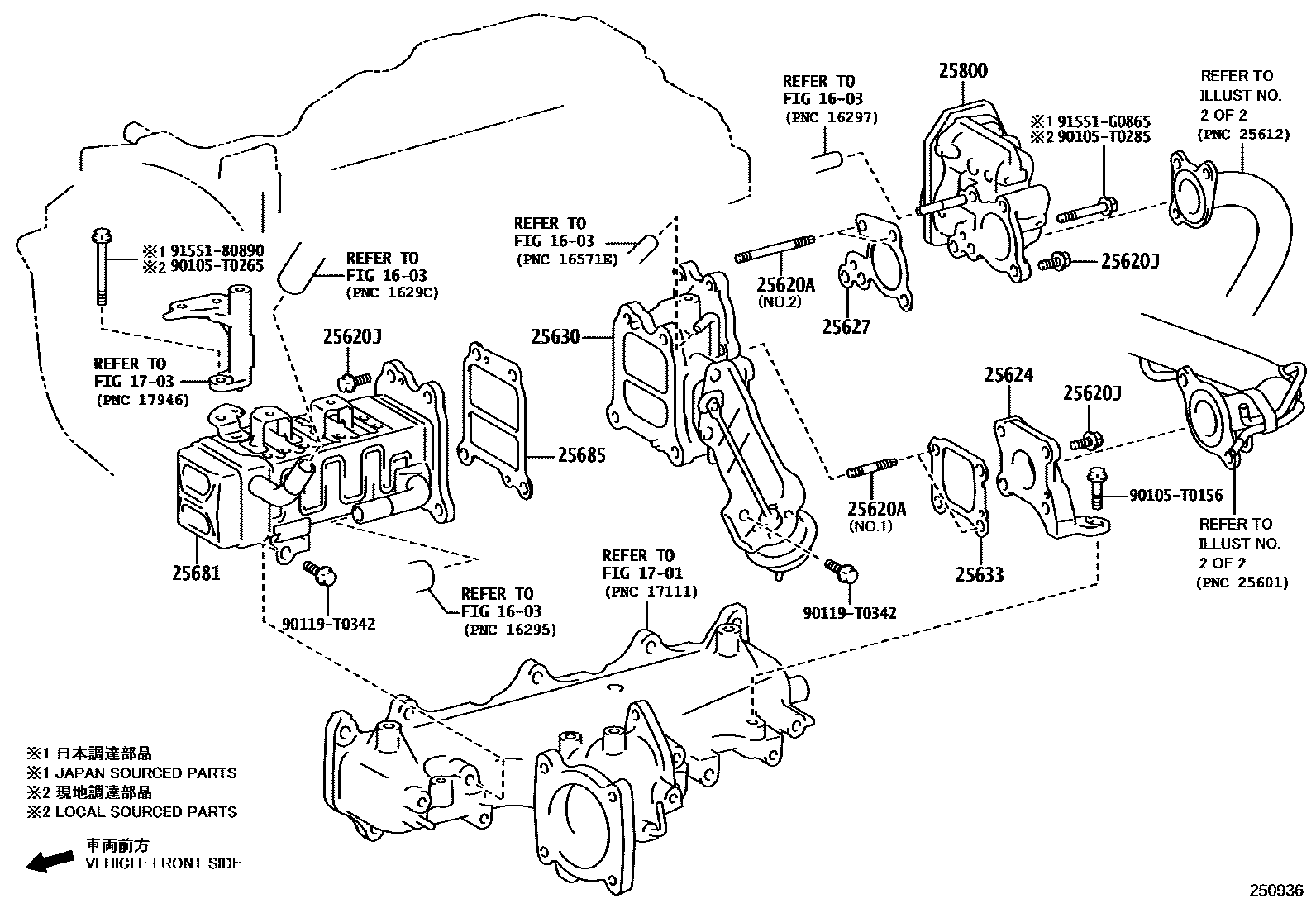

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047×2i2GDFTV..GUN125202208-202307

main90126-T0018×2i2GDFTV..GUN125202208-202307

25620JBOLT(FOR EGR VALVE)

main90119-T0238×7i2GDFTV..GUN125202208-202307

25624ADAPTER, EGR VALVE

main25624-0E010i2GDFTV..GUN125202208-202307

25627GASKET, EGR VALVE

main25627-0E010i2GDFTV..GUN125202208-202307

25630VALVE ASSY, EGR, NO.2

main25630-0E031i2GDFTV..GUN125202208-202307

25633GASKET, EGR VALVE

main25633-0E010i2GDFTV..GUN125202208-202307

25681COOLER, EGR, NO.1

main25681-0W020i2GDFTV..GUN125202208-202307

25685GASKET, EGR COOLER, NO.1

main25685-0E010i2GDFTV..GUN125202208-202307

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0E010i2GDFTV..GUN125202208-202307

90105T0156

main90105-T0156

90105T0265

main90105-T0265

90105T0285

main90105-T0285

90119T0342

main90119-T0342

9155180890

main91551-80890

91551G0865

main91551-G0865

18 parts on this diagram · 2 diagrams in section
