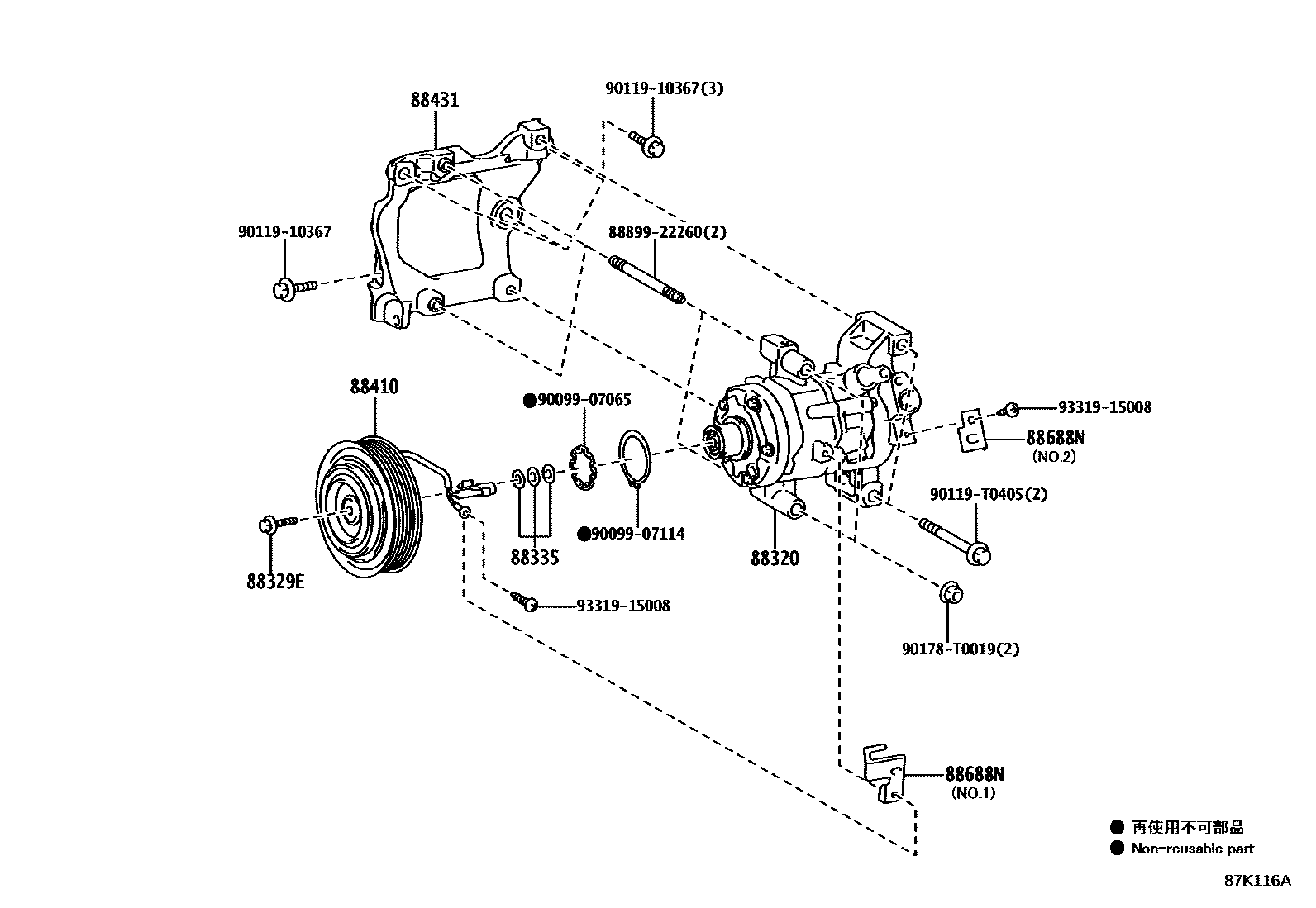

HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-0K520iGUN125202108-202207

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGUN125202108-202207

88335GASKET KIT, OVERHAUL

main88335-14020iGUN125202108-202207

88410CLUTCH ASSY, MAGNET

main88410-0K600iGUN125202108-202207

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0K140iGUN125202108-202207

88688NBRACKET, COOLER

main88849-0K010iGUN125202108-202207

main88849-0K020iGUN125202108-202207

8889922260COVER, EVAPORATOR

main88899-22260

9009907065

main90099-07065

9009907114

main90099-07114

9011910367

main90119-10367

90119T0405

main90119-T0405

90178T0019

main90178-T0019

9331915008

main93319-15008

13 parts on this diagram · 1 diagram in section
