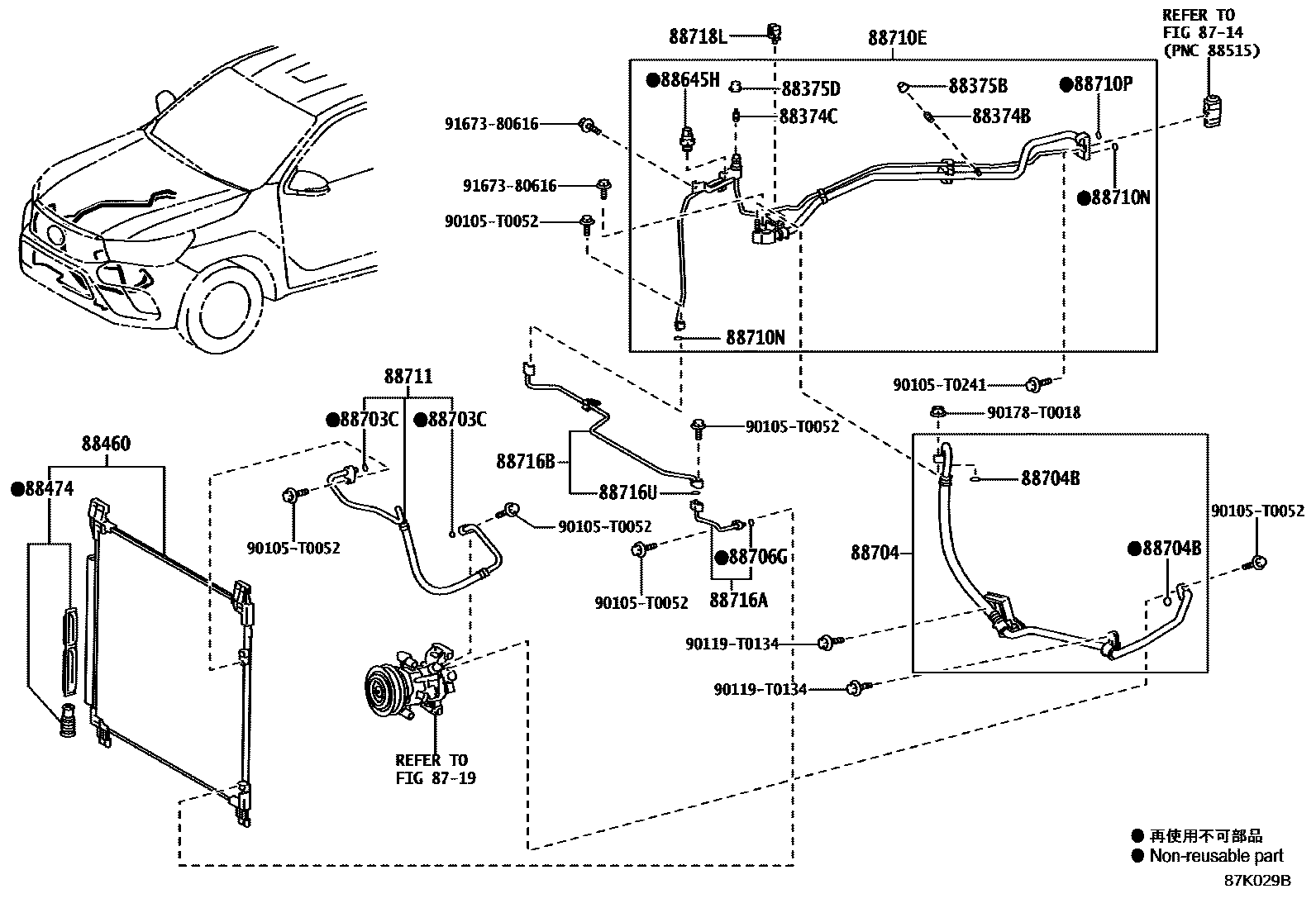

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88645HSWITCH, PRESSURE NO.1
88703CRING, O(FOR DISCHARGE HOSE)
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
88706GRING, O(FOR LIQUID TUBE)
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88716APIPE, COOLER REFRIGERANT LIQUID, A
88716BPIPE, COOLER REFRIGERANT LIQUID, B
88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88718LCLAMP, PIPING
90105T0052
main90105-T0052
90105T0241
main90105-T0241
90119T0134
main90119-T0134
90178T0018
main90178-T0018
9167380616
main91673-80616
26 parts on this diagram · 2 diagrams in section
