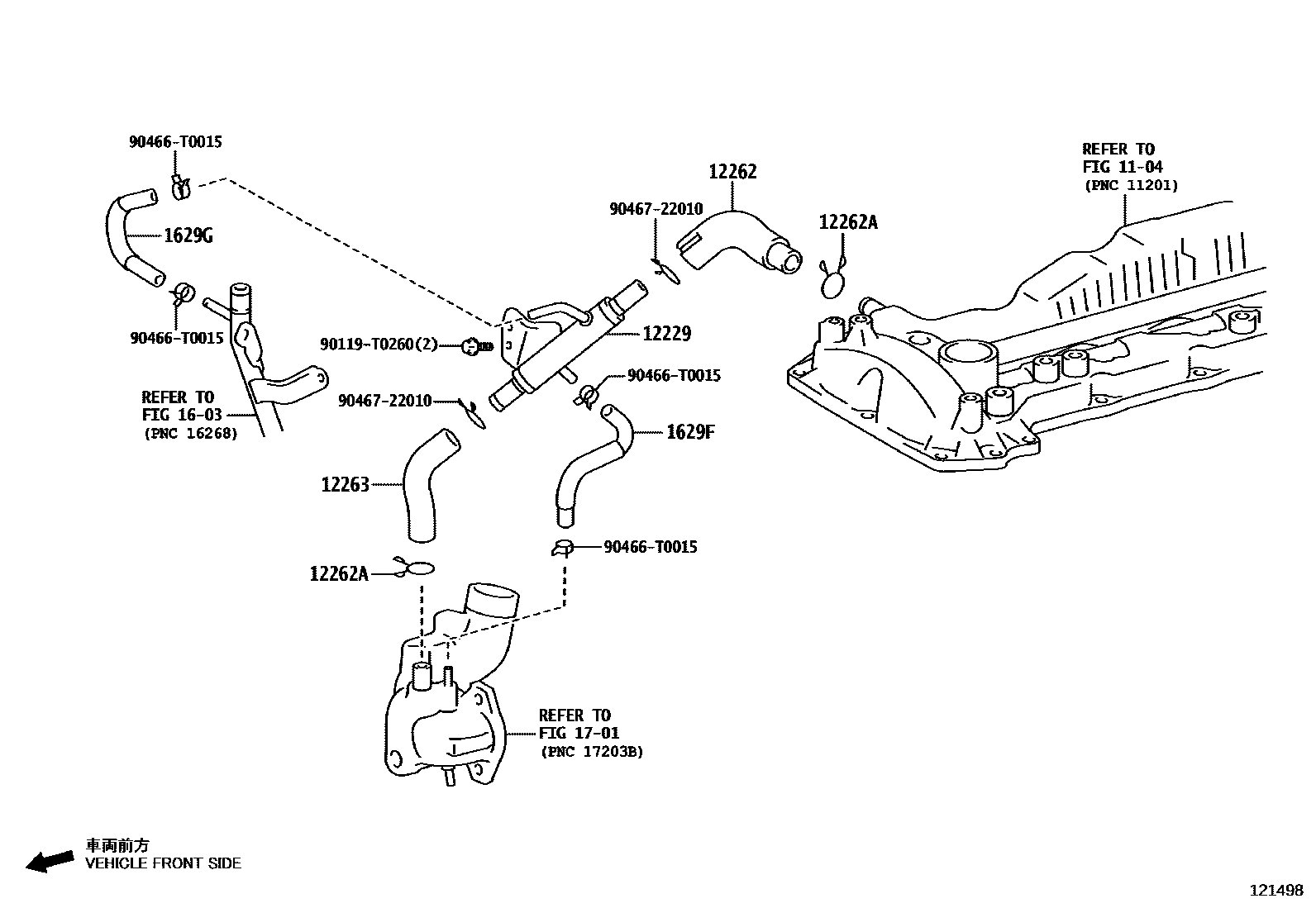

VENTILATION HOSE

1104CYLINDER HEAD

→ Go to FIG 11-04

12229PIPE, VENTILATION

main12229-0E020i2GDFTV..GUN125202108-202207

12262HOSE, VENTILATION, NO.2

main12262-0E020i2GDFTV..GUN125202108-202207

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-22005×2i2GDFTV..GUN125202108-202207

12263HOSE, VENTILATION, NO.3

main12263-0E020i2GDFTV..GUN125202108-202207

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1629FHOSE, WATER BY-PASS, NO.19

main1629F-0E020i2GDFTV..GUN125202108-202207

1629GHOSE, WATER BY-PASS, NO.20

main1629G-0E020i2GDFTV..GUN125202108-202207

1701MANIFOLD

→ Go to FIG 17-01

90119T0260

main90119-T0260

90466T0015

main90466-T0015

9046722010

main90467-22010

12 parts on this diagram · 1 diagram in section
