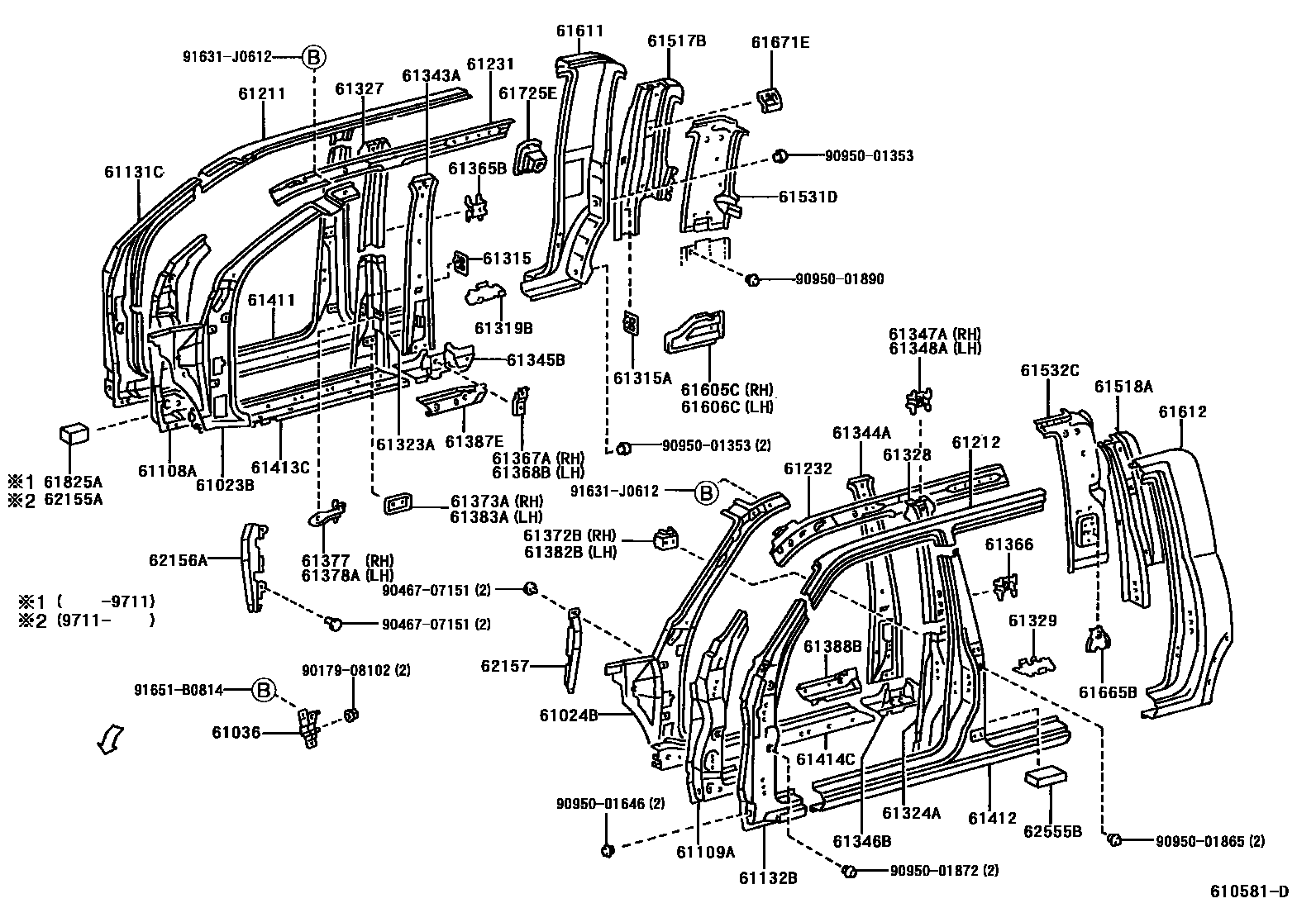

SIDE MEMBER

0001 1 0002 1 0003 1

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-35130iLN172,RZN152,169,174200108-200407

main61023-35190iLN147,167,RZN147200108-200407

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-35090iLN172,RZN152,169,174200108-200407

main61024-35100iLN147,167,RZN147..D199708-200108

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-35010iLN147,16#,17#,RZN147,152,16#,174199708-200108

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-35030iLN165,170,RZN167199708-199908

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-35030iLN147,167,172200108-200407

61131CPILLAR, FRONT BODY, OUTER RH

main61131-35030iRZN147,152,174200108-200308

main61131-35040iLN147,167,RZN147,169..TW1199910-200108

61132BPILLAR, FRONT BODY, OUTER LH

main61132-35030iRZN147,152,174200108-200308

main61132-35040iRZN169200108-200308

61211RAIL, ROOF SIDE, OUTER RH

main61211-35030iRZN147,152,174200108-200308

main61211-35040iLN147,167..TW1200108-200407

61212RAIL, ROOF SIDE, OUTER LH

main61212-35030iLN147,167,172..T1,T3200108-200407

main61212-35040iRZN169200108-200308

61231RAIL, ROOF SIDE, INNER RH

main61231-35150iLN147,16#,RZN147,16#..TW1199708-200108

main61231-35160iLN147,167,17#,RZN147,152,174..T1,T3199708-200108

61232RAIL, ROOF SIDE, INNER LH

main61232-35140iLN147,16#,RZN147,16#..TW1199708-200108

main61232-35150iLN147,167,17#,RZN147,152,174..T1,T3199708-200108

61315RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020iRZN147,152,174; RZN169200108-200308

61315ARETAINER, DOOR LOCK STRIKER

main61315-22020iLN165,RZN167199708-199908

61319BPLATE, CENTER BODY PILLAR, OUTER RH

main61319-35010iLN165,RZN167199708-199908

61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH

main61323-35030iLN165,RZN167199708-199908

61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH

main61324-35030iLN165,RZN167199708-199908

61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH

main61327-35030iLN147,167,RZN147,169..TW1199708-200108

61328REINFORCEMENT, CENTER BODY PILLAR, OUTER LH

main61328-35030iLN147,167,RZN147,169..TW1199708-200108

61329PLATE, CENTER BODY PILLAR, OUTER LH

main61329-35010iLN165,RZN167199708-199908

61343APILLAR, CENTER BODY, INNER RH

main61343-35030iLN147,16#,RZN147,16#..TW1199708-200108

61344APILLAR, CENTER BODY, INNER LH

main61344-35030iLN147,16#,RZN147,16#..TW1199708-200108

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-35030iLN165,RZN167199708-199908

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-35030iLN147,167..TW1200108-200407

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-04010×2iLN17#,RZN152,174199711-200108

main61348-35020iLN147,16#,RZN147,16#..TW1199708-200108

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61347-04010×2iLN17#,RZN152,174199711-200108

main61348-35020iLN147,16#,RZN147,16#..TW1199708-200108

61365BREINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH

main61365-35010iRZN169200108-200308

61366REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH

main61366-35010iLN147,16#,RZN147,16#..TW1199708-200108

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-35020iLN165,RZN167199708-199908

61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

main61368-35020iLN165,RZN167199708-199908

61372BREINFORCE, CENTER PILLAR UPPER HINGE, NO.2 RH

main61371-35010iLN165,RZN167199708-199908

61373AREINFORCE, CENTER PILLAR LOWER HINGE, NO.1 RH

main61373-35010iLN165,RZN167199708-199908

61377BRACKET, REAR DOOR CHECK ARM, RH

main61377-35010iLN165,RZN167199708-199908

61378ABRACKET, REAR DOOR CHECK ARM, LH

main61377-35010iLN165,RZN167199708-199908

61382BREINFORCE, CENTER PILLAR UPPER HINGE, NO.2 LH

main61371-35010iLN165,RZN167199708-199908

61383AREINFORCE, CENTER PILLAR LOWER HINGE, NO.1 LH

main61373-35010iLN165,RZN167199708-199908

61387EEXTENSION, CENTER BODY PILLAR, LOWER RH

main61387-35010iLN165,RZN167199708-199908

61388BEXTENSION, CENTER BODY PILLAR, LOWER LH

main61388-35010iLN165,RZN167199708-199908

61411PANEL, ROCKER, OUTER RH

main61411-35070iLN147,167,17#,RZN147,152,174..T1,T3199708-200108

main61411-35080iLN147,167..TW1200108-200407

61412PANEL, ROCKER, OUTER LH

main61412-35070iRZN147,152,174200108-200308

main61412-35080iLN147,167..TW1200108-200407

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-35030iLN165,170,RZN167199708-199908

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-35030iLN165,170,RZN167199708-199908

61517BREINFORCEMENT, QUARTER LOCK PILLAR, RH

main61517-04050iLN170199711-199908

main61517-35010iLN147,167,RZN147..SCB199708-200108

main61517-35030iLN147,167..TW1200108-200407

61518AREINFORCEMENT, QUARTER LOCK PILLAR, LH

main61518-04050iLN172200108-200407

main61518-35010iRZN147200108-200308

main61518-35030iLN147,167,RZN147,169..TW1199708-200108

61531DPANEL, CAB REAR PILLAR, INNER RH

main61531-35020iRZN147200108-200308

main61531-35040iLN147,167..TW1200108-200407

main61531-35060iRZN169200108-200308

61532CPANEL, CAB REAR PILLAR, INSIDE LH

main61532-35020iLN147,167,RZN147..SCB199708-200108

main61532-35040iLN147,167..TW1200108-200407

main61532-35060iLN16#,RZN147,16#..Q199708-200108

61605CPANEL SUB-ASSY, QUATER, REAR INNER RH

main61567-35030iLN147,16#,RZN147,16#..TW1199708-200108

61606CPANEL SUB-ASSY, QUATER, REAR INNER LH

main61568-35030iLN147,16#,RZN147,16#..TW1199708-200108

61611PANEL, QUARTER, RH

main61611-35090iLN147,167,RZN147..SCB199708-200108

main61611-35100iLN172200108-200407

main61611-35120iRZN169200108-200308

61612PANEL, QUARTER, LH

main61612-35080iRZN147200108-200308

main61612-35090iRZN152,174200108-200308

main61612-35100iLN147,167..TW1200108-200407

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-35020iLN147,16#,RZN147,16#..TW1199708-200108

main61675-35020iRZN152,174200108-200308

61671EREINFORCEMENT, SEAT BELT ANCHOR, UPPER

main61671-35010iLN165,RZN167199708-199908

61725EBOX, FUEL INLET

main61725-35010iLN165,RZN167199708-199908

61825APLATE, NOISE CONTROL, NO.2

main62151-20170×2iLN147,16#,RZN147,167..TW1; LN147,167,RZN147..SCB199708-199711

62155APAD, COWL SIDE LOWER SILENCER

main62155-89101×2iLN147,16#,17#,RZN147,152,16#,174199711-200108

62156AINSULATOR, COWL SIDE, RH

main62156-35020iLN147,16#,17#,RZN147,152,16#,174199708-200108

62157INSULATOR, COWL SIDE, LH

main62157-35020iLN147,16#,17#,RZN147,152,16#,174199708-200108

62555BPAD, PILLAR, NO.5

main62555-35010×2iLN147,16#,RZN147,16#..TW1199708-200108

9017908102

main90179-08102

9046707151

main90467-07151

9095001353

main90950-01353

9095001646

main90950-01646

9095001865

main90950-01865

9095001872

main90950-01872

9095001890

main90950-01890

91631J0612

main91631-J0612

91651B0814

main91651-B0814

66 parts on this diagram · 3 diagrams in section
