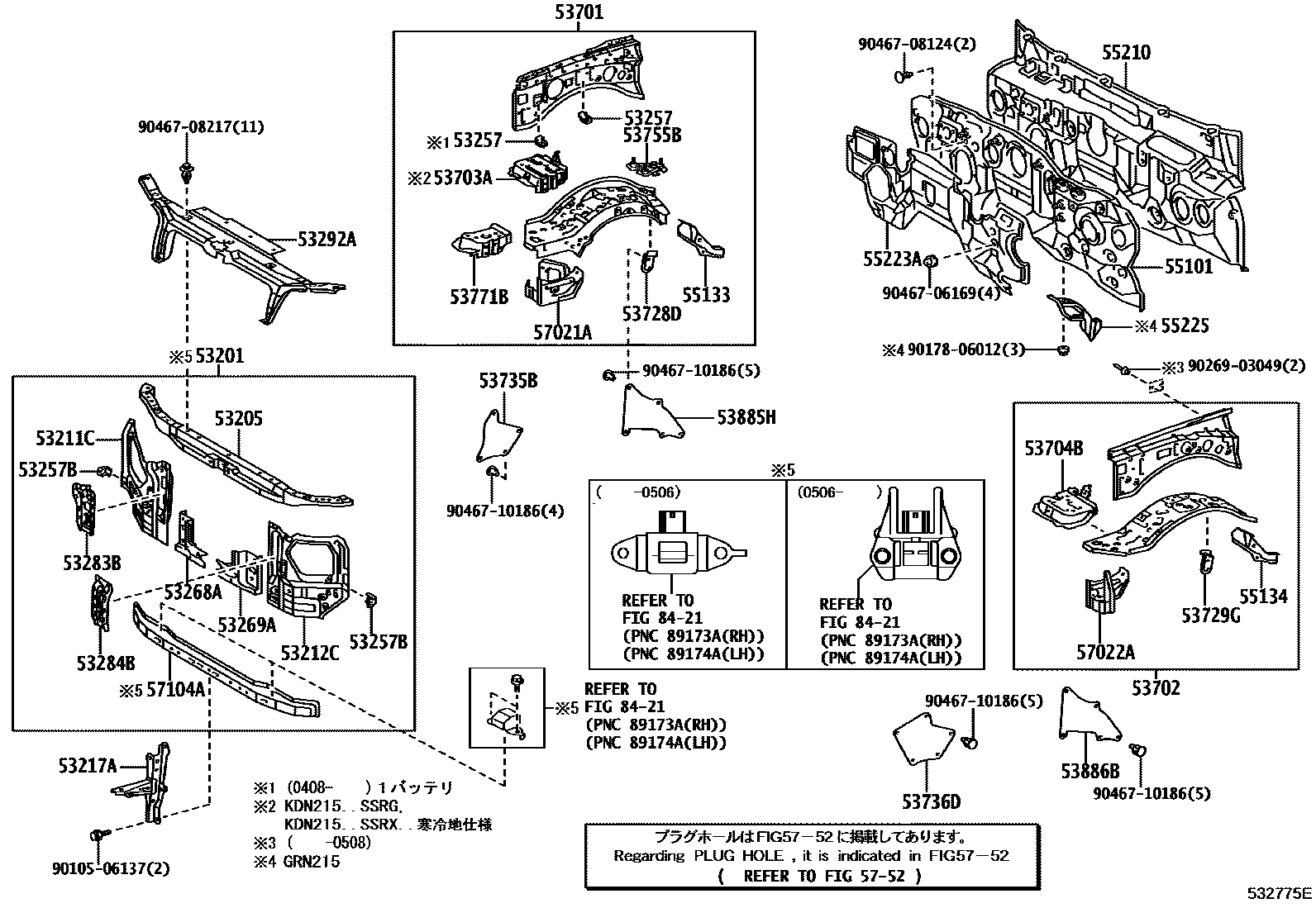

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-35210iRZN21#200211-200408

main53201-35211iKDN215,TRN21#,VZN21#200412-200506

main53201-35212iKDN215,TRN21#,VZN21#200506-200508

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-35020iGRN215,TRN21#200508

53211CSUPPORT, RADIATOR, RH

main53211-35160iKDN215,TRN21#,VZN21#200211-200412

main53211-35161iKDN215,TRN21#,VZN21#200412-200508

53212CSUPPORT, RADIATOR, LH

main53212-35100iRZN21#200211-200408

main53212-35101iKDN215,TRN21#,VZN21#200412-200508

53217ABRACE, HOOD LOCK SUPPORT

main53209-35010iRZN21#200211-200408

main53209-35020iGRN215,TRN21#200508-200908

53257BRACKET, FRONT END PANEL MOUNTING, RH

main53257-35030iKDN215..SSRG; KDN215..SSRX; TRN215,VZN215;KDN215,TRN210,VZN210..SSRX200506-200508

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35050×2iKDN215,TRN21#,VZN21#200211-200505

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-35040iRZN21#200211-200408

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-35040iGRN215,TRN21#200508

53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH

main53283-35030iRZN21#200211-200408

53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH

main53284-35020iRZN21#200211-200408

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-35010iRZN21#200211-200408

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-3D490iGRN215200508-200511

main53701-3D491iGRN215200512-200812

main53701-3D492iGRN215200901-200908

main53701-3D500iRZN215,VZN215;KDN215,RZN210,VZN210..SSRX200211-200408

main53701-3D510iKDN215..SSRG; KDN215..SSRX200211-200505

main53701-3D511iKDN215..SSRG; KDN215..SSRX200506-200508

main53701-3D520iTRN215,VZN215;KDN215,TRN210,VZN210..SSRX200408-200505

main53701-3D521iTRN21#200508-200511

main53701-3D522iTRN21#200512-200812

main53701-3D523iTRN21#200901-200908

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-3D550iRZN21#,VZN21#200211-200408

main53702-3D551iTRN21#,VZN21#200408-200508

main53702-3D552iGRN215,TRN21#200512-200812

main53702-3D553iGRN215,TRN21#200901-200908

main53702-3D560iKDN215200211-200508

53703ASUPPORT SUB-ASSY, BATTERY, RH

main53703-35040iKDN215..SSRG; KDN215..SSRX200211-200505

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-35080iKDN215,RZN21#,VZN21#200211-200408

main53704-35081iKDN215,TRN21#,VZN21#200408-200508

main53704-35082iGRN215,TRN21#200904

53728DBRACKET, FENDER APRON, RH

main53728-35060iKDN215,TRN21#,VZN21#200211-200505

53729GBRACKET, FENDER APRON, LH

main53728-35060iRZN21#200211-200408

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-35150iKDN215,TRN21#,VZN21#200211-200508

53736DSEAL, FENDER APRON

main53736-35150iRZN21#200211-200408

53755BREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-35060iGRN215,TRN21#200508-200511

main53755-35061iGRN215,TRN21#200512-200908

53771BSUPPORT, BATTERY CARRIER, RH

main53771-35080iRZN21#200211-200408

53885HSEAL, FENDER APRON MUDGUARD, RH

main53885-35020iRZN21#,TRN21#200211-200508

main53886-35020iGRN215200508-200908

53886BSEAL, FENDER APRON MUDGUARD, LH

main53886-35020iGRN215,TRN21#200508-200908

55101PANEL SUB-ASSY, DASH

main55101-35A10iKDN215,TRN21#200408-200409

main55101-35A11iTRN21#200508-200908

main55101-35A20iGRN215200508-200908

main55101-3M490supersedes 55101-3M480iKDN215200211-200408

main55101-3M510supersedes 55101-3M500iRZN21#200211-200408

main55101-3M530supersedes 55101-3M521iVZN21#200211-200408

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-35020iRZN21#200211-200408

main55133-35021iKDN215,TRN21#,VZN21#200504-200505

main55133-60060iGRN215,TRN21#200809-200908

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-35020iKDN215,TRN21#,VZN21#200211-200508

main55134-60070iGRN215,TRN21#200809

55210INSULATOR ASSY, DASH PANEL

main55210-35360iRZN21#200211-200408

main55210-35361iKDN215,TRN21#,VZN21#200409-200508

55223AINSULATOR, DASH PANEL, OUTER

main55223-35080iKDN215,RZN21#,VZN21#200211-200403

main55223-35081iRZN21#200403-200408

main55223-35082iGRN215,TRN21#200604-200804

main55223-35083iGRN215,TRN21#200805

55225INSULATOR, DASH PANEL HEAT

main55225-35170iGRN215200508

57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-35060iRZN21#200211-200408

57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-35050iRZN21#200211-200408

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-35050iKDN215,RZN21#,TRN21#,VZN21#200211-200506

main57104-35060iKDN215,TRN21#,VZN21#200506-200508

main57104-35061iGRN215,TRN21#200809

5752HOLE PLUG

→ Go to FIG 57-52

8421AIR BAG

→ Go to FIG 84-21

9010506137

main90105-06137

9017806012

main90178-06012

9026903049

main90269-03049

9046706169

main90467-06169

9046708124

main90467-08124

9046708217

main90467-08217

9046710186

main90467-10186

42 parts on this diagram · 1 diagram in section
