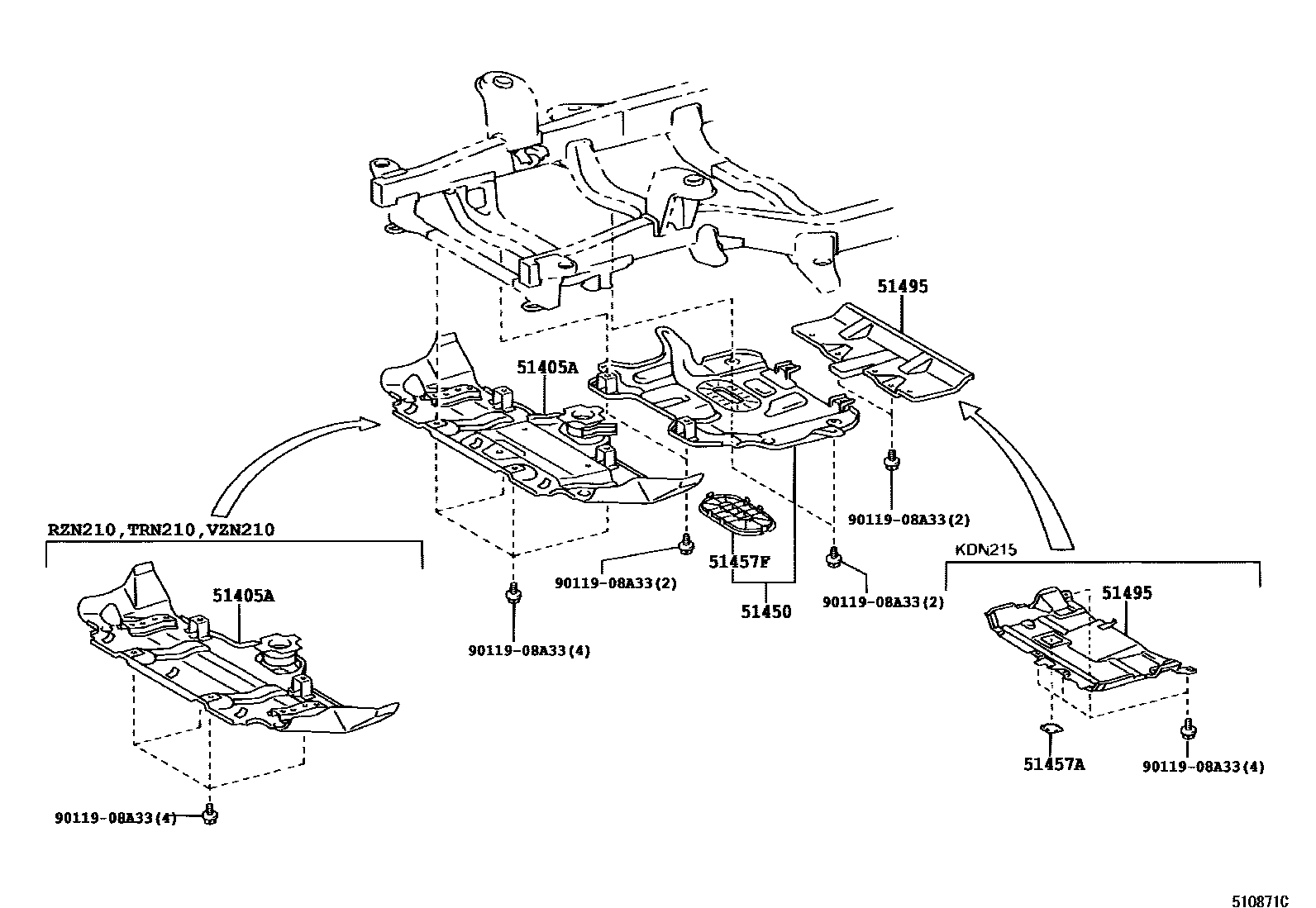

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35100iRZN215,VZN215200211-200310

main51405-35101iRZN215200310-200408

main51405-35140iTRN210,VZN210200211-200508

main51440-35010iKDN215200211-200310

main51440-35011iKDN215200310-200508

51450COVER ASSY, ENGINE UNDER, REAR

main51450-35010iTRN21#,VZN21#200211-200508

main51450-35020iGRN215200508

51457ABRACKET, ENGINE UNDER COVER, NO.3

main51457-35020iKDN215200211-200508

51457FSEAL, ENGINE UNDER COVER

main51457-35030iGRN215,TRN21#200508

51495COVER, TRANSMISSION UNDER

main51495-35040iKDN215200211-200508

main51495-35050iRZN215200211-200408

9011908A33

main90119-08A33

6 parts on this diagram · 1 diagram in section
