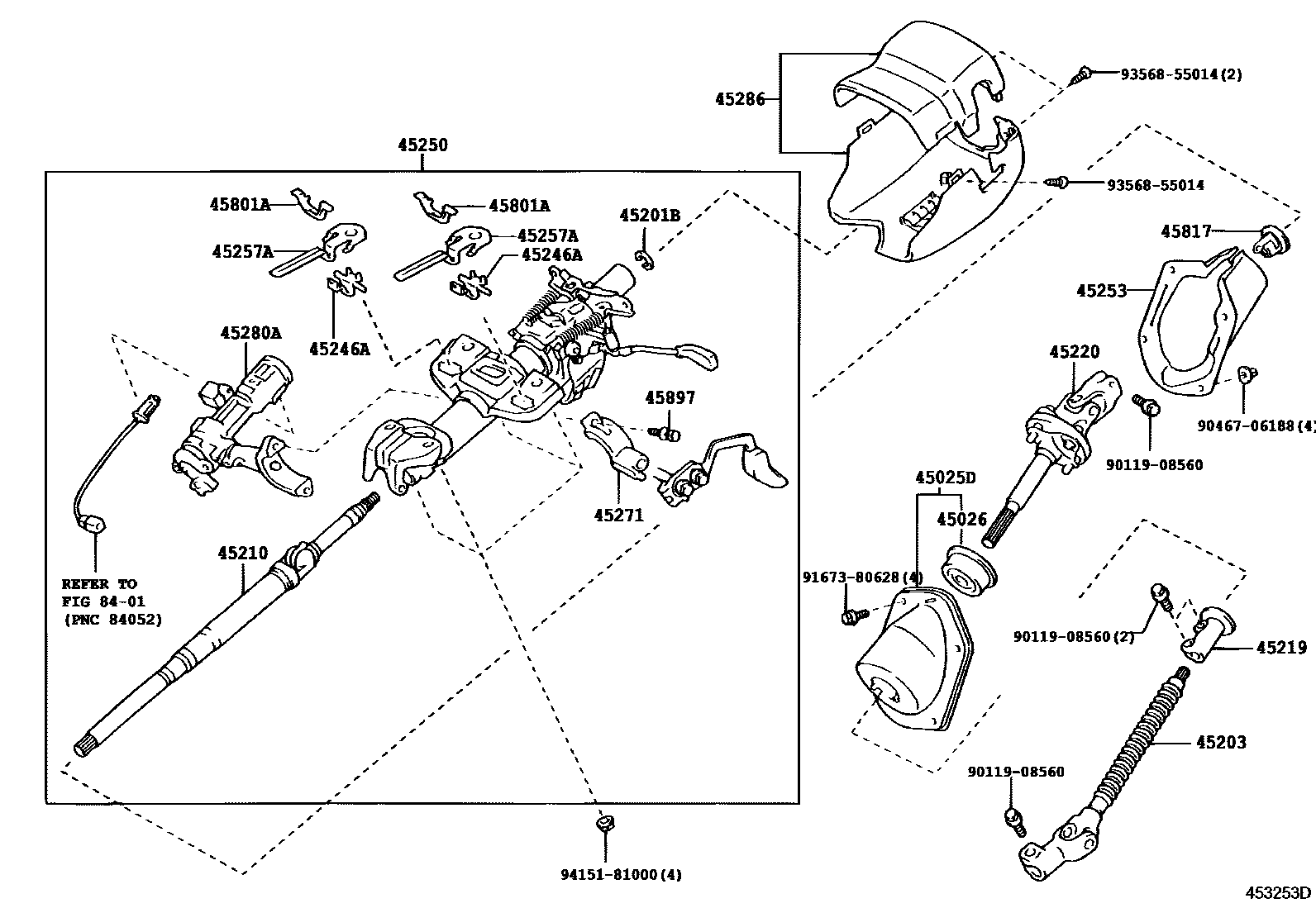

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-35380iRZN21#200211-200408

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-35060iRZN21#200211-200408

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iRZN21#200211-200408

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-35320iRZN21#200211-200408

45210SHAFT ASSY, STEERING MAIN

main45210-35250iRZN21#200211-200408

45219YOKE, STEERING SLIDING

main45219-35170iRZN21#200211-200408

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-35180iRZN21#200211-200408

45246AGUIDE, STEERING ENERGY ABSORBING PLATE

main45246-28040×2iRZN21#200211-200408

45250COLUMN ASSY, STEERING

main45250-3D870iRZN21#200211-200408

45253COVER, STEERING COLUMN HOLE

main45253-35360iRZN21#200211-200408

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-28010×2iRZN21#200211-200408

45271CLAMP, STEERING COLUMN, UPPER

main45271-22010iRZN21#200211-200408

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-35390iRZN21#200211-200408

45286COVER, STEERING COLUMN

main45286-35913-B0iRZN21#200211-200408

DK.GRAY,TRIM1#,4#

45801APIN SUB-ASSY, STEERING ENERGY ABSORBING

main45875-12010×2iRZN21#200211-200408

45817STOPPER, STEERING SHAFT THRUST

main45817-35050iRZN21#200211-200408

45897BOLT, STEERING LOCK SET

main45897-12020×2iRZN21#200211-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9046706188

main90467-06188

9167380628

main91673-80628

9356855014

main93568-55014

9415181000

main94151-81000

23 parts on this diagram · 1 diagram in section
