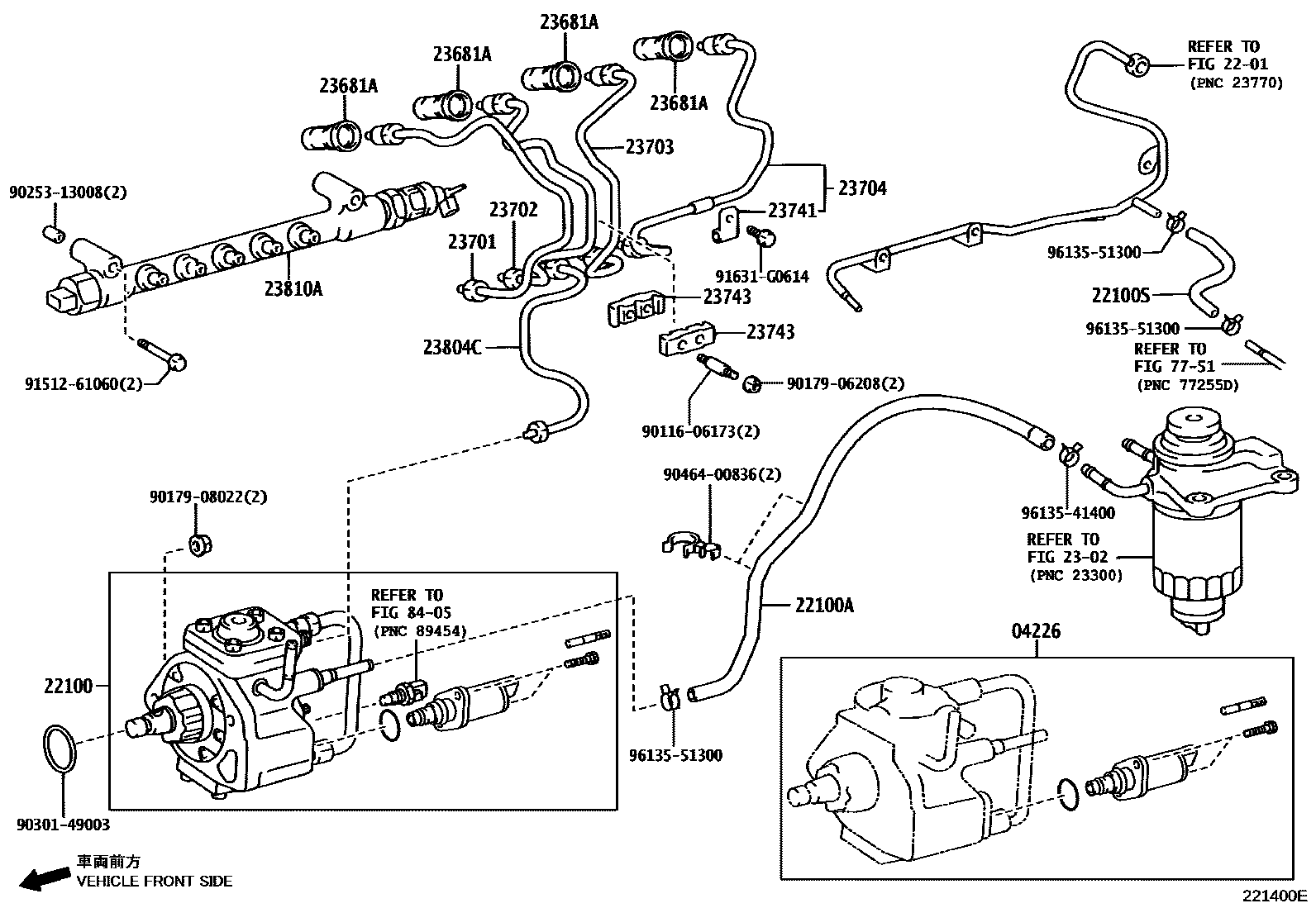

INJECTION PUMP ASSEMBLY

04226VALVE KIT, SUCTION CONTROL

main04226-30020i1KDFTV..KDN215200211-200508

2201INJECTION NOZZLE

→ Go to FIG 22-01

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-30021i1KDFTV..KDN215200211

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-30120i1KDFTV..KDN215200211

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-30080i1KDFTV..KDN215200211

2302FUEL FILTER

→ Go to FIG 23-02

23681ASEAL, NOZZLE HOLDER

main23681-30010×4i1KDFTV..KDN215200211

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-30030i1KDFTV..KDN215200211

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-30030i1KDFTV..KDN215200211

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-30030i1KDFTV..KDN215200211

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-39035i1KDFTV..KDN215200211

23741CLAMP, INJECTION PIPE, NO.1

main23741-30010i1KDFTV..KDN215200211

23743CLAMP, INJECTION PIPE, NO.3

main23743-30011×2i1KDFTV..KDN215200211

23804CPIPE SUB-ASSY, FUEL INLET

main23804-30030i1KDFTV..KDN215200211

23810ARAIL ASSY, COMMON

main23810-30080i1KDFTV..KDN215200211

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9011606173

main90116-06173

9017906208

main90179-06208

9017908022

main90179-08022

9025313008

main90253-13008

9030149003

main90301-49003

9046400836

main90464-00836

9151261060

main91512-61060

91631G0614

main91631-G0614

9613541400

main96135-41400

9613551300

main96135-51300

27 parts on this diagram · 1 diagram in section
