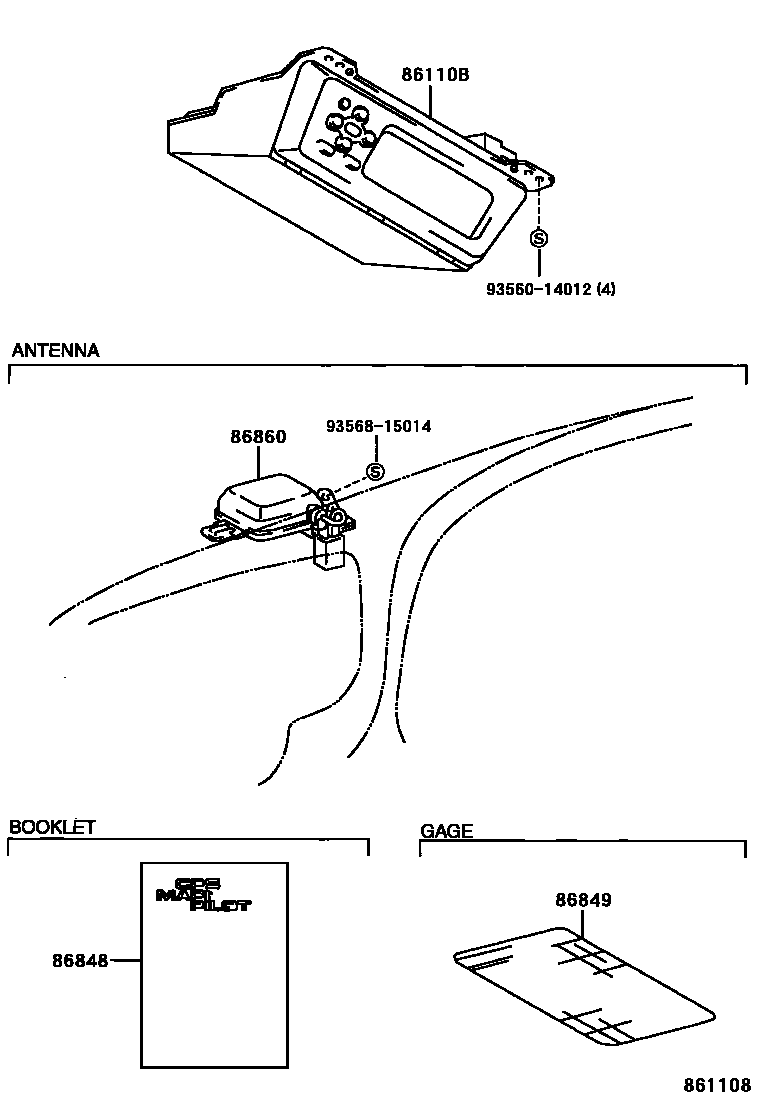

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86110BMULTI-DISPLAY ASSY

main86110-35010iKZN185,RZN185,VZN185..SSRG,SSRX199511-199803

86848BOOKLET, NAVIGATION ATLAS

main86848-35010iKZN185,RZN185,VZN185..SSRG,SSRX199511-199803

86849GAGE, NAVIGATION ATLAS

main86849-35010iKZN185,RZN185,VZN185..SSRG,SSRX199511-199803

86860ANTENNA ASSY, NAVIGATION

main86860-35010iKZN185,RZN185,VZN185..SSRG,SSRX199511-199708

main86860-35020iKDN185,RZN18#,VZN185..WIB200008

9356014012

main93560-14012

9356815014

main93568-15014

6 parts on this diagram · 2 diagrams in section
