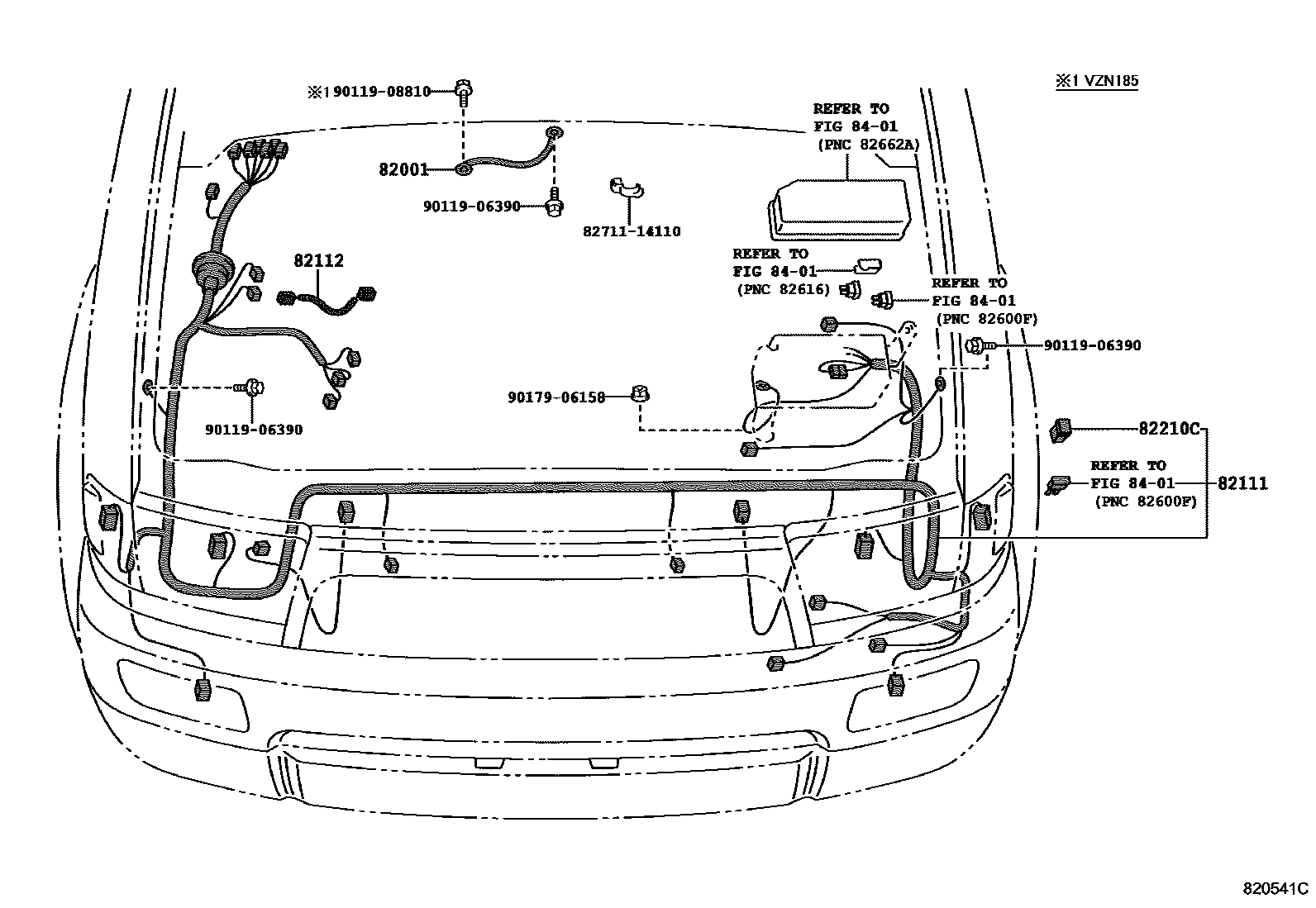

WIRING & CLAMP

0001 1������-� ��� 0002 1������-� 0003 1������-� 0004 1����� ��� 0005 1����� ��� 0006 1����� ��� 0007 1����� ��� 0008 1��� ��� 0009 1�-�,��� & ��� ��� 0010 1����� 0011 1����� 0012 1����� 0013 1����-�� 0014 1����

82001CABLE, BOND, NO.1

main90980-07380iRZN18#199511

main90980-07381iVZN18#199511

82111WIRE, ENGINE ROOM MAIN

main82111-3D490iRZN185199511-199708

main82111-3D500iRZN185199511-199708

main82111-3D501iRZN185; VZN185..SSRX199708-199807

main82111-3D510iRZN185..SSRX199511-199708

main82111-3D520iRZN185..SSRX; VZN185199511-199708

main82111-3D521iRZN185,VZN185..SSRG,SSRX199708-199807

main82111-3D530iKZN185..SSR,SSRV,SSRX199511-199708

main82111-3D540iKZN185..SSR,SSRV,SSRX199511-199708

main82111-3D541iKZN185..SSRX..TDI; KZN185..TDE199708-199807

main82111-3D550iKZN185..SSRX199511-199708

main82111-3D560iKZN185..SSRG; KZN185..SSRX199511-199708

main82111-3D561iKZN185..SSRX199708-199807

main82111-3D570iKZN185..SSR,SSRV,SSRX199511-199708

main82111-3D580iKZN185..SSR,SSRV,SSRX199511-199708

main82111-3D581iKZN185..SSR,SSRV,SSRX199708-199807

main82111-3D590iKZN185..SSRX199511-199708

main82111-3D600iKZN185..SSRG; KZN185..SSRX199511-199708

main82111-3D601iKZN185..SSRG,SSRX199708-199807

main82111-3G400iRZN18#,VZN18#..SPR,SSR,SSRX199807-200008

main82111-3G410iRZN185,VZN185..SSRG199807-200008

main82111-3G420iKZN185..SSRX199807-200008

main82111-3G430iKZN185..SSRX199807-200008

main82111-3G440iKZN185..SSRG199807-200008

main82115-35110iRZN18#,VZN185200008

main82115-35120iKDN185..SSRV,SSRX200008

main82115-35130iKDN185200008

82112WIRE, ENGINE ROOM, NO.2

main82112-60110iVZN185199604-199708

82210CFUSIBLE LINK

main90982-08202iRZN185..SSRV200008

main90982-08203iKDN185,KZN185199511

main90982-08246iRZN185,VZN185;KZN185..SSRX..TDE;KZN185..SSR,SSRG,SSRV199511-199807

main90982-08254iKDN185,KZN185,RZN18#,VZN18#199807

main90982-08273iRZN185;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV199511-199807

main90982-08274iKDN185,KZN185,RZN18#,VZN18#199807

main90982-08280iKDN185,RZN180..SSRG,SSRV,SSRX200008

main90982-08281iKDN185,KZN185,RZN18#,VZN18#199511

main90982-08282iKZN185,RZN185,VZN185199511-199807

main90982-08283iRZN185;KZN185..(SSR,SSRV,SSRX)..TDE;KZN185,RZN180,VZN18#..(SPR,SSRG,SSRX)..(EFI,TDI)199511

main90982-08284iKDN185,KZN185,RZN18#,VZN18#199511

main90982-08285×2iKDN185,KZN185,RZN18#,VZN18#199807

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9011906390

main90119-06390

9011908810

main90119-08810

9017906158

main90179-06158

8 parts on this diagram · 14 diagrams in section
