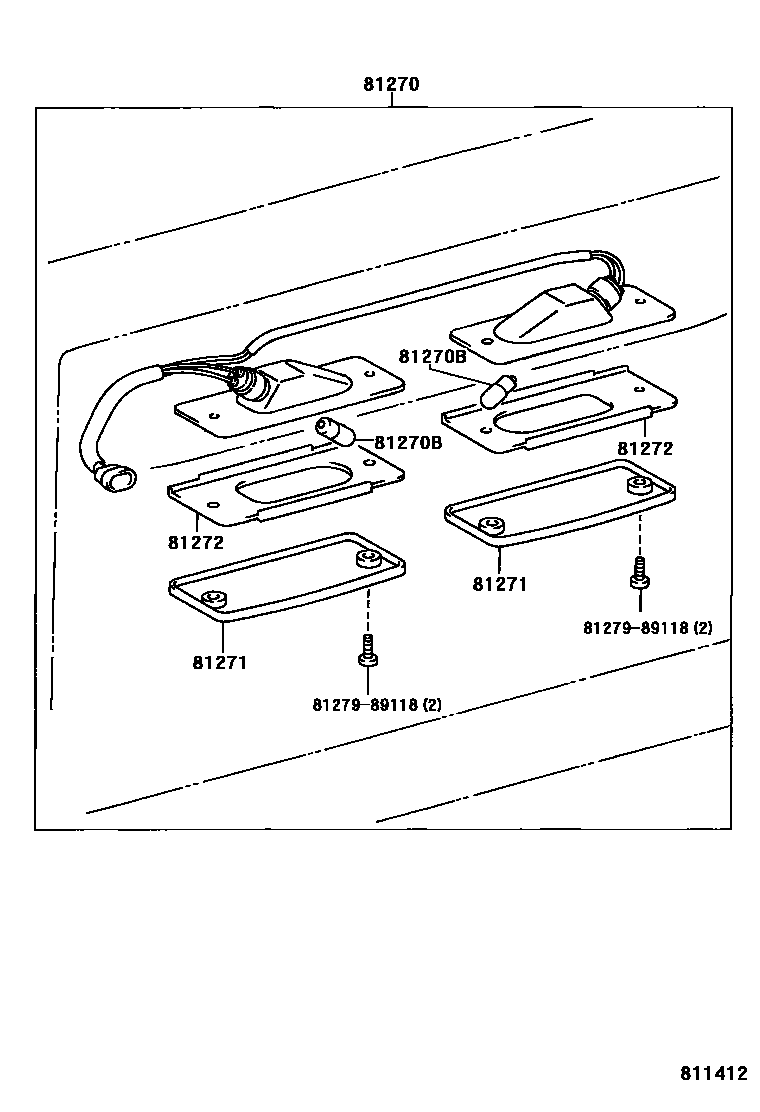

REAR LICENSE PLATE LAMP

0001 1�����������=��-���� 0002 1�����������=����������

81270LAMP ASSY, LICENSE PLATE

main81270-35090iKZN185,RZN185,VZN185199511-199807

main81270-35120iKDN185,KZN185,RZN18#,VZN18#199807

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iKDN185,KZN185,RZN18#,VZN18#; KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)199511

81271LENS, LICENSE PLATE LAMP

main81271-16260iKDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)199511

main81271-95J07×2iKDN185,KZN185,RZN18#,VZN18#199511

81272GASKET, LICENSE PLATE LAMP LENS

main81272-95J07×2iKDN185,KZN185,RZN18#,VZN18#199511

8127989118WASHER, SIDE TURN SIGNAL LAMP

main81279-89118

5 parts on this diagram · 2 diagrams in section
