EMBLEM & NAME PLATE

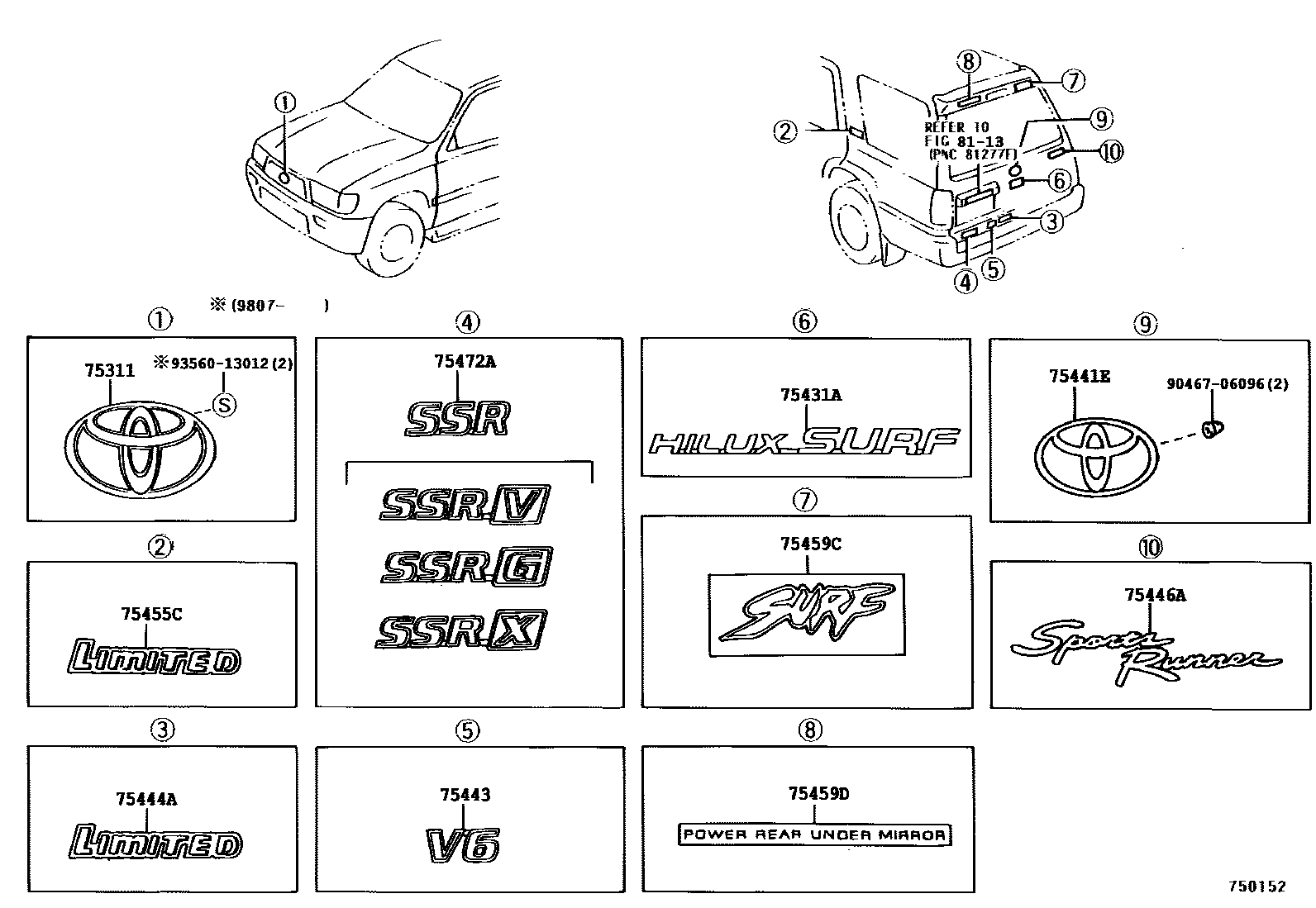

Parts diagram

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-35090i199807-200008

main75311-35140i199511-199807

main75311-60090i200008

75431AEMBLEM, BACK DOOR, NO.1

main75431-35010i199511-199807

main75444-35030i199807

75441EPLATE, BACK DOOR NAME, NO.1

main75441-35010i199807

75443PLATE, BACK DOOR NAME, NO.3

main75443-35020i199511-199807

main75443-35040i199807

75444APLATE, BACK DOOR NAME, NO.4

main75455-35010i199701-199707

main75455-35020i199801

75446APLATE, BACK DOOR NAME, NO.6

main75446-35020i199807

75455CPLATE, ROOF SIDE NAME, NO.1

main75455-35010×2i199701-199707

main75455-35020×2i199710

75459CMARK, REAR VISOR NO.1

main75459-35020i199511-199807

75459DMARK, REAR VISOR NO.2

main75459-35030-B1i199710-199807

main75459-35030-B2i199701-199707

main75459-35030-B3i199807-200008

DARK GRAY ME.,K73 ,K82

main75459-35030-B4i199807-200008

SILVER ME.,K88 ,K91 ,K93 ,K94

main75459-35030-B5i200008

DARK GRAY ME.,KG4 ,KG8 ,K72 ,K73

main75459-35030-B6i200008-200112

SILVER ME.,KG2 ,KG9

75472APLATE, REAR BODY NAME, NO.2

main75442-35030i199511-199807

main75442-35040i199511-199807

main75442-35050i199511-199807

main75442-35060i199511-199807

main75442-35090i199807-200008

main75442-35100i199807

main75442-35110i199807

main75442-35120i200008

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

9046706096

main90467-06096

9356013012

main93560-13012

13 parts on this diagram · 1 diagram in section
