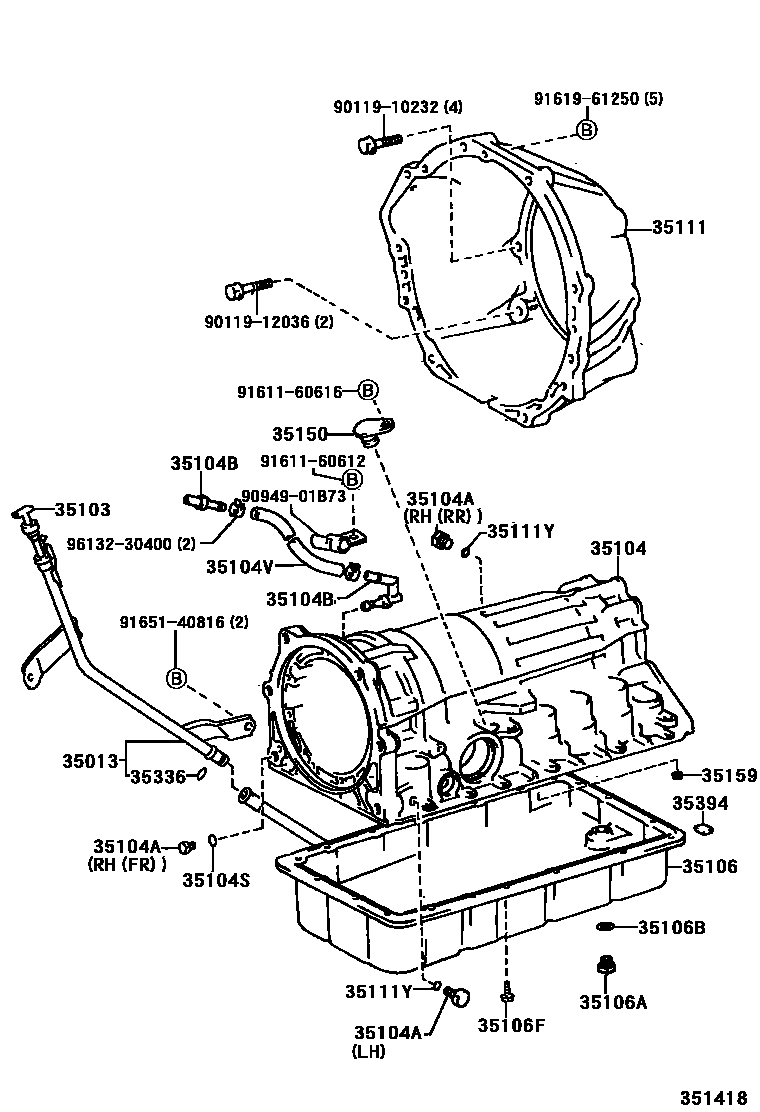

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340F 0002 1A340F 0003 1A340E 0004 1A340F 0005 1A340E 0006 1A340F

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-34030iRZN180199807-200008

main35013-34060iVZN18#199807-200008

main35013-35280iRZN185..4FC199511-199908

main35013-35300iVZN185199511-199807

main35013-35310iKZN185..4FC199511-200008

main35013-35350iRZN185..4FC199908-200008

main35013-35380iRZN180200008

main35013-35390iRZN185200008

main35013-35400iVZN185200008

main35013-60220iKDN185200008

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-34030iRZN180199807-200008

main35103-34060iVZN185199807-200008

main35103-34070iVZN180199807-200008

main35103-35230iRZN185..4FC199511-199603

main35103-35310iVZN185199511-199603

main35103-35320iKZN185..4FC199511-199603

main35103-35340iRZN185..4FC199603-200008

main35103-35360iVZN185199603-199807

main35103-35370iKZN185..4FC199603-200008

main35103-35450iKDN185200008

main35103-35460iVZN185200008

main35103-35470iRZN185200008

main35103-35480iRZN180200008

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26070iRZN180200008

main35104-35011iKZN185,RZN185,VZN185..4FC199511-200008

main35104-35030iRZN180,VZN180199807-200008

main35104-60170iRZN185,VZN185200008

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iKDN185,KZN185..4FC; RZN18#,VZN18#..4FC199511

main90341-14011iKDN185,KZN185..4FC199511

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iKZN185,RZN185..4FC199511-200008

main90930-03099iRZN180200012

main90930-03108iRZN180,VZN180199807-200008

main90930-03116iRZN185,VZN185200008

main90930-03168iKDN185200012

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-11006iKDN185,KZN185..4FC199511

35104VHOSE (FOR BREATHER PLUG)

main90445-11118iKZN185,RZN185..4FC199511-200008

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-34010iRZN180199807

main35106-34020iVZN180199807-200008

main35106-35070iRZN185..4FC199511

main35106-35110iVZN185199511

main35106-35120iKZN185..4FC199511-199601

main35106-35140iKDN185,KZN185..4FC199601

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iKZN185,RZN18#,VZN18#..4FC199511-200008

main90341-10018iRZN18#200008

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iKZN185,RZN18#,VZN18#..4FC199511-200008

main35178-50010iRZN18#,VZN185200008

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×19iKDN185,KZN185,RZN18#,VZN18#..4FC199511

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35060iVZN18#199511

main35111-35070iRZN18#..4FC199511

main35111-35090iKDN185,KZN185..4FC199511

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iKDN185,KZN185,RZN18#,VZN18#..4FC199511

35150PLUG ASSY, TRANSMISSION CASE

main35150-30010iKDN185,KZN185..4FC199807

35159GASKET, BRAKE DRUM

main35159-30010iKDN185,KZN185,RZN18#,VZN18#..4FC199511

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iKDN185,KZN185,RZN185,VZN18#..4FC199511

main90301-09173iRZN180199807

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iKZN185,RZN185,VZN185..4FC199511-200008

9011910232

main90119-10232

9011912036

main90119-12036

9094901B73

main90949-01B73

9161160612

main91611-60612

9161160616

main91611-60616

9161961250

main91619-61250

9165140816

main91651-40816

9613230400

main96132-30400

25 parts on this diagram · 6 diagrams in section
