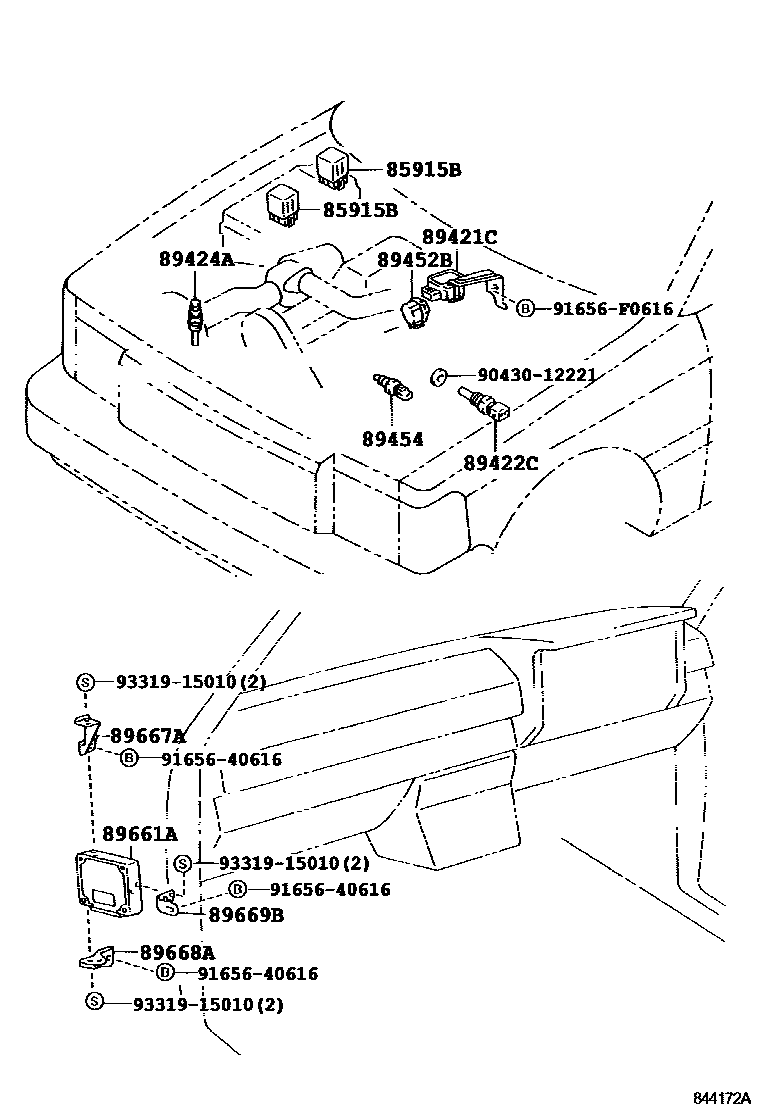

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

85915BRELAY, MAIN (FOR DIESEL TURBO)

main85915-30050×2iKZN130,LN108,112,130199008

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-35060iLN108,112,130199008-199708

main89421-60030iKZN130199308-199511

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-20010iLN100,106,107,109,131,8#199108

main89422-35010iLN108,112199508-199708

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iKZN130,LN108,112,130199008

89452BSENSOR, THROTTLE POSITION

main89452-12040iLN130199008-199308

main89452-22090iKZN130,LN108,112199308-199708

89454SENSOR, FUEL TEMPERATURE

main89454-60010iKZN130,LN108,112199308-199708

89661ACOMPUTER, ENGINE CONTROL

main89661-35480iLN108,112199508-199708

main89661-35490iLN130..4FC199008-199108

main89661-35500iLN130..5F199008-199108

main89661-35690iLN130..5F199108-199205

main89661-35691iLN130..5F199205-199308

main89661-35700iLN130..4FC199108-199205

main89661-35701iLN130..4FC199205-199308

main89661-3D090iKZN130..5F199308-199405

main89661-3D091iKZN130..5F199405-199511

main89661-3D100iKZN130..4FC199308-199511

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-35040iKZN130,LN108,112,130199008

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35060iKZN130,LN108,112,130199008

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35040iKZN130,LN108,112,130199008

9043012221

main90430-12221

9165640616

main91656-40616

91656F0616

main91656-F0616

9331915010

main93319-15010

14 parts on this diagram · 2 diagrams in section
