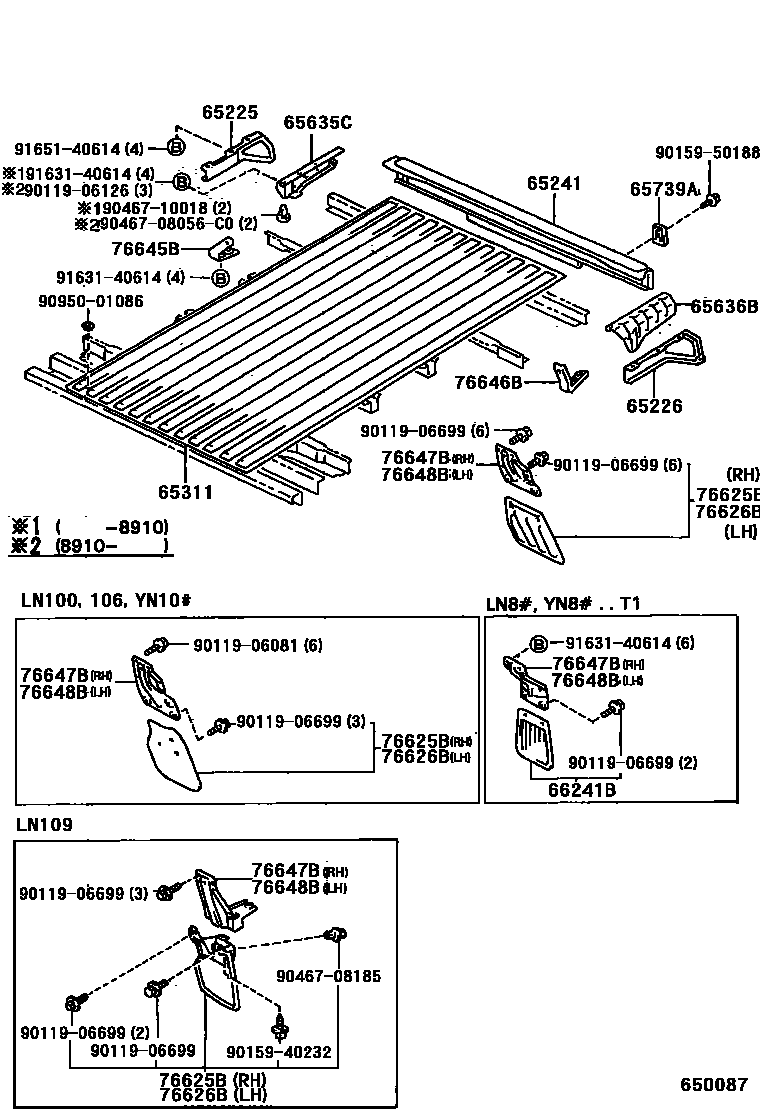

REAR BODY FLOOR & FENDER

0001 1 0002 1

65225REINFORCEMENT, FLOOR PANEL, REAR RH

main65225-89102iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

65226REINFORCEMENT, FLOOR PANEL, REAR LH

main65226-89101iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

65241SILL, REAR CROSS

main65240-89128iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

main65240-89133iLN85,86,YN85,86..T2..CBU198809

main65240-95701iLN85,86,YN85,86..T3198809

65311PANEL, FLOOR, CENTER

main65311-89127iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main65311-89128iLN100,80,81,YN100,80,81198809

main65311-89129iLN106,85,86,YN85,86..T1..CBU198809

65635CPLATE, REAR WHEEL HOUSE, REAR RH

main65635-89111iLN106,107,108,109,112,85,86,YN105,107,85,86..(T1,TW1)..CBU198809

main65635-89112iLN100,80,81,YN100,80,81198809

65636BPLATE, REAR WHEEL HOUSE, REAR LH

main65636-89110iLN106,107,108,109,112,85,86,YN105,107,85,86..(T1,TW1)..CBU198809

main65636-89111iLN100,80,81,YN100,80,81198809

65739ABUMPER, TAIL GATE

main65739-89101×2iLN100,109,112,YN100198809-199708

main65739-89103×2iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809-199708

main66303-87403×2iLN85,86,YN85,86..(T2,T3)..CBU198809-199708

66241BBAFFLE, RUBBER

main66241-39016×2iLN8#,YN8#..RCB..CBU198809

76625BMUDGUARD, REAR BODY, RH

main76607-39055iLN109,112199408

main76625-39085iLN85,86,YN85,86..TW1198809

main76625-39205iLN10#,YN10#198809-199211

main76625-39206iLN100,106,107,108,YN10#199211

76626BMUDGUARD, REAR BODY, LH

main76608-39055iLN109,112199408

main76626-39085iLN85,86,YN85,86..TW1198809

main76626-39205iLN10#,YN10#198809-199211

main76626-39206iLN100,106,107,108,YN10#199211

76645BBRACKET, REAR BODY MUDGUARD, RH

main76645-89101iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

76646BBRACKET, REAR BODY MUDGUARD, LH

main76646-89101iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

76647BSUPPORT, REAR BODY MUDGUARD, RH

main76647-35020iLN109,112199408

main76647-89105iLN8#,YN8#..T1..CBU198809

main76647-89106iLN100,106,107,108,YN10#198809

main76647-89107iLN85,86,YN85,86..TW1198809

76648BSUPPORT, REAR BODY MUDGUARD, LH

main76648-35010iLN109,112199408

main76648-89105iLN8#,YN8#..T1..CBU198809

main76648-89106iLN100,106,107,108,YN10#198809

main76648-89107iLN85,86,YN85,86..TW1198809

9011906081

main90119-06081

9011906126

main90119-06126

9011906699

main90119-06699

9015940232

main90159-40232

9015950188

main90159-50188

9046708056C0

main90467-08056C0

9046708185

main90467-08185

9046710018

main90467-10018

9095001086

main90950-01086

9163140614

main91631-40614

9165140614

main91651-40614

25 parts on this diagram · 2 diagrams in section
