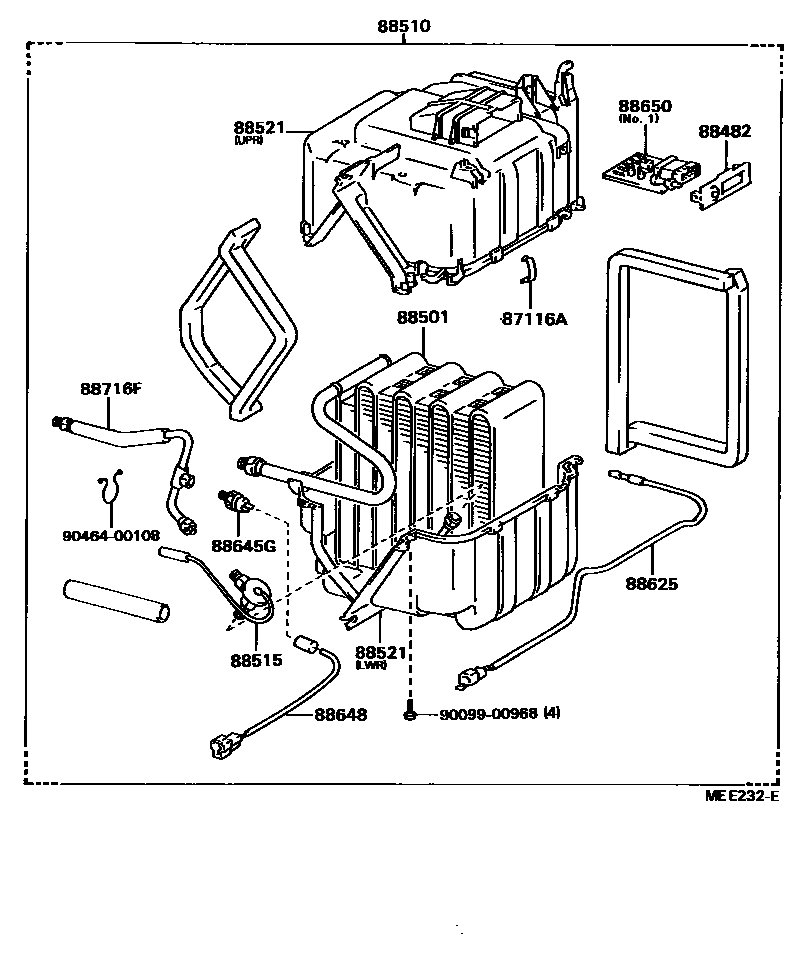

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×4iLN5#,6#,YN5#,6#198311-198903

88482CAP, COOLER

main88482-60010iLN5#,6#,YN5#,6#198311-198903

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-89107iLN5#,6#,YN5#,6#198311-198601

main88501-89110iLN5#,6#,YN5#,6#198601-198903

88510UNIT ASSY, COOLER

main88510-89116iYN5#,6#198311-198608

main88510-89117iLN5#,6#198311-198411

main88510-89128iLN60,61..V198411-198903

main88510-89130iYN61..EFI198608-198903

main88510-89131iYN5#,6#..CBR198608-198903

88515VALVE, COOLER EXPANSION

main88515-16030iLN5#,6#,YN5#,6#198311-198608

main88515-16031iYN5#,6#198608-198903

88521CASE, COOLER UNIT

main88521-89104iLN5#,6#,YN5#,6#198311-198903

UPR

main88521-89105iLN5#,6#,YN5#,6#198311-198903

LWR

88625THERMISTOR, COOLER, NO.1

main88625-89101iLN5#,6#,YN5#,6#198311-198903

88645GSWITCH, PRESSURE

main88645-10020iLN60,61..V198411-198903

main88645-12020iLN5#,60,65..SJL,T1,T3,TW198411-198808

88648WIRING, COOLER, NO.1

main88648-89118iLN60,61..V198411-198903

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-16010iYN5#,6#198311-198608

NO.1

main88650-20100iLN5#,6#198311-198903

NO.1

main88650-28020iYN61..4FC198608-198903

NO.2

main88650-89101iYN5#,6#..CBR198608-198903

NO.1

main88650-89103iYN61..EFI198608-198903

NO.1

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-89149iLN5#,6#,YN5#,6#198311-198903

9009900968

main90099-00968

9046400108

main90464-00108

13 parts on this diagram · 2 diagrams in section
