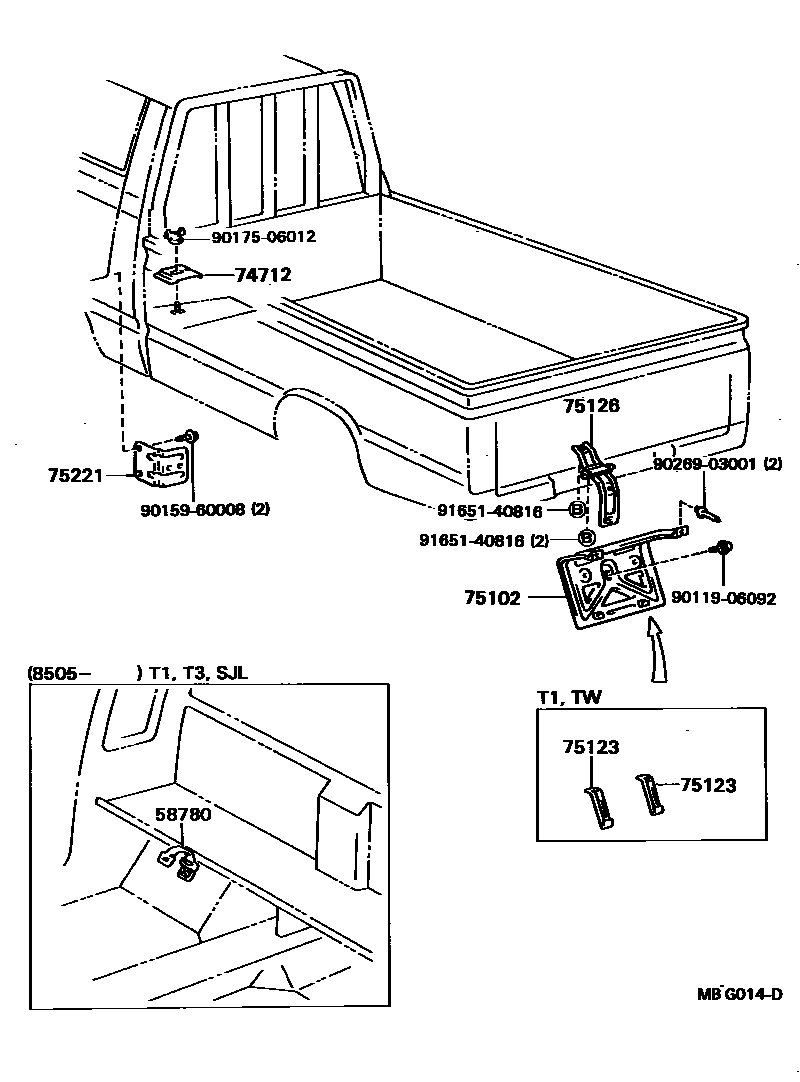

TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-89101iLN5#,60,65,YN5#,60,65..SJL,T1,T3198505-198808

74712HANGER, JACK HOLDER

main74714-89102iLN5#,6#,YN5#,6#..T1,T3,TW198311-198505

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-89115iLN55,56,YN56..SJL,T3198311-198808

75123BRACKET, LICENSE PLATE

main75122-89104×2iLN5#,60,65,YN5#,60,65..T1,T3,TW198311-198808

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-89101iLN55,56,YN56..T3198311-198808

main66407-89102iLN56,YN56..SJL198701-198808

75221BRACKET, TOOL BOX

main75221-89101iLN5#,6#,YN5#,6#..T1,T3198311-198508

9011906092

main90119-06092

9015960008

main90159-60008

9017506012

main90175-06012

9026903001

main90269-03001

9165140816

main91651-40816

11 parts on this diagram · 1 diagram in section
