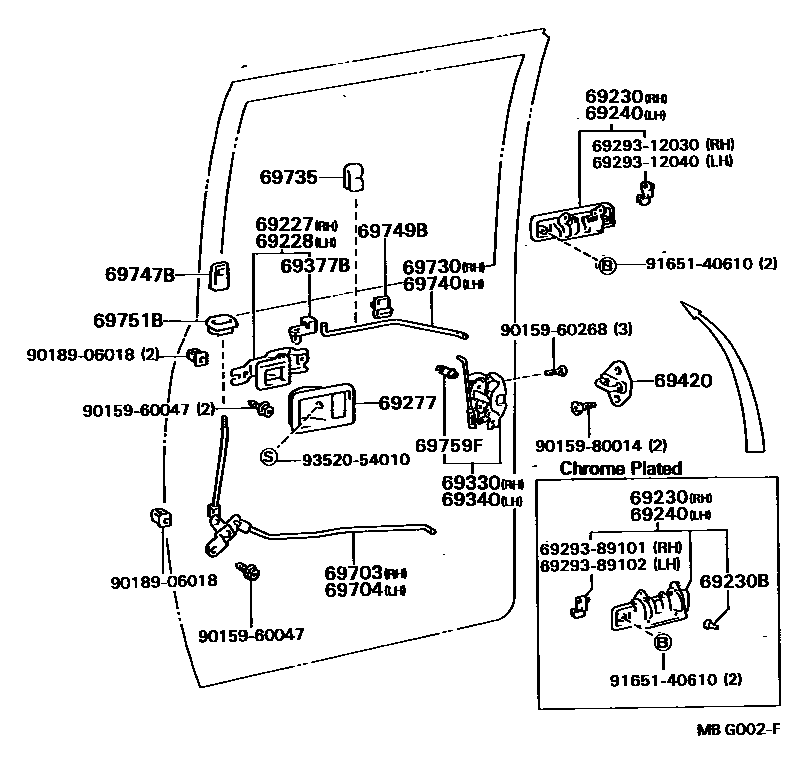

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69206-12070-06iLN55,56,65,YN56..TW198312-198608

BROWN,BROWN,TRIM4#

main69206-12070-23iLN55,56,65,YN56..TW198312-198608

GRAY,GRAY,TRIM1#

main69206-12070-24iLN55,56,65,YN56..TW198312-198608

BLUE,BLUE,TRIM8#

main69206-12070-33iLN56,65,YN56,65..TW198608-198808

GRAY,MEDIUM GRAY,TRIM1#

main69206-12070-35iLN56,65,YN56,65..TW198608-198808

BEIGE,BEIGE,TRIM4#

main69206-12070-43iLN56,65,YN56,65..TW198608-198808

BLUE,BLUE,TRIM8#

69228HANDLE, REAR DOOR INSIDE, LH

main69205-12070-06iLN55,56,65,YN56..TW198312-198608

BROWN,BROWN,TRIM4#

main69205-12070-23iLN55,56,65,YN56..TW198312-198608

GRAY,GRAY,TRIM1#

main69205-12070-24iLN55,56,65,YN56..TW198312-198608

BLUE,BLUE,TRIM8#

main69205-12070-33iLN56,65,YN56,65..TW198608-198808

GRAY,MEDIUM GRAY,TRIM1#

main69205-12070-35iLN56,65,YN56,65..TW198608-198808

BEIGE,BEIGE,TRIM4#

main69205-12070-43iLN56,65,YN56,65..TW198608-198808

BLUE,BLUE,TRIM8#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-89108iLN55,56,65,YN56,65..TW198312-198808

main69210-89109iLN65,YN65..TW198608-198808

CHROME PLATED

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021×4iLN55,65,YN56..TW198312-198401

CHROME PLATED

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-89108iLN55,56,65,YN56,65..TW198312-198808

main69220-89109iLN55,56,65,YN56..TW198312-198608

CHROME PLATED

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-89104-03×2iLN55,56,65,YN56..TW198312-198608

GRAY,GRAY,TRIM1#

main69277-89104-04×2iLN55,56,65,YN56..TW198312-198608

BLUE,BLUE,TRIM8#

main69277-89104-06×2iLN55,56,65,YN56..TW198312-198608

BROWN,BROWN,TRIM4#

main69277-89104-25×2iLN56,65,YN56,65..TW198608-198808

BEIGE,BEIGE,TRIM4#

main69277-89104-33×2iLN56,65,YN56,65..TW198608-198808

GRAY,GRAY,TRIM1#

main69277-89104-34×2iLN56,65,YN56,65..TW198608-198808

BLUE,BLUE,TRIM8#

69330LOCK ASSY, REAR DOOR, RH

main69330-89103iLN55,56,65,YN56,65..TW198312-198808

69340LOCK ASSY, REAR DOOR, LH

main69340-89103iLN55,56,65,YN56,65..TW198312-198808

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-20060iLN55,56,65,YN56,65..TW198312-198808

RH

main69759-20070iLN55,56,65,YN56,65..TW198312-198808

LH

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001×2iLN55,56,65,YN56,65..TW198312-198808

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-89103iLN55,56,65,YN56,65..TW198312-198808

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-89102iLN55,56,65,YN56,65..TW198312-198808

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-89104iLN55,56,65,YN56,65..TW198312-198808

69735SILENCER, REAR DOOR LOCK LINK

main69759-89102×2iLN55,56,65,YN56,65..TW198312-198808

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-89104iLN55,56,65,YN56,65..TW198312-198808

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-32010-14×2iLN55,65,YN56..TW198312-198411

BLUE,BLUE,TRIM8#

main69741-32010-26×2iLN55,65,YN56..TW198312-198411

BROWN,BROWN,TRIM4#

main69741-32010-33×2iLN55,65,YN56..TW198312-198411

GRAY,GRAY,TRIM1#

main69741-89102-03×2iLN56,65,YN56..TW198508-198608

GRAY,GRAY,TRIM1#

main69741-89102-04×2iLN56,65,YN56..TW198508-198608

BLUE,BLUE,TRIM8#

main69741-89102-05×2iLN56,65,YN56,65..TW198608-198808

BEIGE,BEIGE,TRIM4#

main69741-89102-06×2iLN56,65,YN56..TW198508-198608

BROWN,BROWN,TRIM4#

main69741-89102-13×2iLN56,65,YN56,65..TW198608-198808

GRAY,GRAY,TRIM1#

main69741-89102-14×2iLN56,65,YN56,65..TW198608-198808

BLUE,BLUE,TRIM8#

main69741-90K00-04×2iLN55,65,YN56..TW198411-198508

BLUE,BLUE,TRIM8#

main69741-90K00-13×2iLN55,65,YN56..TW198411-198508

GRAY,GRAY,TRIM1#

main69741-90K00-16×2iLN55,65,YN56..TW198411-198508

BROWN,BROWN,TRIM4#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20010×2iLN55,56,65,YN56,65..TW198312-198808

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-20040×2iLN55,56,65,YN56..TW198312-198608

main69751-20060-10×2iLN56,65,YN56,65..TW198608-198808

BLUE,BLUE,TRIM8#

main69751-20060-23×2iLN56,65,YN56,65..TW198608-198808

GRAY,MEDIUM GRAY,TRIM1#

main69751-20060-35×2iLN56,65,YN56,65..TW198608-198808

BEIGE,BEIGE,TRIM4#

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20040×2iLN55,56,65,YN56,65..TW198312-198808

LH,YELLOW

main69759-20050×2iLN55,56,65,YN56,65..TW198312-198808

RH,BROWN

main69759-30030×2iLN55,56,65,YN56,65..TW198312-198808

NATURAL

6929312030HANDLE, BACK DOOR

main69293-12030

6929312040HANDLE, BACK DOOR

main69293-12040

6929389101HANDLE, BACK DOOR

main69293-89101

6929389102HANDLE, BACK DOOR

main69293-89102

9015960047

main90159-60047

9015960268

main90159-60268

9015980014

main90159-80014

9018906018

main90189-06018

9165140610

main91651-40610

9352054010

main93520-54010

29 parts on this diagram · 1 diagram in section
