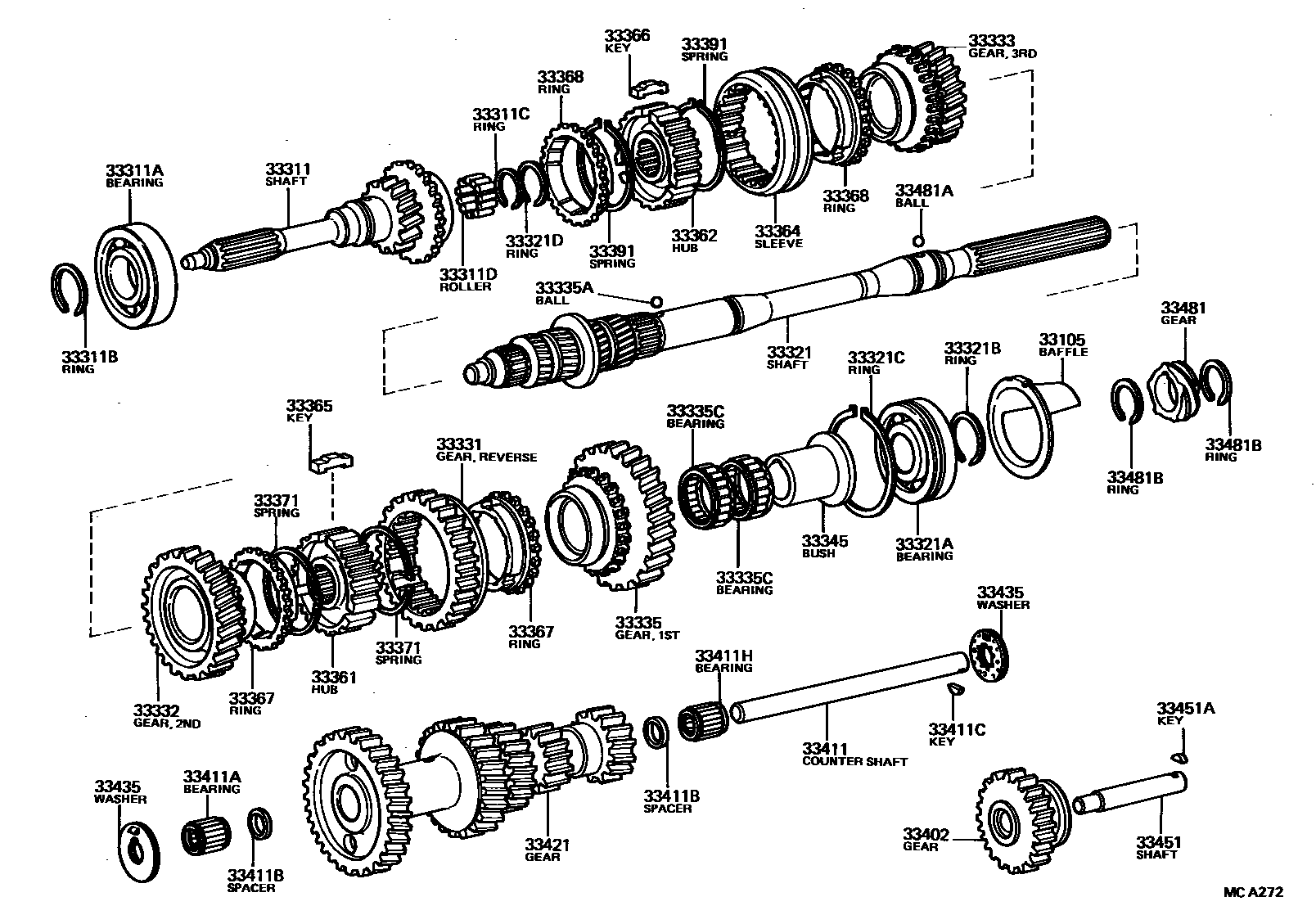

TRANSMISSION GEAR (MTM)

0001 1 0002 1LPG PACKAGE 0003 1 0004 1

33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL

main33143-26020iYN5#..4H198311-198508

33311SHAFT, INPUT

main33301-26012iYN6#..5F198801-198808

main33301-26022iYN5#198801-198808

main33301-28010iYN6#198311-198312

main33301-28011iYN6#..5F198401-198801

main33301-28021iYN5#..5H198411-198801

main33301-35060iYN61..5F198808-198903

main33311-26020iYN5#..4H198311-198508

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32016iLN55,6#,YN6#198311-198312

main90363-32024iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198401-198903

main90363-35007iLN60,61..TD198411-198903

main97163-06207iYN5#..4H198311-198508

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-30215iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-30216iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-30217iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-30218iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-30219iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-33107iLN60,61,YN5#..(4H,5F)..(CBR,TD)198311-198903

main90520-33132iLN60,61..TD198411-198903

main90520-33168iLN60,61,YN5#..(4H,5F)..(CBR,TD)198311-198903

main90520-33169iLN60,61,YN5#..(4H,5F)..(CBR,TD)198311-198903

main90520-33170iLN60,61,YN5#..(4H,5F)..(CBR,TD)198311-198903

main90520-33171iLN60,61,YN5#..(4H,5F)..(CBR,TD)198311-198903

main90520-33172iLN60,61,YN5#..(4H,5F)..(CBR,TD)198311-198903

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main90521-33006iYN5#..4H198311-198508

33311DBEARING, INPUT SHAFT

main90361-06002×13iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198401-198903

main90361-06047×14iLN55,6#,YN6#198311-198312

main90364-19043iLN60,61..TD198411-198903

33321SHAFT, OUTPUT

main33321-35071iYN5#..4H198311-198508

main33321-35091iLN55198311-198312

main33321-35092iLN5#,YN5#..5H198401-198808

main33321-35110iLN6#,YN6#198311-198312

main33321-35111iLN6#,YN6#..5F..(CBR,DSL,EFI)198401-198903

main33321-35120iLN60,61..TD198411-198903

33321ABEARING (FOR OUTPUT SHAFT REAR)

main33350-22010iLN60,61..TD198411-198903

main97183-06306iYN5#..4H198311-198508

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25003iLN60,61..TD198411-198903

main90520-25004iLN60,61..TD198411-198903

main90520-25005iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25006iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25009iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25010iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25011iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25012iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25013iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25014iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25015iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25016iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25017iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-25270iLN60,61..TD198411-198903

main90520-25271iLN60,61..TD198411-198903

main90520-25272iLN60,61..TD198411-198903

main90520-25273iLN60,61..TD198411-198903

main90520-25284iLN60,61..TD198411-198903

main90520-25285iLN60,61..TD198411-198903

main90520-28242iYN5#..4H198311-198508

main90520-28243iYN5#..4H198311-198508

main90520-28244iYN5#..4H198311-198508

main90520-28245iYN5#..4H198311-198508

main90520-28246iYN5#..4H198311-198508

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-68181iYN5#..4H198311-198508

main90520-68182iYN5#..4H198311-198508

main90520-68183iYN5#..4H198311-198508

main90520-68184iYN5#..4H198311-198508

main90520-68185iYN5#..4H198311-198508

main90520-71221iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28010iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-28011iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-28012iLN61..TD198803-198903

main90520-28013iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-28014iLN60,61..TD198411-198903

main90520-28015iLN60,61..TD198411-198903

main90520-28016iLN60,61..TD198411-198903

main90520-28017iLN60,61..TD198411-198903

main90520-28018iLN60,61..TD198411-198903

main90520-28242iYN5#..4H198311-198508

main90520-28243iYN5#..4H198311-198508

main90520-28244iYN5#..4H198311-198508

main90520-28245iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-28246iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90520-28248iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

33331GEAR, REVERSE

main33331-22030iLN60,61..TD198411-198903

main33331-26010iYN5#..4H198311-198508

main33331-28010iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

33332GEAR, 2ND

main33033-22030iLN60,61..TD198411-198903

main33033-26020iYN5#..5H198411-198805

main33033-26021iYN5#198805-198808

main33033-35010iLN5#,6#,YN6#..MTM..(CBR,DSL,EFI)198311-198805

main33033-35011iLN5#,6#,YN6#..MTM..(CBR,DSL,EFI)198805-198903

main33332-35030iYN5#..4H198311-198508

33333GEAR, 3RD

main33034-22021iLN60,61..TD198411-198903

main33034-28010iLN5#,6#,YN6#..MTM..(CBR,DSL,EFI)198311-198808

main33034-35020iYN5#..5H198411-198808

main33034-35030iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

main33333-26010iYN5#..4H198311-198508

33335GEAR, 1ST

main33032-22030iLN60,61..TD198411-198903

main33032-26010iYN5#..5H198411-198808

main33032-28010iLN5#,6#,YN6#..MTM..(CBR,DSL,EFI)198311-198801

main33032-35010iLN5#,6#,YN6#..MTM..(CBR,DSL,EFI)198801-198808

main33032-35050iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

main33335-35010iYN5#..4H198311-198508

33335ABALL, 1ST SHIFT RESTRICT

main90360-06004iYN5#..4H198311-198508

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-37050×2iYN5#..4H198311-198508

main90364-39002iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198808

main90364-39011iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

main90364-43004iLN60,61..TD198411-198903

33345BUSH, 1ST GEAR

main33345-22010iLN60,61..TD198411-198903

main33345-26011iYN5#..4H198311-198508

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-22020iLN60,61..TD198411-198903

main33361-26011iYN5#..4H198311-198504

main33361-26012iYN5#..4H198504-198508

main33361-35020iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-22020iLN60,61..TD198411-198903

main33362-28010iYN5#..4H198311-198508

main33362-35020iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198808

main33362-35040iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-22021iLN60,61..TD198411-198903

main33364-26010iYN5#..4H198311-198508

main33364-35010iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198808

main33364-35030iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-26010×3iYN5#..4H198311-198508

main33365-35020×3iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main33366-20011×3iLN60,61..TD198411-198903

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-20011×3iLN60,61..TD198411-198903

main33366-26010×3iYN5#..4H198311-198508

main33366-35020×3iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198808

main33366-35040×3iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

33367RING, SYNCHRONIZER, NO.1

main33367-22021×2iLN60,61..TD198411-198903

main33367-26022×2iYN56198311-198312

main33367-26023×2iYN5#..4H198312-198508

main33368-20012×2iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

33368RING, SYNCHRONIZER, NO.2

main33367-14010×2iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main33367-26022×2iYN56198311-198312

main33367-26023×2iYN5#..4H198312-198508

main33368-20013×2iLN60,61..TD198411-198903

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14010×2iYN5#..4H198311-198508

main33371-14031×2iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main33371-22033×2iLN60,61..TD198411-198903

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010×4iLN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI)198311-198903

main33391-22030×2iLN60,61..TD198411-198903

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-22022iLN60,61..TD198411-198511

main33402-22023iLN61..TD198511-198903

main33402-26010iYN5#..4H198311-198508

main33402-28010iLN55,6#,YN6#198311-198405

main33402-28011iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198405-198903

33411COUNTERSHAFT

main33411-30021iYN5#..4H198311-198508

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90364-19068iYN5#..4H198311-198508

main90365-25004iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL)198311-198602

main90365-25010iLN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI)198602-198903

main90365-25014iLN60,61..TD198411-198903

33411BSPACER(FOR COUNTER GEAR BEARING)

main90560-19450×2iYN5#..4H198311-198508

33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)

main90280-03005iYN5#..4H198311-198508

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-22003iLN60,61..TD198411-198903

main90364-19068iYN5#..4H198311-198508

33421GEAR, COUNTER

main33421-26071iYN6#..5F198401-198805

main33421-26072iYN6#..5F198805-198808

main33421-26081iYN5#..5H198411-198805

main33421-26082iYN5#198805-198808

main33421-27011iYN5#..4H198311-198508

main33421-28010iYN6#198311-198312

main33421-35140iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

33435WASHER, COUNTER GEAR CASE SIDE THRUST

main33441-26012iYN5#..4H198311-198508

RR,T=2.25

main33441-26022iYN5#..4H198311-198508

RR,T=2.35

main33441-26032iYN5#..4H198311-198508

RR,T=2.45

main33441-26042iYN5#..4H198311-198508

RR,T=2.55

main33441-26052iYN5#..4H198311-198508

RR,T=2.65

main33441-26061iYN5#..4H198311-198508

FR,T=2.21

33451SHAFT, REVERSE IDLER GEAR

main33451-22021iLN60,61..TD198411-198903

main33451-28010iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main33451-30020iYN5#..4H198311-198508

33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)

main90280-03005iYN5#..4H198311-198508

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-22010iLN5#..5H198311-198808

main33481-25020iYN5#..4H198311-198508

main33481-30040iYN5#..5H198411-198808

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90360-06004iLN5#,YN5#..MTM198311-198808

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26179×2iLN5#,YN5#..5H198311-198808

main90520-28009×2iYN5#..4H198311-198508

40 parts on this diagram · 4 diagrams in section
