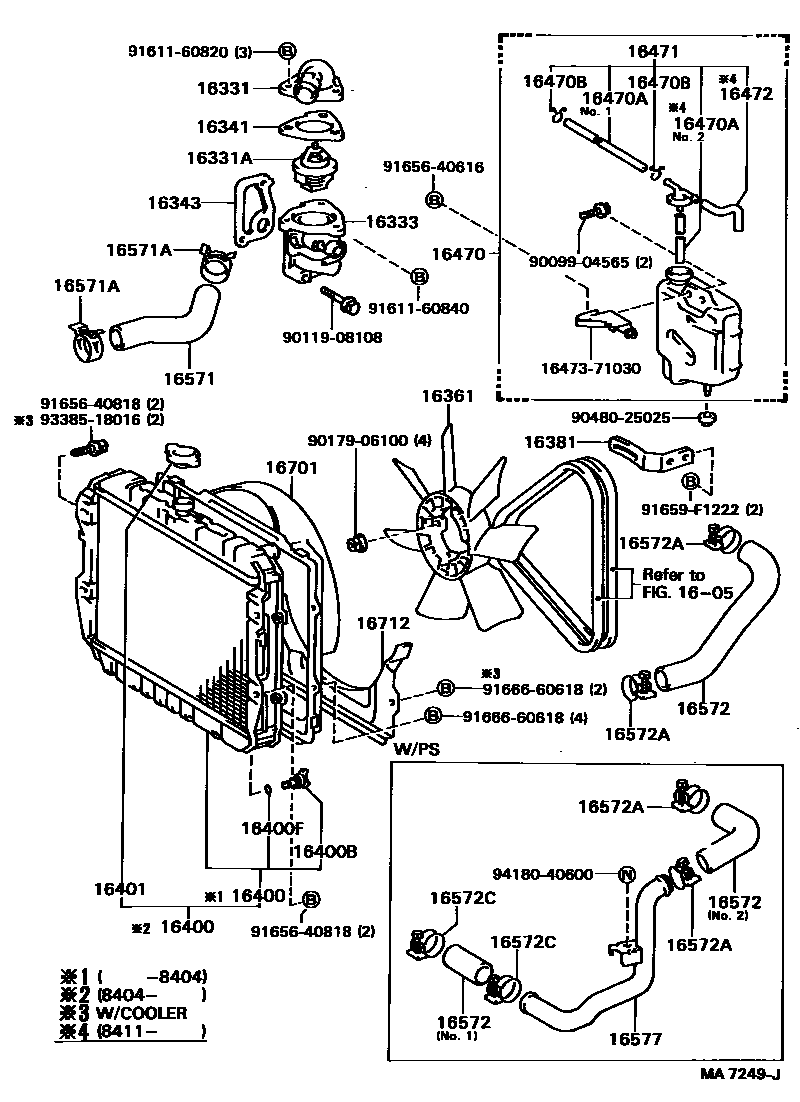

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

16331OUTLET, WATER

main16331-54030iL,2L..LN5#,6#198311-198903

main16331-54080i2LT..LN60,61198411-198511

main16331-54081i2LT..LN61198511-198903

main16331-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main16331-73010i3YEU..YN61198608-198903

16331ATHERMOSTAT

main90916-03046i2YJ,3YJ..YN5#,6#198311-198502

main90916-03062iL,2L#..LN5#,6#198311-198805

main90916-03069i2YJ..YN56..LPG198502-198808

main90916-03072i2L#..LN5#,6#198805-198903

16333HOUSING, WATER OUTLET

main16333-54050iL,2L..LN5#,6#198311-198903

main16333-54060i2LT..LN60,61198411-198511

main16333-54061i2LT..LN61198511-198903

16341GASKET, WATER OUTLET

main16341-35010i2LT..LN60,61198411-198903

main16341-54011iL,2L..LN5#,6#198311-198808

main16341-54030i2L..LN61198808-198903

main16341-71010i2YJ,3Y#..YN5#,6#198311-198903

16343GASKET, WATER OUTLET HOUSING

main16343-54011iL,2L..LN5#,6#198311-198903

main16343-54020i2LT..LN60,61198411-198511

main16343-54021i2LT..LN61198511-198903

16361FAN

main16361-38010i2YJ,3Y#..YN5#,6#; L..LN50,55198311-198903

main16361-54010i2L#..LN56,6#198311-198508

main16361-54020i2L#..LN5#,6#198508-198903

16381BAR, FAN BELT ADJUSTING

main16381-54011iL,2L#..LN5#,6#198311-198903

main16381-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main16381-73011i3YEU..YN61198608-198903

16400RADIATOR ASSY

main16400-54240iL..LN50,55198404-198508

main16400-54250i2L..LN56198404-198508

main16400-54251i2L..LN56..4FC198508-198808

main16400-54260i2L..LN6#..T1,TW198404-198411

main16400-54270i2L..LN6#..T1,TW198404-198411

W/PS

main16400-54340i2L..LN6#198411-198508

main16400-54380i2L..LN60..V198405-198411

main16400-54390i2L..LN60..V198405-198411

W/PS

main16400-54391i2L..LN6#198608-198903

W/PS

main16400-54430i2LT..LN60,61198411-198608

main16400-54440i2LT..LN60,61198411-198903

W/PS

main16400-54530i2L..LN5#..5H198508-198808

main16400-54540i2L..LN6#198508-198903

main16400-71070i2YJ..YN5#198404-198508

main16400-71071i2YJ..YN5#198508-198808

main16400-71080i3YJ..YN6#198404-198508

main16400-71081i2YJ..YN56..LPG198611-198808

LPG PACKAGE,3YP

main16400-73200i3YEU..YN61..5F198608-198903

main16400-73250i3YEU..YN61..4FC198608-198903

main16410-54240iL..LN55198311-198404

main16410-54250i2L..LN56198311-198404

main16410-54260i2L..LN6#198311-198404

main16410-54270i2L..LN6#198311-198404

W/PS

main16410-71040i2YJ..YN56198311-198404

main16410-71050i3YJ..YN6#198311-198404

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96711-19007i2YJ,3Y#..YN5#,6#; L,2L#..LN5#,6#198311-198903

16401CAP SUB-ASSY, RADIATOR

main16401-36011i2YJ,3YJ..YN5#,6#; L,2L..LN5#,6#198311-198508

main16401-63010i2L..LN5#,6#; 2YJ,3Y#..YN5#,6#198508-198903

16470TANK ASSY, RADIATOR RESERVE

main16470-54060iL,2L..LN5#,6#198311-198508

main16470-54110i2LT..LN60198411-198506

main16470-54111i2LT..LN60,61198506-198903

main16470-71030i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12049iL,2L..LN5#,6#198311-198411

NO.1

main90445-12078i2YJ,3Y#..YN5#,6#; L,2L#..LN5#,6#198411-198903

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

16471CAP SUB-ASSY, RESERVE TANK

main16405-54070iL,2L..LN5#,6#198311-198508

main16405-54140i2LT..LN60,61198506-198903

main16405-71010i2LT..LN60198411-198506

16472HOSE, BREATHER

main85338-71030i2YJ,3Y#..YN5#,6#; L,2L#..LN5#,6#198411-198903

16571HOSE, RADIATOR, INLET

main16571-54130iL,2L..LN5#,6#198311-198903

main16571-54210i2LT..LN60,61198411-198903

main16571-71030i2YJ,3Y#..YN5#,6#198311-198903

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001×2i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main90467-37003×2i2L#..LN61; 3Y#..YN61198901-198903

16572HOSE, RADIATOR, OUTLET

main16572-54100iL,2L..LN5#198311-198808

main16572-54120i2L#..LN6#198311-198903

main16572-54130i2L#..LN6#198311-198903

W/PS,NO.2

main16572-71030i2YJ..YN56..LPG198411-198506

LPG PACKAGE,3YP

main16572-71031i2YJ..YN56..LPG198506-198808

LPG PACKAGE,3YP

main16573-54060i2L#..LN6#198311-198903

W/PS,NO.1

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001×2i2YJ,3Y#..YN5#,6#198311-198901

TYPE A

main90467-37002i2YJ..YN56..LPG198611-198808

LPG PACKAGE,TYPE B,3YP

main90467-37003×2i3Y#..YN61198901-198903

TYPE A

main90467-38001i2L#..LN61198808-198903

RADIATOR SIDE

main96111-10460iL,2L#..LN5#,6#198311-198808

RADIATOR SIDE

main96111-10500iL,2L#..LN5#,6#198311-198903

WATER PUMP SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90467-38001×2i2L#..LN61198808-198903

W/PS

main96111-10460×2i2L#..LN6#198311-198808

W/PS

16577PIPE, RADIATOR, NO.7

main16577-54080i2L#..LN6#198311-198903

W/PS

16701SHROUD SUB-ASSY, FAN

main16711-54110iL,2L..LN5#198311-198808

main16711-54120i2L#..LN6#198311-198903

main16711-71030i2YJ,3Y#..YN5#,6#198311-198903

16712SHROUD, FAN, NO.2

main16712-54050i2YJ,3Y#..YN5#,6#198311-198903

W/COOLER

main16712-54080iL,2L..LN5#198311-198808

W/COOLER

main16712-54090i2L#..LN6#198311-198903

W/COOLER

1647371030SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-71030

9009904565

main90099-04565

9011908108

main90119-08108

9017906100

main90179-06100

9048025025

main90480-25025

9161160820

main91611-60820

9161160840

main91611-60840

9165640616

main91656-40616

9165640818

main91656-40818

91659F1222

main91659-F1222

9166660618

main91666-60618

9338518016

main93385-18016

9418040600

main94180-40600

38 parts on this diagram · 4 diagrams in section
