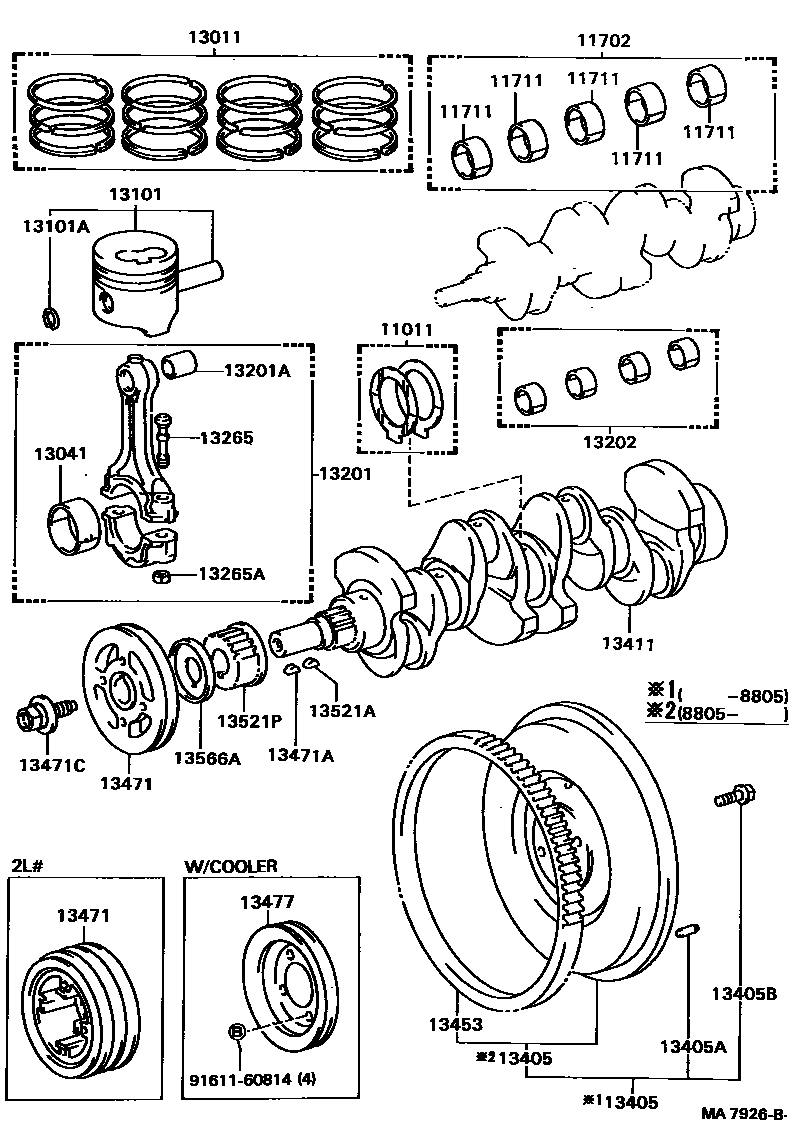

CRANKSHAFT & PISTON

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-25010i198311-198903
main11011-25010i198411-198808
main11011-54010i198311-198808
main11011-54020i198808-198903
main11012-54010i198311-198808
main11012-54020i198808-198903
main11013-54010i198311-198808
main11013-54020i198808-198903
11702BEARING SET, CRANKSHAFT
main11704-54060i198311-198803
main11704-54061i198803-198903
main11704-71020i198603-198903
main11705-54060i198311-198803
main11705-54061i198803-198903
11711BEARING, CRANKSHAFT
main11701-54060-01i198311-198803
MARK"1",MARK 1
main11701-54060-02i198311-198803
MARK"2",MARK 2
main11701-54060-03i198311-198803
MARK"3",MARK 3
main11701-54061-01i198803-198903
MARK"1",MARK 1
main11701-54061-02i198803-198903
MARK"2",MARK 2
main11701-54061-03i198803-198903
MARK"3",MARK 3
main11701-71020-01i198311-198903
MARK"1",MARK 1
main11701-71020-01i198411-198808
MARK"1",LPG PACKAGE,3YP,MARK 1
main11701-71020-02i198311-198903
MARK"2",MARK 2
main11701-71020-02i198411-198808
MARK"2",LPG PACKAGE,3YP,MARK 2
main11701-71020-03i198411-198808
MARK"3",LPG PACKAGE,3YP,MARK 3
main11701-71020-03i198311-198903
MARK"3",MARK 3
13011RING SET, PISTON
main13011-54041i198311-198405
STD
main13011-54042i198405-198508
STD
main13011-54060i198311-198509
main13011-54061i198509-198710
main13011-54062i198710-198903
main13011-71020i198311-198702
main13011-71021i198702-198903
main13011-71030i198508-198702
main13011-71031i198702-198707
main13011-71060i198707-198808
main13011-72020i198411-198508
STD,LPG PACKAGE,3YP
main13013-54041i198311-198405
O/S 0.50
main13013-54042i198405-198508
O/S 0.50
main13013-54060i198311-198509
O/S 0.50
main13013-54061i198509-198710
main13013-54062i198710-198903
main13013-71020i198311-198702
main13013-71021i198702-198903
main13013-71030i198508-198702
main13013-71031i198702-198707
main13013-71060i198707-198808
main13013-72020i198411-198508
O/S 0.50,LPG PACKAGE,3YP
main13014-71020i198311-198702
main13014-71021i198702-198903
main13014-71030i198508-198702
O/S 0.75,LPG PACKAGE,3YP
main13014-71031i198702-198707
main13014-71060i198707-198808
main13014-72020i198411-198508
O/S 0.75,LPG PACKAGE,3YP
main13015-71020i198311-198702
main13015-71021i198702-198903
main13015-71030i198508-198702
main13015-71031i198702-198707
main13015-71060i198707-198808
main13015-72020i198411-198508
O/S 1.00,LPG PACKAGE,3YP
13041BEARING, CONNECTING ROD
main13041-54013-01i198311-198808
MARK"1",MARK 1
main13041-54013-02i198311-198808
MARK"2",MARK 2
main13041-54013-03i198311-198808
MARK"3",MARK 3
main13041-54024-01i198808-198903
MARK"1",MARK 1
main13041-54024-02i198808-198903
MARK"2",MARK 2
main13041-54024-03i198808-198903
MARK"3",MARK 3
main13041-54040-01i198411-198803
MARK"1",MARK 1
main13041-54040-02i198411-198803
MARK"2",MARK 2
main13041-54040-03i198411-198803
MARK"3",MARK 3
main13041-54041-01i198803-198903
MARK"1",MARK 1
main13041-54041-02i198803-198903
MARK"2",MARK 2
main13041-54041-03i198803-198903
MARK"3",MARK 3
main13041-71011-06i198808-198903
MARK"6",MARK 6
main13041-71011-07i198808-198903
MARK"7",MARK 7
main13041-71011-08i198808-198903
MARK"8",MARK 8
main13041-71021-06i198411-198808
MARK"6",LPG PACKAGE,3YP,MARK 6
main13041-71021-06i198311-198808
MARK"6",MARK 6
main13041-71021-07i198411-198808
MARK"7",LPG PACKAGE,3YP,MARK 7
main13041-71021-07i198311-198808
MARK"7",MARK 7
main13041-71021-08i198411-198808
MARK"8",LPG PACKAGE,3YP,MARK 8
main13041-71021-08i198311-198808
MARK"8",MARK 8
13101PISTON SUB-ASSY, W/PIN
main13101-54030i198411-198801
main13101-54030-01i198801-198903
main13101-54030-02i198801-198903
main13101-54030-03i198801-198903
main13101-54040i198311-198508
STD
main13101-54060i198311-198801
main13101-54060-01i198801-198903
main13101-54060-02i198801-198903
main13101-54060-03i198801-198903
main13101-72010i198311-198802
main13101-72010-01i198802-198808
main13101-72010-02i198802-198808
main13101-72010-03i198802-198808
main13101-73010i198411-198802
main13101-73010i198802-198808
main13101-73010i198311-198802
main13101-73010-01i198802-198903
main13101-73010-02i198802-198808
main13101-73010-02i198802-198903
main13101-73010-03i198802-198808
main13101-73010-03i198802-198903
main13103-54030i198411-198903
main13103-54040i198311-198508
O/S 0.50
main13103-54060i198311-198903
main13103-72010i198311-198808
main13103-73010i198311-198903
main13103-73010i198411-198808
main13104-72010i198311-198808
main13104-73010i198311-198903
main13104-73010i198411-198808
main13105-72010i198311-198808
main13105-73010i198411-198808
main13105-73010i198311-198903
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-29003i198311-198903
main90521-31001i198411-198903
13201ROD SUB-ASSY, CONNECTING
main13201-59016i198311-198807
main13201-59017i198807-198903
main13201-59026i198411-198807
main13201-59027i198807-198903
main13201-71011i198311-198808
main13201-79045i198311-198903
main13201-79045i198411-198808
LPG PACKAGE,3YP
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73083i198311-198807
main90999-73094i198411-198807
main90999-73117i198807-198903
main90999-73118i198807-198903
13202BEARING SET, CONNECTING ROD
main13204-54013i198311-198808
main13204-54024i198808-198903
main13204-54040i198411-198803
main13204-54041i198803-198903
main13204-71021i198603-198903
main13205-54013i198311-198808
main13205-54024i198808-198903
main13205-54040i198411-198803
main13205-54041i198803-198903
13265BOLT, CONNECTING ROD
main13265-29025i198411-198808
LPG PACKAGE,3YP
main13265-29025i198311-198903
main13265-54011i198311-198807
main13265-54020i198807-198903
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198411-198808
LPG PACKAGE,3YP
main90170-09001i198311-198903
main90170-10005i198311-198807
main90179-10123i198807-198903
13405FLYWHEEL SUB-ASSY
main13405-54060i198805-198903
main13405-59035i198311-198508
main13405-59066i198311-198805
main13405-79055i198311-198808
main13405-79065i198311-198903
main13405-79065i198411-198808
LPG PACKAGE,3YP
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198311-198903
main90250-08054i198411-198808
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198411-198808
LPG PACKAGE,3YP
main90105-10042i198311-198903
main90105-12011i198311-198501
main90105-12109i198501-198903
13411CRANKSHAFT
main13401-54013i198311-198508
main13401-54021i198411-198805
main13401-54023i198805-198903
main13401-54030i198311-198805
main13401-54031i198805-198903
main13411-72010i198311-198808
main13411-73010i198411-198808
LPG PACKAGE,3YP
main13411-73010i198311-198903
13453GEAR, FLYWHEEL RING
main13453-20010i198311-198903
N=115
main13453-20010i198411-198808
LPG PACKAGE,3YP
main13453-54010i198311-198903
13471PULLEY, CRANKSHAFT
main13408-54020i198311-198903
main13408-71010i198411-198808
LPG PACKAGE,3YP
main13408-71010i198311-198903
main13408-73010i198608-198903
main13471-54011i198311-198508
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05010i198311-198609
main90280-05010i198411-198609
LPG PACKAGE,3YP
main95161-10519i198609-198808
LPG PACKAGE,3YP
main95161-10519i198609-198903
main95161-20622i198311-198903
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-14013i198311-198901
main90105-14013i198411-198808
LPG PACKAGE,3YP
main90105-14069i198901-198903
main90119-14005i198311-198903
*14-1.5PX40-31
13477PULLEY, CRANKSHAFT, NO.2
main88451-20110i198311-198903
main88451-35010i198311-198508
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-33010i198411-198808
LPG PACKAGE,3YP
main13521-33010i198311-198903
N=18
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05010i198411-198609
LPG PACKAGE,3YP
main90280-05010i198311-198609
main95161-10519i198609-198903
main95161-10519i198609-198808
LPG PACKAGE,3YP
main95161-20622i198311-198903
13521PPULLEY, CRANKSHAFT TIMING
main13521-54020i198311-198903
13566AGUIDE, TIMING BELT
main13566-54010i198311-198808
main13566-54040i198808-198903
9161160814
main91611-60814
