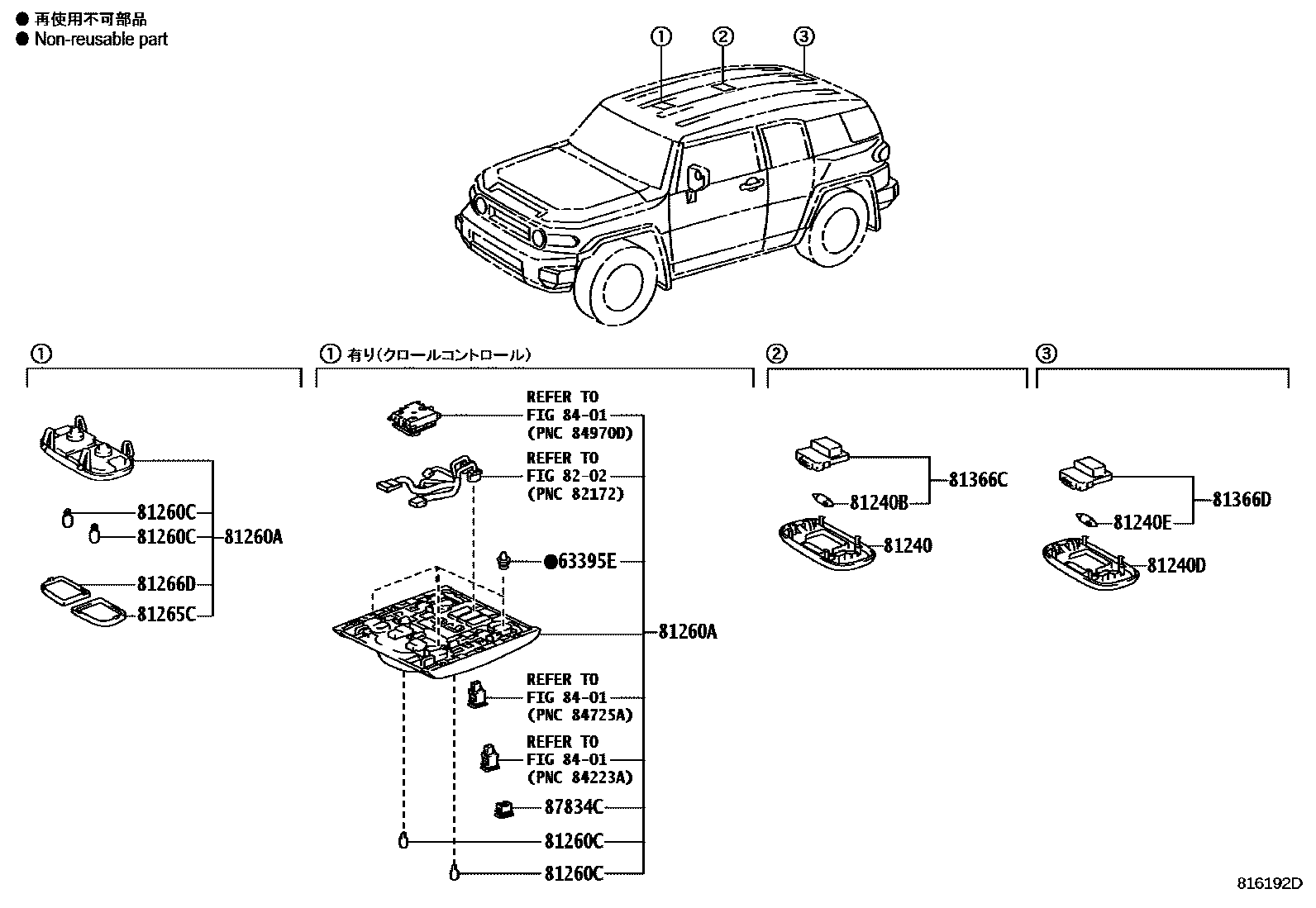

Toyota 105110 — INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

81240LAMP ASSY, ROOM, NO.1

90981-14011

81240-52040

81240BBULB, ROOM LAMP, NO.1

81240DLAMP ASSY, ROOM, NO.2

81240EBULB, ROOM LAMP, NO.2

81260ALAMP ASSY, MAP

81260CBULB(FOR MAP LAMP)

81265CLENS, MAP LAMP, NO.1

81266DLENS, MAP LAMP, NO.2

81366CBASE, ROOM LAMP SWITCH

81366DBASE, LUGGAGE LAMP SWITCH

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87834CCOVER, MAP LAMP

14 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota 105110

This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota 105110. Key components include: CLIP(FOR MAP LAMP), LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
