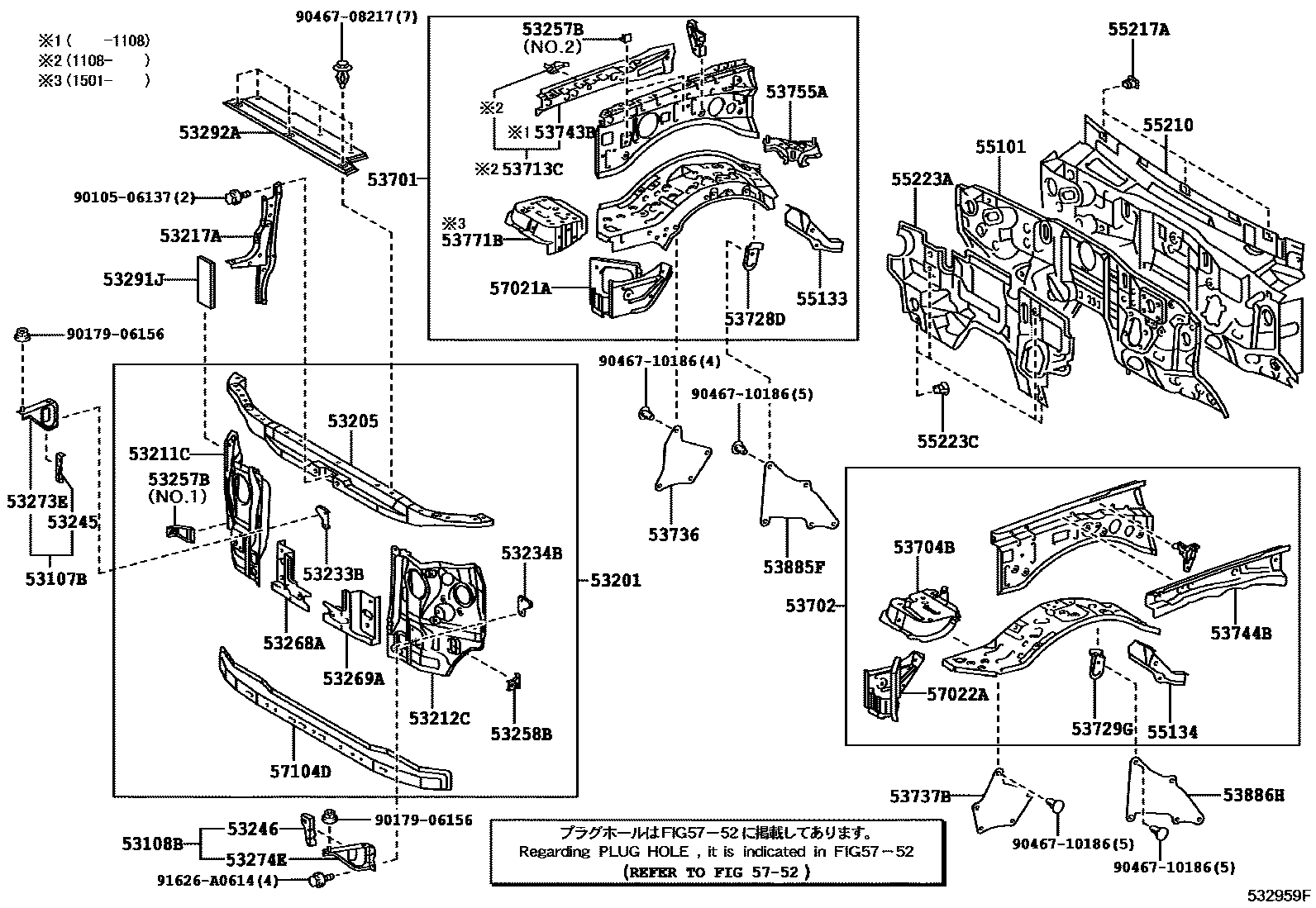

FRONT FENDER APRON & DASH PANEL

53107BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH

main53107-35030iGSJ15201011-201801

53108BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH

main53108-35030iGSJ15201011-201801

53201SUPPORT SUB-ASSY, RADIATOR

main53201-35241iGSJ15201011-201801

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-35031iGSJ15201011-201801

53211CSUPPORT, RADIATOR, RH

main53211-35181iGSJ15201011-201801

53212CSUPPORT, RADIATOR, LH

main53212-35120iGSJ15201011-201401

main53212-35121iGSJ15201402-201801

53217ABRACE, HOOD LOCK SUPPORT

main53209-35030iGSJ15201011-201801

53233BBRACKET, HEADLAMP, INNER RH

main53233-35010iGSJ15201011-201801

53234BBRACKET, HEADLAMP, INNER LH

main53234-35010iGSJ15201011-201801

53245BRACKET, HEADLAMP, RH

main53245-35030iGSJ15201011-201801

53246BRACKET, HEADLAMP, LH

main53246-35020iGSJ15201011-201801

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030×2iGSJ15201011-201801

main53257-35060iGSJ15201011-201801

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-35010iGSJ15201011-201801

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-35040iGSJ15201011-201801

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-35040iGSJ15201011-201801

53273EBRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-35090iGSJ15201011-201801

53274EBRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-35070iGSJ15201011-201801

53291JSEAL, RADIATOR SUPPORT

main53291-35010iGSJ15201011-201801

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-35020iGSJ15201011-201801

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-35A50iGSJ15201011-201108

main53701-35A60iGSJ15201108-201412

main53701-35A61iGSJ15201501-201801

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-35A11iGSJ15201011-201412

main53702-35A12iGSJ15201501-201801

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-35082iGSJ15201011-201501

main53704-60050iGSJ15201501-201706

main53704-60060iGSJ15201706-201801

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53707-35030iGSJ15201108-201801

53728DBRACKET, FENDER APRON, RH

main53728-35060iGSJ15201011-201801

53729GBRACKET, FENDER APRON, LH

main53728-35060iGSJ15201011-201801

53736SEAL, FRONT FENDER APRON, RH

main53735-35150iGSJ15201011-201801

53737BSEAL, FRONT FENDER APRON, LH

main53736-35150iGSJ15201011-201801

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-35040iGSJ15201011-201801

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-35030iGSJ15201011-201801

53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-60010iGSJ15201011-201801

53771BSUPPORT, BATTERY CARRIER, RH

main53703-60061iGSJ15201501-201706

main53703-60080iGSJ15201706-201801

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53886-60030iGSJ15201011-201801

53886HSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-60030iGSJ15201011-201801

55101PANEL SUB-ASSY, DASH

main55101-35A50iGSJ15201011-201801

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-60060iGSJ15201011-201801

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-60070iGSJ15201011-201801

55210INSULATOR ASSY, DASH PANEL

main55210-35400iGSJ15201011-201801

55217ARETAINER, DASH PANEL SILENCER

main55217-35020×3iGSJ15201011-201801

55223AINSULATOR, DASH PANEL, OUTER

main55223-35084iGSJ15201011-201801

55223CCLIP

main90467-06169×4iGSJ15201011-201012

main90467-06206-C0×4iGSJ15201101-201801

BLACK

57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-35060iGSJ15201011-201801

57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-35050iGSJ15201011-201801

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-35061iGSJ15201011-201801

5752HOLE PLUG

→ Go to FIG 57-52

9010506137

main90105-06137

9017906156

main90179-06156

9046708217

main90467-08217

9046710186

main90467-10186

91626A0614

main91626-A0614

49 parts on this diagram · 1 diagram in section
