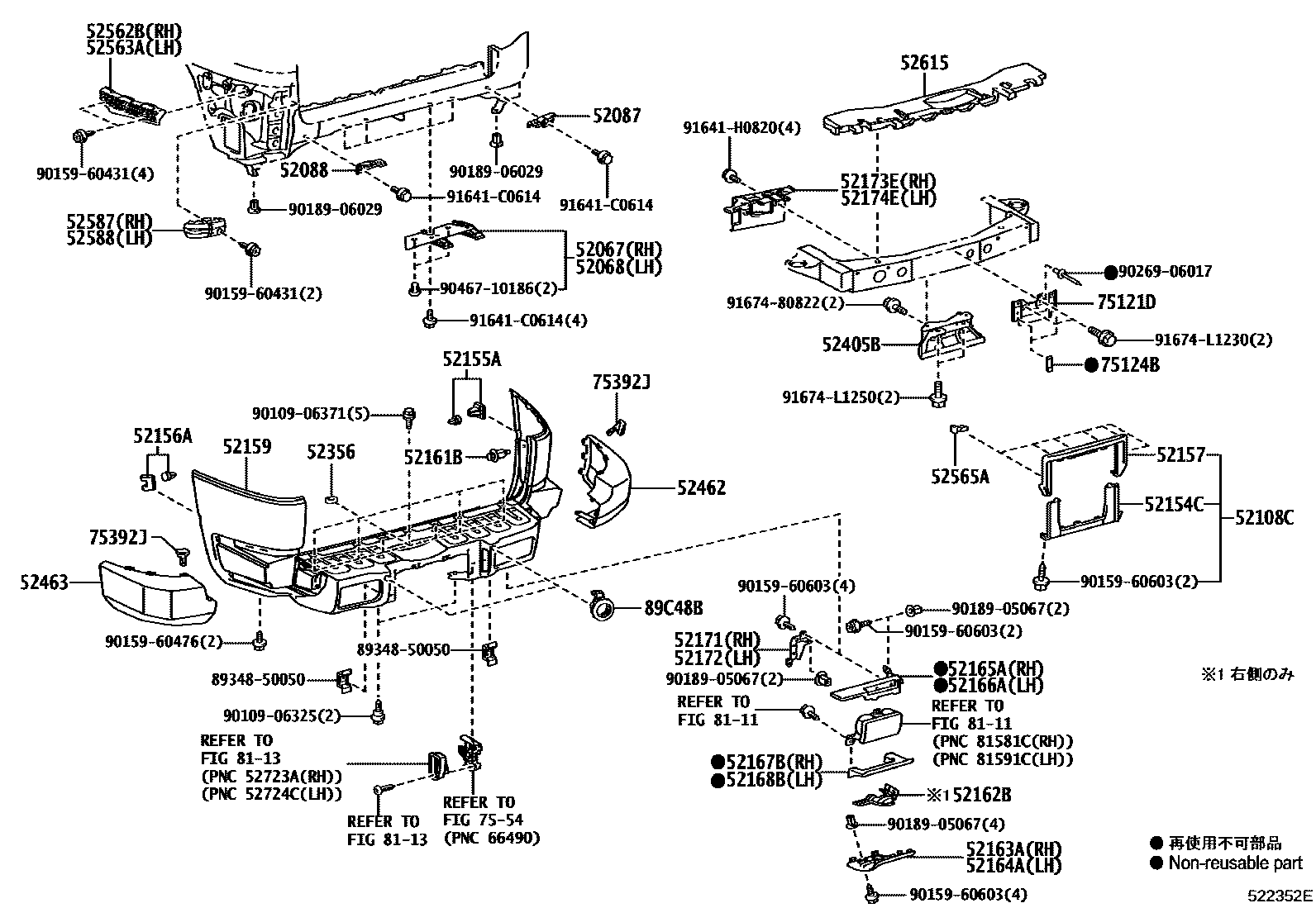

REAR BUMPER & BUMPER STAY

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52067-35020supersedes 52067-35021iGSJ15201112-201201

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52068-35020supersedes 52068-35021iGSJ15201112-201201

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52151-35130iGSJ15201011-201108

main52151-35131iGSJ15201109-201801

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52152-35140iGSJ15201011-201108

main52152-35141iGSJ15201109-201801

52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER

main52108-35020supersedes 52108-35021iGSJ15201112-201201

52154CSUPPORT, REAR BUMPER, NO.1

main52158-35030iGSJ15201011-201201

main52158-35031iGSJ15201201-201801

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-35030iGSJ15201011-201801

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-35030iGSJ15201011-201801

52157SUPPORT, REAR BUMPER SIDE, NO.2

main52157-35020iGSJ15201011-201201

main52157-35021iGSJ15201201-201801

52159COVER, REAR BUMPER

main52159-35380iGSJ15201011-201801

52161BPIECE, REAR BUMPER

main52161-16010iGSJ15201011-201801

52162BPLATE, REAR BUMPER, NO.1

main52162-35020supersedes 52162-35021iGSJ15201112-201201

52163APLATE, REAR BUMPER, RH

main52163-35041supersedes 52163-35042iGSJ15201112-201201

52164APLATE, REAR BUMPER, LH

main52164-35040supersedes 52164-35041iGSJ15201112-201201

52165ACOVER, REAR BUMPER, UPR RH

main52165-35021iGSJ15201011-201801

52166ACOVER, REAR BUMPER, UPR LH

main52166-35021iGSJ15201011-201801

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-35020iGSJ15201011-201801

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-35020iGSJ15201011-201801

52171RETAINER, REAR BUMPER SIDE, RH

main52177-35060iGSJ15201011-201801

52172RETAINER, REAR BUMPER SIDE, LH

main52178-35030iGSJ15201011-201801

52173EBRACKET, REAR BUMPER BAR, RH

main52173-35080iGSJ15201011-201801

52174EBRACKET, REAR BUMPER BAR, LH

main52174-35080supersedes 52174-35081iGSJ15201112-201201

52356CUSHION, REAR BUMPER STEP

main52356-60050×7iGSJ15201011-201801

52405BGUARD SUB-ASSY, REAR BUMPER

main52405-35020iGSJ15201011-201801

52462PAD, REAR BUMPER, RH

main52462-35030supersedes 52462-35021iGSJ15201112-201801

52463PAD, REAR BUMPER, LH

main52463-35030supersedes 52463-35021iGSJ15201112-201801

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-35030iGSJ15201011-201801

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-35030iGSJ15201011-201801

52565ARETAINER, REAR BUMPER, LOWER

main52535-28020×6iGSJ15201011-201801

52587RETAINER, REAR BUMPER END, RH

main52587-35030iGSJ15201011-201801

52588RETAINER, REAR BUMPER END, LH

main52588-35030iGSJ15201011-201801

52615ABSORBER, REAR BUMPER ENERGY

main52615-35070iGSJ15201011-201106

main52615-35071iGSJ15201107-201801

75121DBRACKET, REAR LICENSE PLATE

main75121-35080iGSJ15201011-201801

75124BBRACKET, REAR LICENSE PLATE SUPPORT

main75124-35020×2iGSJ15201011-201801

75392JRETAINER, OUTSIDE MOULDING

main75392-35220×10iGSJ15201011-201801

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-33030-C0×2iGSJ15201011-201801

DUMMY-MAT BLACK

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050

9010906325

main90109-06325

9010906371

main90109-06371

9015960431

main90159-60431

9015960476

main90159-60476

9015960603

main90159-60603

9018905067

main90189-05067

9018906029

main90189-06029

9026906017

main90269-06017

9046710186

main90467-10186

91641C0614

main91641-C0614

91641H0820

main91641-H0820

9167480822

main91674-80822

91674L1230

main91674-L1230

91674L1250

main91674-L1250

54 parts on this diagram · 1 diagram in section
